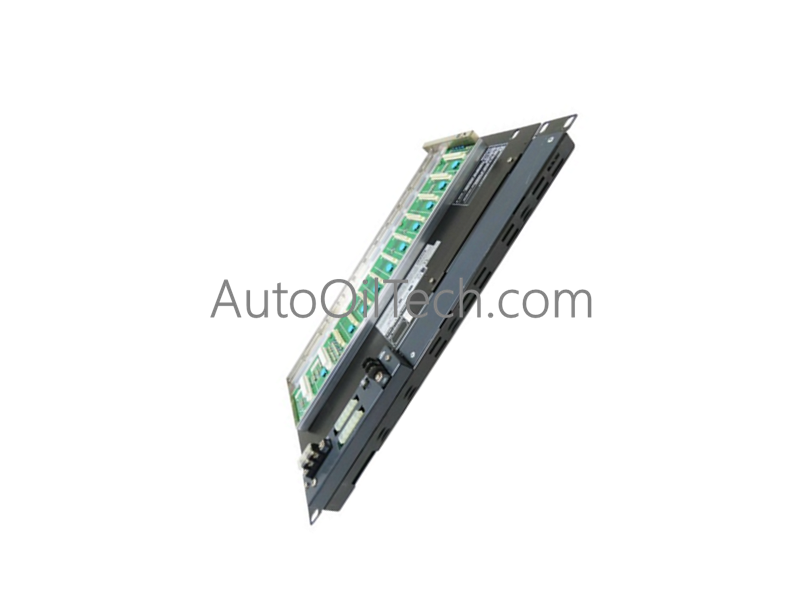

Yokogawa ANB11D-425/BU2A CENTUM VP ESB Bus Node Units

Configured for high-speed optical field bus extension in CENTUM VP platforms, the Yokogawa ANB11D-425/BU2A (ANB11D-425 ESB Bus Node Unit) provides direct physical/electrical execution of long-distance communication and field device integration.

Suffix Breakdown & Model Matrix

Hardware Specifications

Process Control and DCS Characteristics

• 4-20 mA HART loop protocol: The unit maintains signal path integrity for HART-enabled instrumentation, ensuring that device diagnostic data is processed and relayed to the DCS asset management host without attenuation.
• FOUNDATION Fieldbus / Profibus PA connectivity: The ESB bus architecture supports the deterministic exchange of digital fieldbus data, allowing for seamless integration of smart instrumentation into the process control network.
• Channel-to-channel isolation: Internal circuitry provides galvanic isolation between the ESB bus interface and field-connected I/O modules, protecting the control network from transients and common-mode noise.
• Cold junction compensation (CJC): The unit utilizes precision thermal sensing on the terminal boards to execute accurate CJC calculations for thermocouple signals, maintaining measurement precision across the node.

Frequently Asked Questions

Q: What is the maximum transmission distance for the optical repeater in this configuration?

A: The -4 suffix indicates support for an optical ESB bus repeater capable of signal transmission over distances up to 50 km when paired with compatible ANT411 optical modules.

Q: Are the power supplies hot-swappable?

A: Yes. The dual-redundant power supply configuration is designed to allow for module replacement during system operation without interrupting the ESB bus communication or field I/O processing.

Field Installation Guidelines

• Mounting: Secure the node unit into a standard 19-inch equipment rack using appropriate mounting hardware. Ensure the installation area provides sufficient airflow to prevent heat accumulation within the rack cabinet.
• Grounding: Bond the node chassis to the cabinet protective earth (PE) bus using a dedicated low-impedance ground cable. A solid ground reference is mandatory for high-speed ESB bus electromagnetic compatibility.
• Wiring: Connect optical fibers to the repeater interface, ensuring the minimum bend radius is maintained to prevent signal loss. Keep optical data lines segregated from high-voltage AC/DC power cabling to eliminate potential electromagnetic interference.
