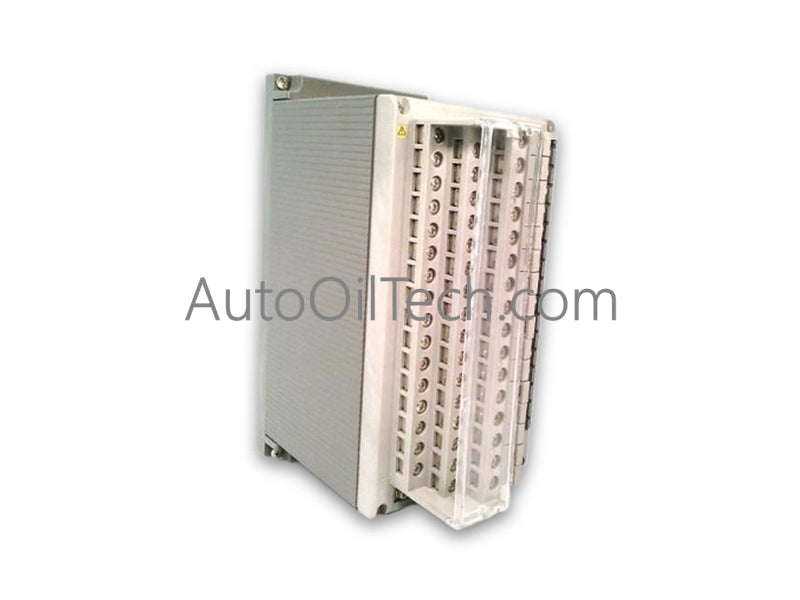

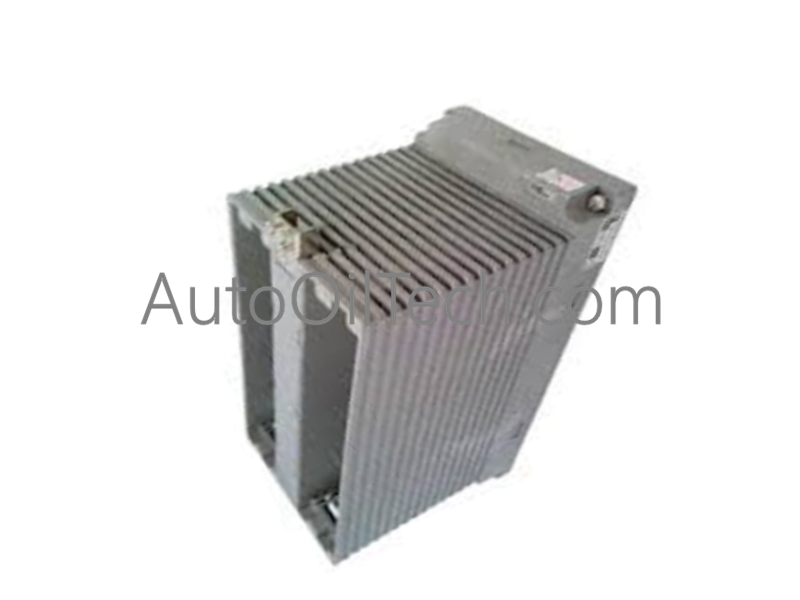

YOKOGAWA AMN11 S1 Analog I/O Nest Module

Configured for 16-channel card rack expansion in Yokogawa DCS chassis systems, the YOKOGAWA AMN11 S1 (AMN11 Nest) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

• AMN11: Base hardware designation for the analog module mounting nest framework.
• S1: Hardware style revision code specifying physical connector pin alignments and system backplane mounting interfaces.

Hardware Specifications

Signal Conditioning and Channel Isolation Properties

• Backplane Isolation Architecture: Provides backplane signal routing paths equipped with individual channel isolation lines to mitigate ground potential differences across analog loops.
• 4-20 mA HART Signal Compatibility: Interconnects analog input and output cards supporting standard 4-20 mA current loops and HART protocol pass-through communication.
• Power Distribution Traces: Integrates heavy-duty internal power distribution planes to deliver stable 24 VDC auxiliary power across all 16 slot connectors.

Frequently Asked Questions

Q: What is the primary function of the AMN11 S1 nest frame?

A: It provides physical mechanical mounting slots and backplane electrical interconnectivity for up to 16 individual analog input and analog output interface modules.

Q: Are active electronics or processing microprocessors embedded directly within the AMN11 S1 assembly?

A: No, the nest functions as an unmanaged passive backplane structural chassis, relying on the inserted I/O cards and main controller for active logic and signal processing.

Q: Can modules installed in the 16 slots be replaced without shutting down power to the entire nest?

A: Module hot-swapping depends on the specific analog I/O card installed; however, the passive backplane bus design supports live insertion and removal provided system ESD grounding guidelines are followed.

Field Installation Guidelines

1. Mount the nest frame securely inside a sealed industrial control enclosure using standard mounting hardware to prevent mechanical vibration wear.
2. Verify that main 24 VDC power lines are de-energized before connecting the main supply bus to the backplane power terminals.
3. Align I/O module edge connectors carefully with the 16 card guide tracks before pushing firmly to ensure complete seating into the backplane receptacles.
4. Route field wiring away from high-voltage AC lines, keeping signal wiring separated by at least 300 mm to preserve analog loop signal integrity.
