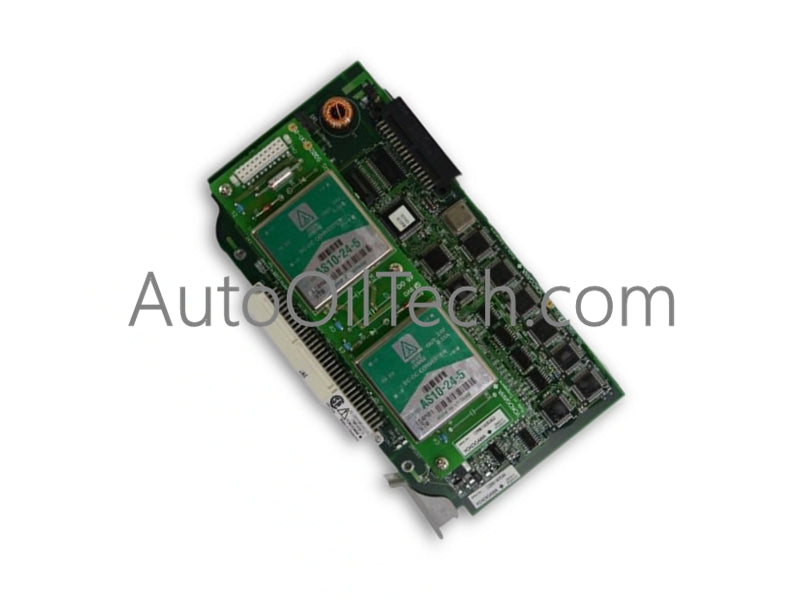

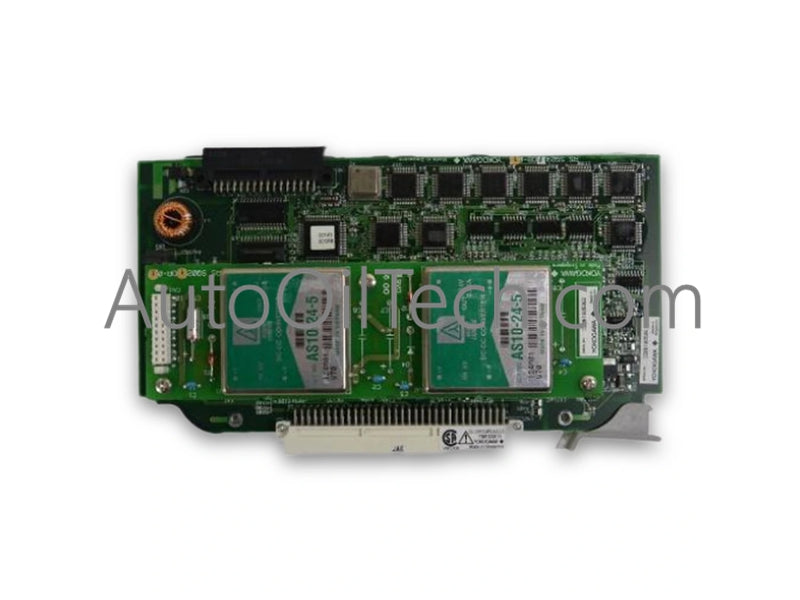

YOKOGAWA AMM52T S2 Output Multiplexer Module

The YOKOGAWA AMM52T S2, also cataloged as the AMM52T Output Multiplexer Module, operates as a dedicated hardware component for 16-point signal routing and distribution within Yokogawa CENTUM control system architectures.

Suffix Breakdown & Model Matrix

• AMM52T: Base hardware platform designating a 16-point high-density output multiplexer module.
• S2: Style revision code indicating specific internal board layout, hardware updates, and terminal housing compatibility.

Hardware Specifications

Signal Conditioning and Channel Isolation Properties

• Multi-Protocol Fieldbus Routing: Supports internal bus communication interfaces configured for deterministic signal pass-through across proprietary Yokogawa DCS backplane connections.
• 4-20 mA HART Loop Compatibility: Accommodates high-accuracy analog current loop outputs alongside digital DC output switching with integrated signal isolation.
• Galvanic Noise Suppression: Built-in isolation circuits mitigate channel-to-system cross-talk and prevent high common-mode line noise from interfering with sensitive controller backplanes.

Frequently Asked Questions

Q: What is the maximum allowable response latency when switching digital output states on the AMM52T S2?

A: Switching state changes complete in under 10 ms across all 16 channels, ensuring minimal signal delay to field-actuated devices.

Q: Can the 24 VDC power supply exceed the standard nominal voltage during loop operation?

A: The input power conditioning circuitry accepts a tolerance range of 24 VDC +/- 20% (19.2 VDC to 28.8 VDC) without impacting internal logic or signal accuracy.

Q: What mounting configurations are supported for this specific chassis footprint?

A: The module is designed for direct insertion into dedicated system rack slots or secure attachment via standard DIN-rail mounting hardware.

Field Installation Guidelines

1. Mount the unit vertically onto the DIN rail or rack cage, ensuring upper and lower lock mechanisms engage securely to prevent vibration-induced dislodgement.
2. Maintain a minimum vertical clearance of 50 mm above and below the module to facilitate natural thermal dissipation across the heat sink surfaces.
3. Route 24 VDC power wiring and field signal cables through separate wire ducts to prevent electromagnetic coupling between power lines and analog signals.
4. Ensure signal shield wires are connected to a single point system earth ground bar; do not double-ground shield drains at field junction boxes.
