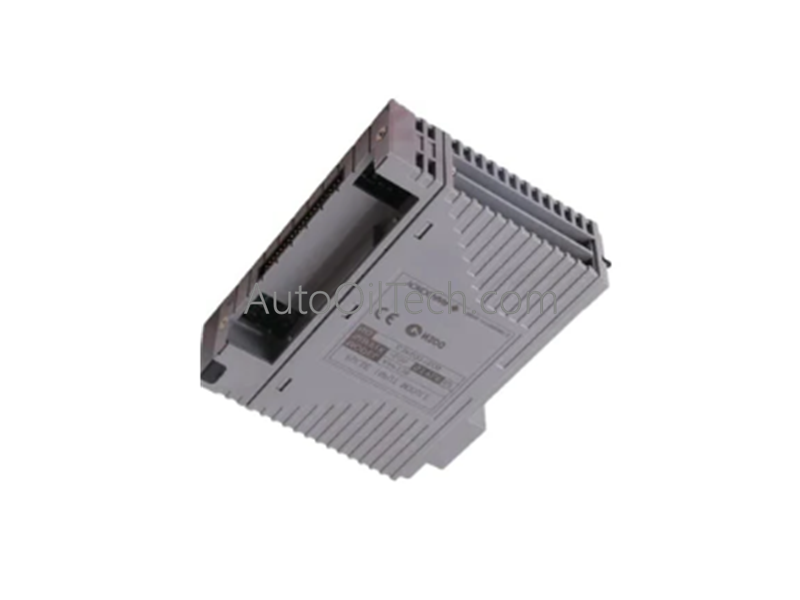

Configured for high-density digital signal acquisition and push-button input processing in process control system networks, the Yokogawa ADV151-P00 (ADV151-P00 Digital Input Unit) provides direct physical/electrical execution.
Suffix Breakdown & Model Matrix
Model Suffix
Core Function Architecture
Architectural Application
ADV151-P00
32-Channel Digital Input Unit with Pushbutton Input
Yokogawa Process Control System Racks
ADV151-...
Base Variant Family
Distributed Control System Switching Interfaces
Hardware Specifications
Parameter
Specification
Model
ADV151-P00
Brand
Yokogawa
Origin
Japan
Weight
0.32 kg (0.71 lbs)
Dimensions
130.0 mm x 25.0 mm x 120.0 mm
Operating Temp
0 deg C to 50 deg C
Power Consumption
2.5 W nominal
Number of Channels
32
Input Voltage
24 V DC
Input Type
Digital discrete with pushbutton input
Channel-to-Channel Isolation and 4-20 mA HART Loop Protocol
The ADV151-P00 unit incorporates robust channel-to-channel isolation architecture to eliminate ground loops and prevent electrical noise propagation between external field pushbuttons and internal system processor nodes. It processes high-density discrete status signals across reliable internal bus pathways, ensuring deterministic switching updates for real-time control loops. Furthermore, internal signal conditioning circuitry maintains strict voltage tolerance limits across 24 V DC input channels, protecting internal logic components from transient electrical surges originating in industrial field wiring.
Frequently Asked Questions
Q: What is the total number of input channels supported by the ADV151-P00 unit?
A: The module supports 32 independent digital input channels designed to handle 24 V DC discrete signals and pushbutton inputs.
Q: Can the ADV151-P00 unit be replaced while the system rack is energized?
A: Hot-swap capability depends on the specific node chassis design; however, standard DCS maintenance guidelines recommend isolating system power to prevent backplane bus interruption.
Field Installation Guidelines
Ensure that the node baseplate is completely de-energized before mounting the ADV151-P00 unit into the designated system rack slot. Route external field pushbutton and sensor wiring through dedicated cable ducts, maintaining physical separation from high-voltage power lines to prevent electromagnetic coupling. Verify that terminal block connections are torqued securely and that module retaining screws are fully tightened to maintain reliable backplane edge-connector engagement.
