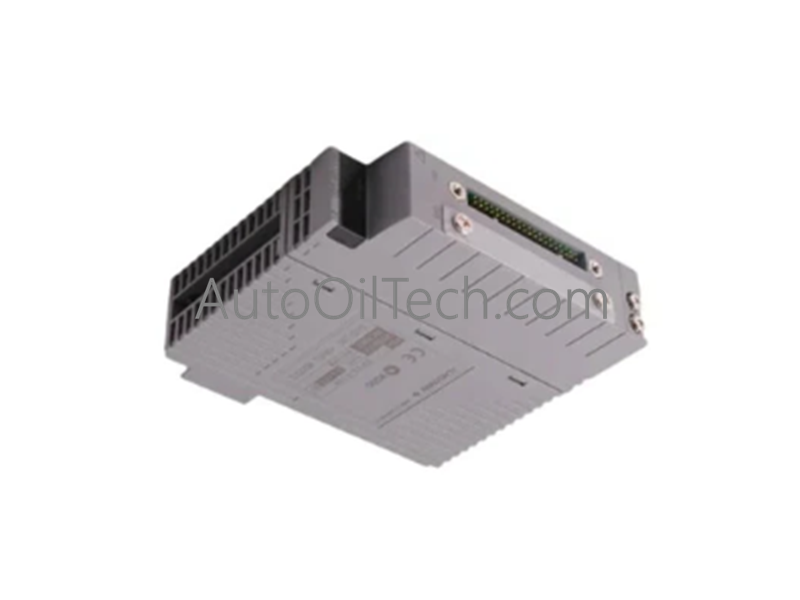

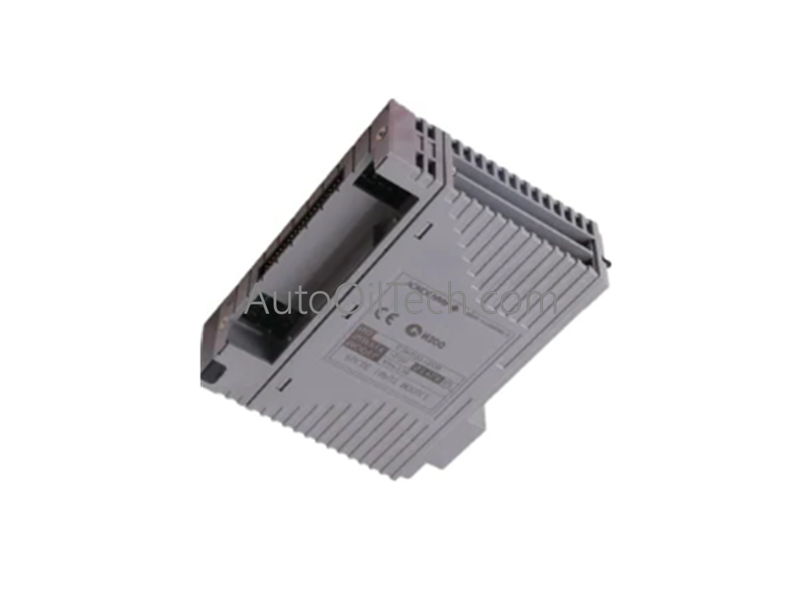

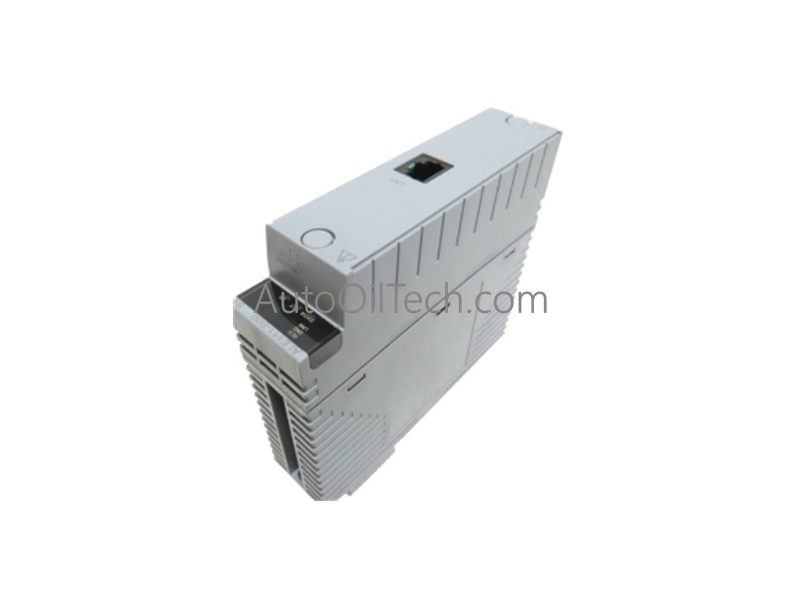

Configured for multi-channel current control signal execution in distributed control system architectures, the Yokogawa AAI543-S00 S1 (AAI543-S00 Analog Output Module) provides direct physical/electrical execution across process control loops.
Suffix Breakdown & Model Matrix
AAI543-S00: Base spare model designation representing a 16-channel isolated analog output module.
S1: Additional model specification suffix indicating standard revision.
Hardware Specifications
Parameter
Specification
Model
AAI543-S00 S1
Brand
Yokogawa
Origin
Japan
Weight
0.3 kg
Dimensions
3.2 x 10.6 x 13 cm
Operating Temp
Standard industrial operating range
Power Consumption
230 mA (5 V DC), 540 mA (24 V DC)
Output Channels
16, isolated
Signal Range
4 to 20 mA
Process Control and DCS Connectivity
Operating within Yokogawa process automation frameworks, the module executes command signals through channel isolation and current loop architectures. The output circuitry maintains an allowable load resistance of 0 to 750 ohms and withstands 1500 V AC between the output and system. Real-time digital-to-analog conversion ensures a data update period of 10 ms while limiting temperature drift to 16 microamperes per 10 degrees C and supporting circuit-open detection of less than 0.65 mA.
Frequently Asked Questions
Q: Does the AAI543-S00 S1 module support live insertion and removal under power?
A: Yes, the module supports hot-swap operations within designated node units when using an active redundant base interface, provided proper system grounding is maintained.
Q: What is the specified accuracy and current output range of this module?
A: The module outputs 4 to 20 mA across 16 isolated channels with a rated accuracy of plus or minus 48 microamperes.
Field Installation Guidelines
Verify that the node slot backplane connector is free of dust or oxidation prior to physical module insertion.
Ensure that field wiring shields are properly grounded at the designated cabinet grounding bar to mitigate electromagnetic interference.
Check all terminal block fastening screws to guarantee mechanical security under heavy industrial vibration conditions.
Confirm that node processor firmware compatibility matches the revision requirements of the installed output module before power-up.
