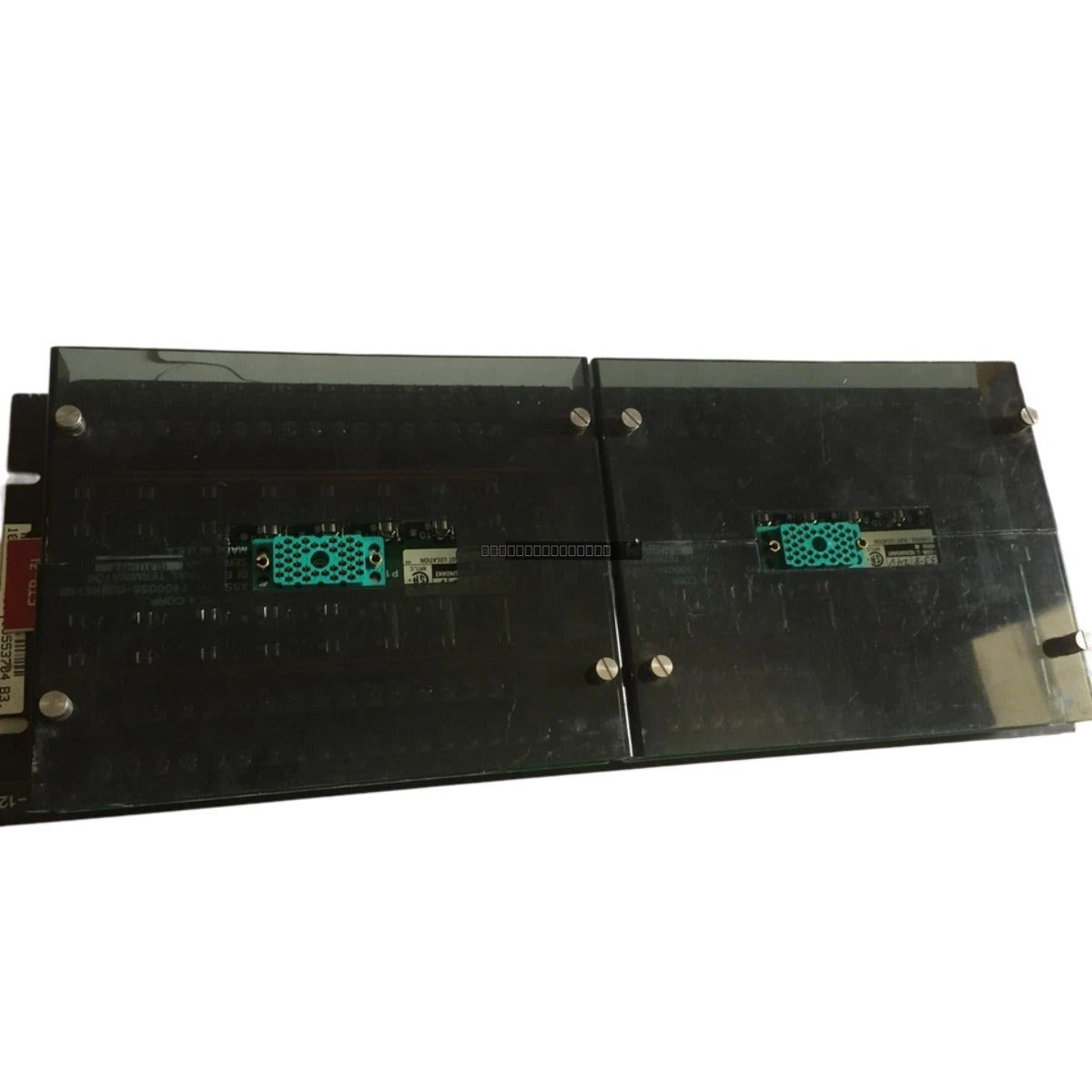

Triconex 3000110-380 Terminal Interface Module

Product Overview

The Triconex 3000110-380 is a high-performance Terminal Interface Module designed for integration within Triconex safety-critical control systems. This module serves as a critical link in safety-instrumented systems, facilitating reliable signal path management between field-level instrumentation and the main processor assemblies. It is engineered to maintain high signal integrity and low latency, which are essential for the operation of emergency shutdown systems and high-availability process control environments.

Features

• Optimized for safety-critical communication within the Triconex I/O bus architecture.
• Robust hardware design provides high immunity to industrial electromagnetic interference (EMI).
• Supports galvanic isolation to protect the controller backplane from field-side transients.
• Redundant data path support to eliminate single points of failure.
• Standard rack-mount form factor for seamless integration into existing Triconex chassis assemblies.

Applications

This module is widely utilized in sectors requiring stringent safety integrity levels (SIL), including petrochemical refining, power generation, oil and gas, and large-scale industrial mining operations. It is specifically suited for tasks requiring continuous loop control and high-speed data polling without compromising system stability.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before inserting or removing the module from the chassis.
• Handle with standard ESD (electrostatic discharge) precautions to prevent damage to sensitive internal components.
• Verify that the module is fully seated in the rack slot to ensure proper engagement with the backplane connectors.
• Route signal cabling away from high-voltage lines and sources of significant electromagnetic interference to maintain signal integrity.
• Ensure adequate ventilation in the cabinet to maintain the operating environment within the specified 0 to 60 degC range.

FAQ

What is the primary function of the 3000110-380 module?
The 3000110-380 acts as a terminal interface to manage and isolate signals between field devices and the Triconex processor, ensuring reliable communication within the I/O bus.

Is this module suitable for safety-critical applications?
Yes, this module is specifically designed for safety-critical environments and is built to support the high availability required for emergency shutdown and safety-instrumented systems.

What should I do if the module shows a communication error?
First, verify that the module is properly seated in the chassis and that all field wiring is secure. If the error persists, check the system logs for specific I/O bus fault indicators and ensure the module's power supply is stable.
