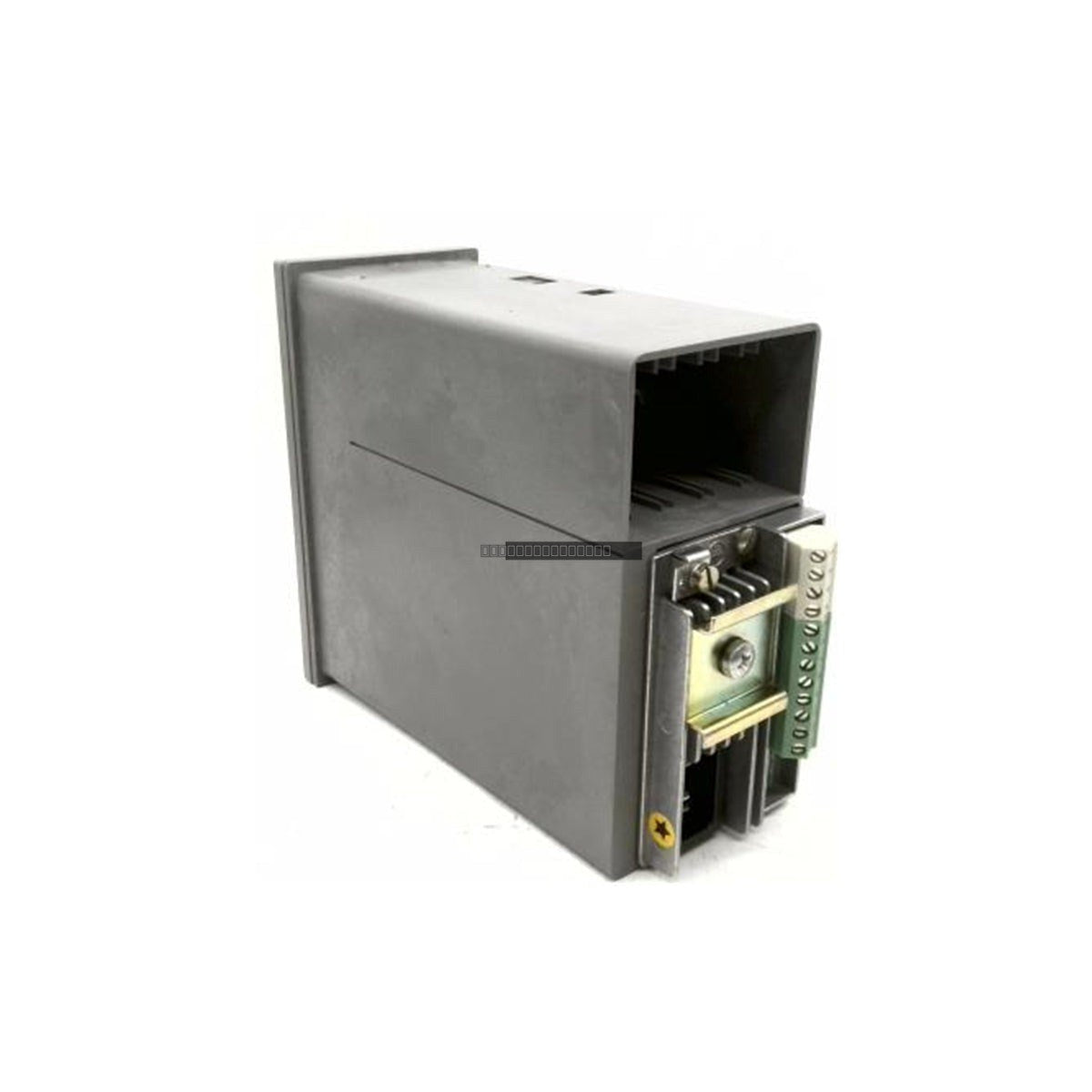

The Siemens 6DR2104-5 is a SIPART DR21 basic unit process controller designed for industrial automation environments. This unit provides reliable process control functionality with continuous output capabilities. Note that this specific model was discontinued by the manufacturer as of October 1, 2013, making it a critical component for legacy system maintenance and support.
Features
Integrated continuous output for precise process regulation.
Equipped with two analog inputs specifically configured for current signal processing.
Includes two digital inputs and two digital outputs for versatile interfacing.
Flexible operating voltage range, selectable between 115 VAC and 230 VAC to suit various power supply standards.
Robust housing designed for panel-mount industrial applications.
Technical Specifications
Model
6DR2104-5
Series
SIPART DR21
Operating Voltage
115/230 VAC (Selectable)
Analog Inputs
2 (Current signals)
Digital I/O
2 Digital Inputs / 2 Digital Outputs
Output Type
Continuous
Status
Discontinued by Manufacturer
Installation Guidelines
Ensure the controller is mounted in a location free from excessive vibration and extreme heat.
Verify that the power supply voltage setting (115V or 230V) matches your local supply before applying power to the unit.
Use shielded cables for all analog input signals to minimize electromagnetic interference (EMI).
Maintain proper grounding practices to protect the internal circuitry from electrostatic discharge (ESD).
Always disconnect power before performing any wiring, inspection, or module removal.
FAQ
Is the Siemens 6DR2104-5 still in production? No, this model was officially discontinued by Siemens on October 1, 2013. We provide these units to support existing infrastructure and legacy systems.
What is the primary function of this module? The 6DR2104-5 is a basic unit process controller used to manage and regulate industrial process variables via its analog and digital I/O channels.
