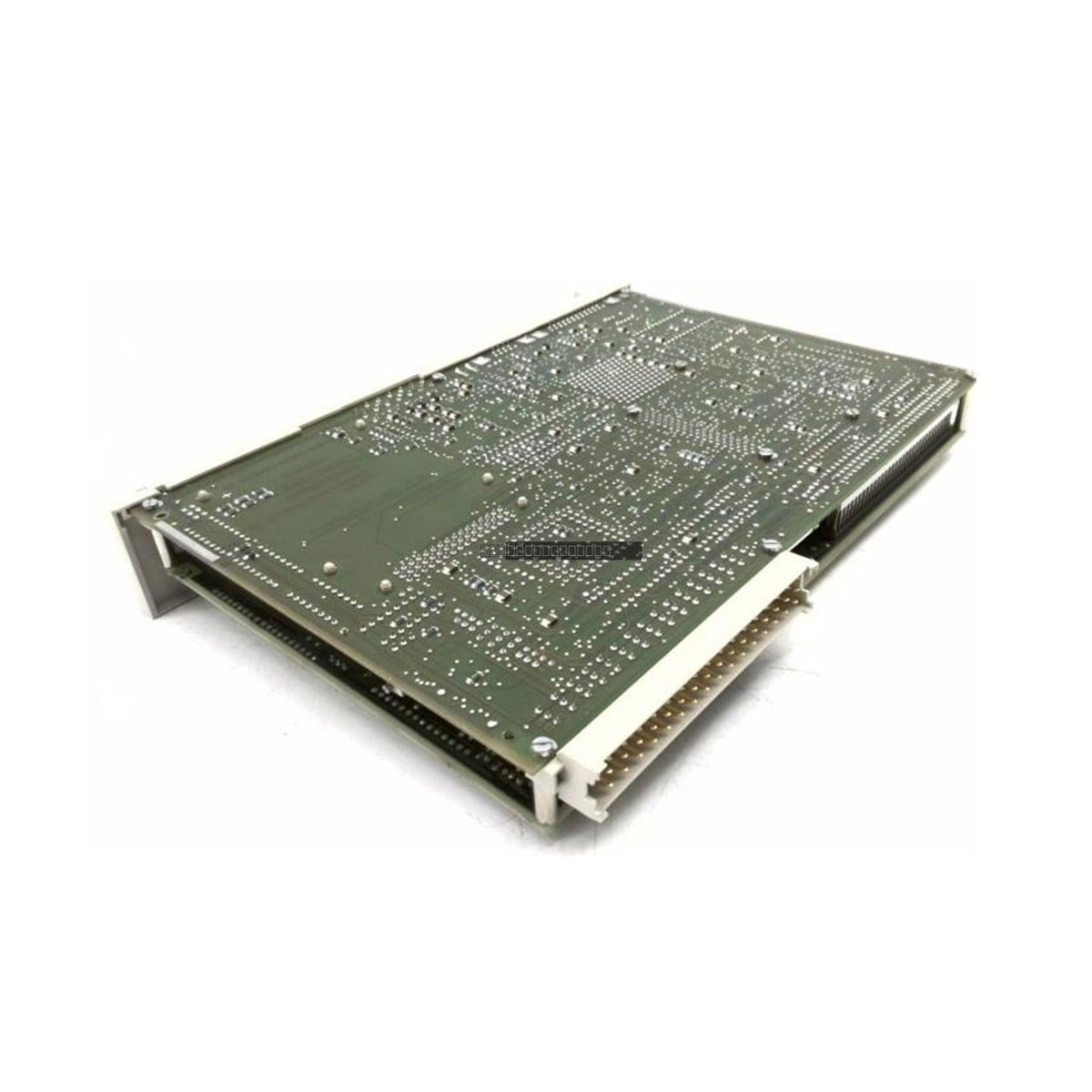

The Siemens 6FM1470-3BA25 is a specialized video interface module designed for integration within Sinumerik and Simodrive architectures. This unit functions as a high-performance bridge, converting internal machine telemetry into analog RGB color signals suitable for industrial display units. By providing clear, real-time visualization of axis coordinates and motor control variables, this module is essential for maintaining operational transparency in complex machine tool environments.
Features
Supports analog RGB color output for high-resolution industrial monitoring.
Integrated hardware reset switch for fast subsystem re-initialization without power cycling the main control bus.
Equipped with three dedicated expansion slots for memory modules, facilitating firmware backup and custom UI storage.
Optimized for high-bandwidth data processing, minimizing latency in display rendering.
Robust mechanical design engineered to withstand high-EMI environments common in multi-axis manufacturing.
Applications
This interface module is typically deployed in heavy industrial sectors, including metal processing, paper milling, and CNC-controlled manufacturing. It acts as a critical visualization component, allowing operators to monitor drive status and perform rapid diagnostics, thereby reducing machine downtime.
Technical Specifications
Model
6FM1470-3BA25
Brand
Siemens Sinumerik
Power Consumption
12 W
Display Protocol
Analog RGB Color
Expansion Slots
3 x Memory Module Slots
Operating Temperature
0 to 55 deg C
Control Feature
Front-panel hardwired system reset
Installation Guidelines
Ensure the main power is disconnected before installing or removing the module from the rack.
Handle the module by the front panel or edges to prevent ESD damage to sensitive internal components.
Verify that the module is fully seated in the designated bus slot to ensure reliable communication with the CPU.
Route video cables away from high-voltage power lines and heavy-duty motor starters to minimize electromagnetic interference.
Maintain proper ventilation in the cabinet to ensure the ambient temperature remains within the 0 to 55 deg C operating range.
FAQ
What is the primary function of the 6FM1470-3BA25? It serves as a video interface card that converts internal CNC/drive telemetry into an analog RGB signal for external display devices.
Can I use this module to store custom UI screens? Yes, the module features three expansion slots that support memory cartridges for localized UI screens and firmware storage.
Does this module require a full system power cycle to reset? No, it includes an onboard mechanical reset button that allows for a quick re-initialization of the display subsystem without cycling the 24 VDC control bus.
