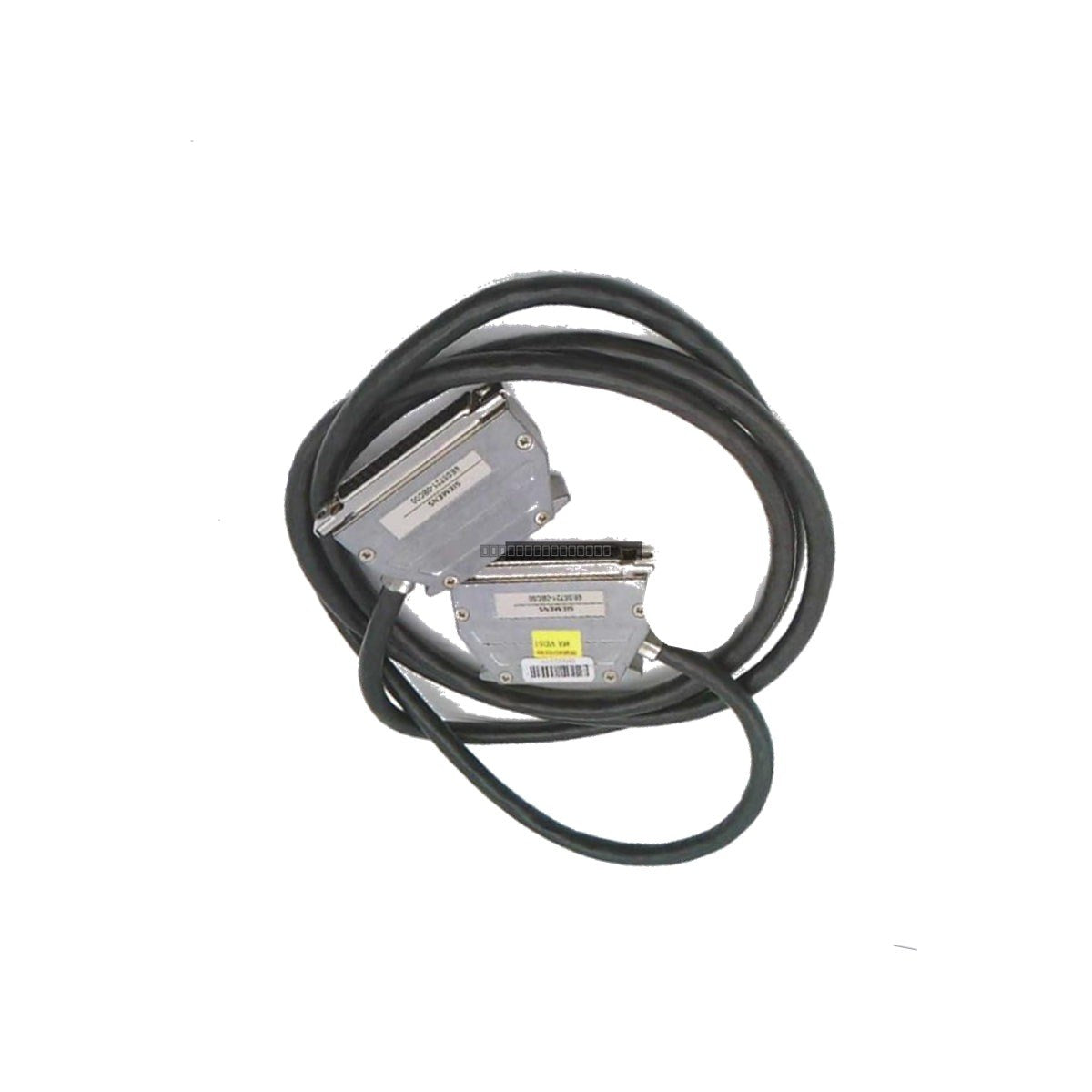

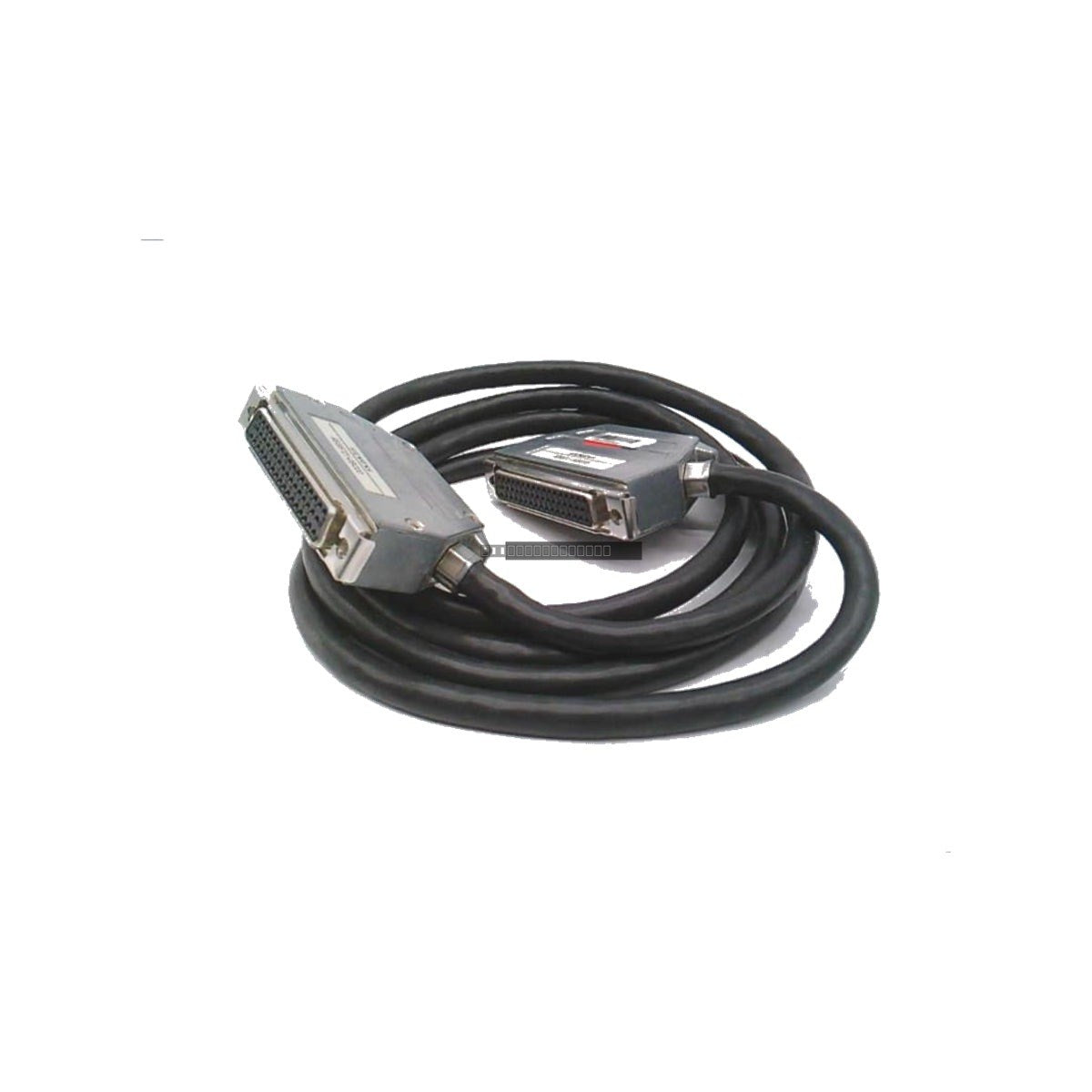

The Siemens 6ES5721-0BC00 is a specialized 50-pin heavy-duty interconnect cable designed for the Simatic S5 automation system. This 2-meter cable is engineered to facilitate reliable parallel data transmission between central controllers and remote expansion units, supporting the creation of distributed rack architectures. It is built to maintain signal integrity in demanding industrial environments, ensuring consistent communication cycles for critical I/O operations.
Features
Robust 50-pin connector interface for secure, high-density data transfer.
Shielded multi-conductor design to mitigate electromagnetic interference (EMI) and common-mode noise.
Integrated strain relief and retention screws for vibration-resistant, gas-tight connections.
Optimized for deterministic I/O refresh rates in distributed S5 rack configurations.
Constructed with high-purity copper and multi-layer shielding for long-term operational reliability.
Applications
This cable is essential for expanding Simatic S5 control systems across large-scale industrial facilities, including oil and gas refineries, power generation plants, and heavy manufacturing sites. It is specifically intended for linking primary processing racks to remote expansion chassis, allowing for complex, distributed automation layouts.
Technical Specifications
Model
6ES5721-0BC00
Brand
Siemens Simatic S5
Cable Length
2 meters
Connector Type
50-Pin Male-to-Female
Operating Temperature
0 to 60 deg C
Power Consumption
Passive (0 W)
Max System Extension
Up to 600 meters (with compatible amplifiers)
Installation Guidelines
Ensure all power is disconnected from the central and expansion units before connecting or disconnecting the cable.
Align the 50-pin connectors carefully to avoid pin deformation; secure the retention screws manually to ensure a stable, gas-tight fit.
Route the cable away from high-voltage power lines and heavy-duty motor cables to minimize potential inductive interference.
Maintain proper bend radii during installation to prevent internal conductor fatigue or shielding damage.
Periodically inspect the connector housings and cable jacket for signs of wear, chemical exposure, or mechanical abrasion in high-vibration environments.
FAQ
Is this cable compatible with all Simatic S5 expansion units?
The 6ES5721-0BC00 is designed for standard S5 bus expansion interfaces. Please verify the pin-out and connector requirements of your specific S5 module or expansion rack before installation.
Does this cable require an external power supply?
No, this is a passive interconnect cable. It does not consume power itself but facilitates the transmission of signals between active S5 components.
