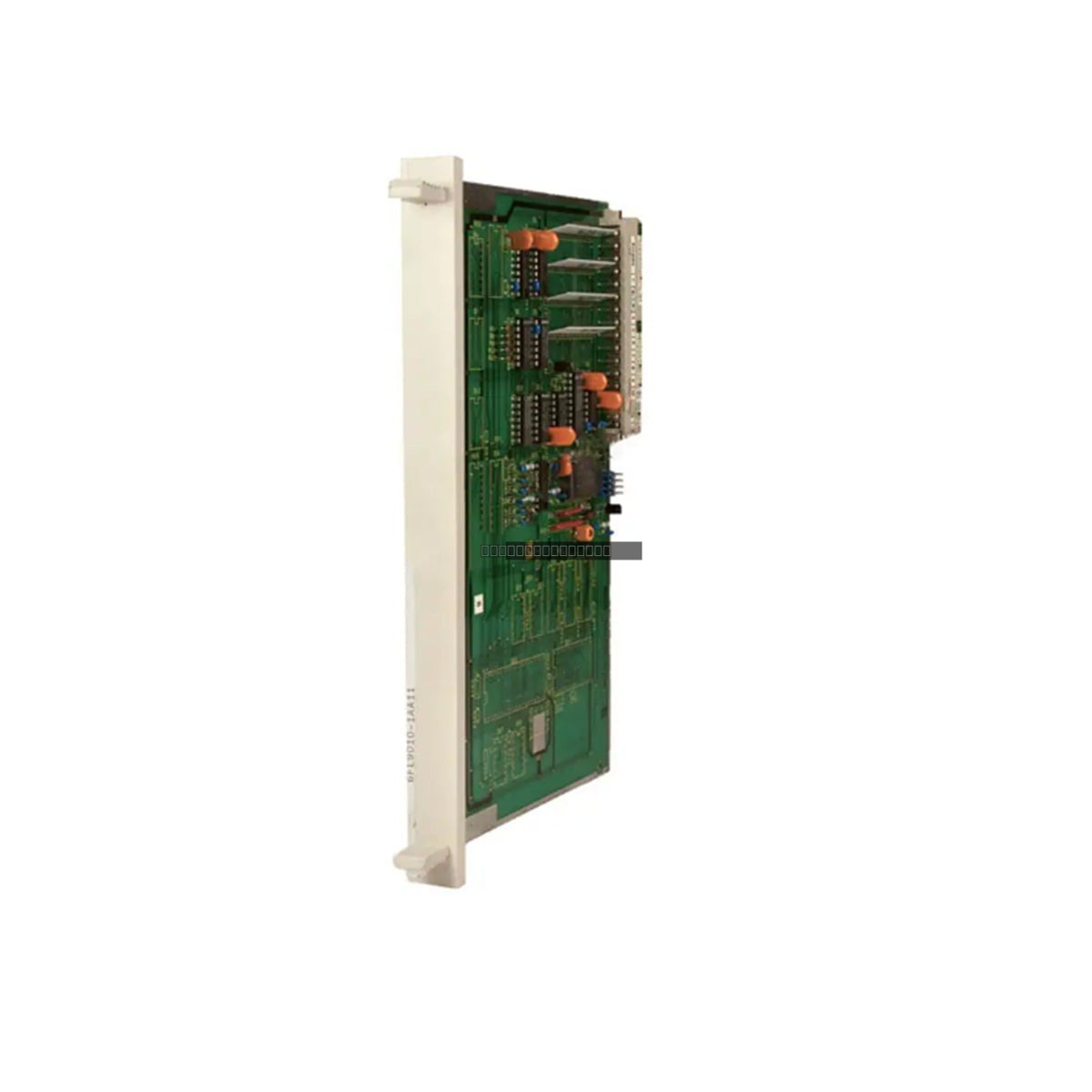

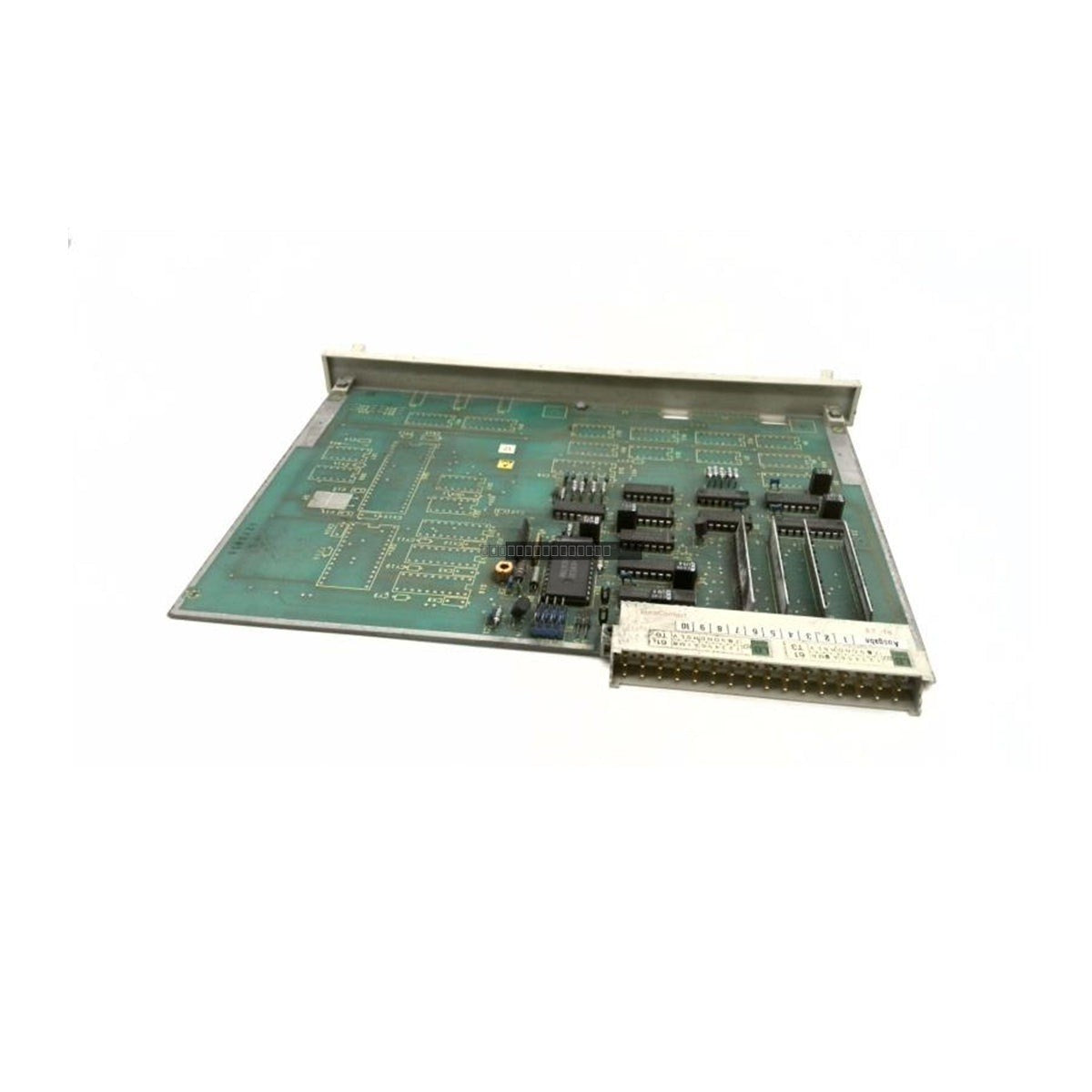

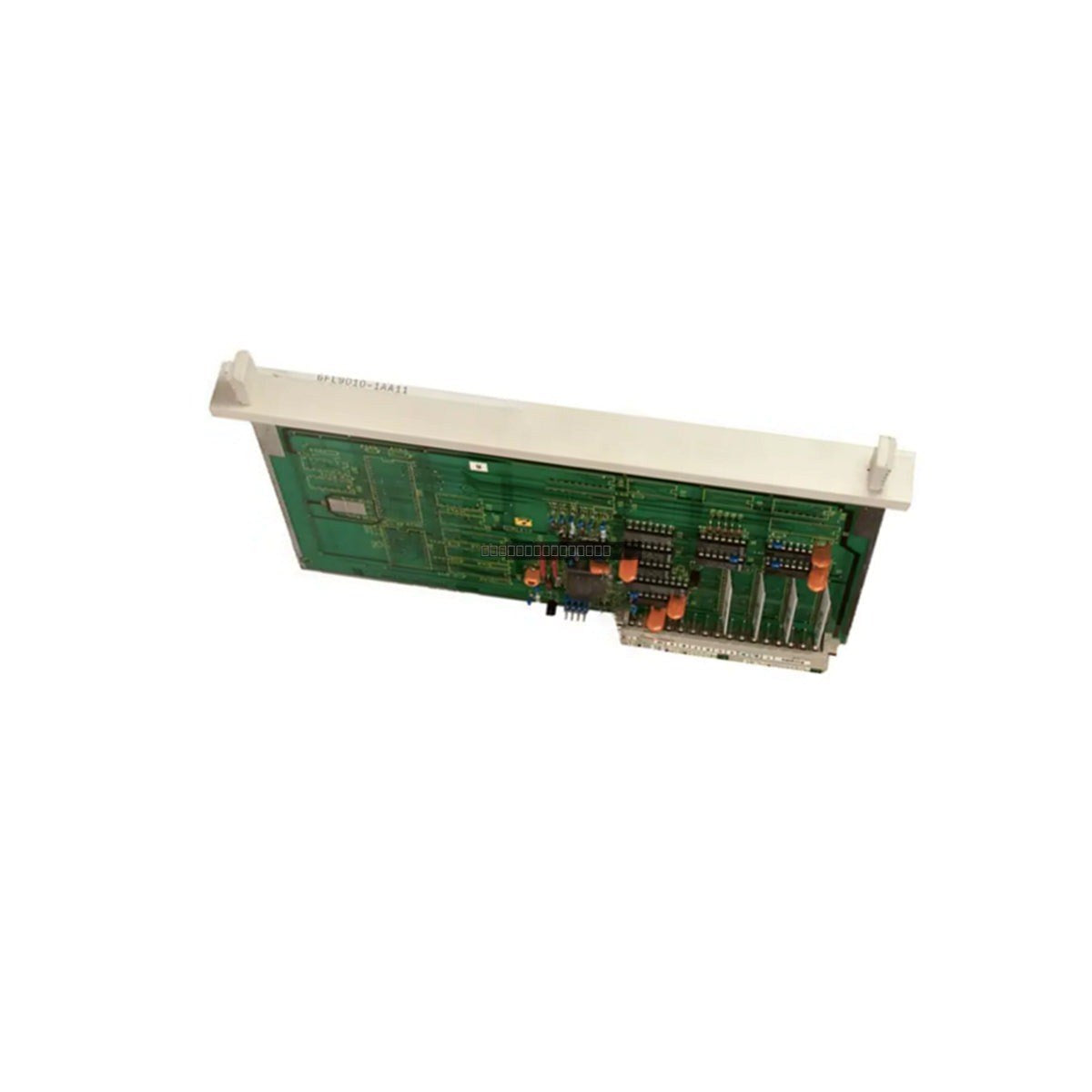

Siemens 6FL9010-1AA11 SIMATIC S5 AG135 Real-Time Clock Module

Description

The Siemens 6FL9010-1AA11 is a dedicated real-time clock module engineered for the SIMATIC S5 AG135 PLC series. This module provides essential time-stamping and synchronization capabilities, ensuring that all events across the automation rack are logged with high temporal precision. By maintaining a consistent time reference, it supports reliable diagnostic logging and event sequencing, which are critical for complex process control environments.

Features

• High-Precision Timing: Utilizes internal solid-state quartz oscillators to provide stable and drift-compensated time signals.
• System Synchronization: Facilitates accurate date and time stamping for logs, reducing troubleshooting time during system faults.
• Battery Backup Integration: Features an onboard battery backup circuit to maintain time-keeping registers during primary power loss.
• Robust Design: Equipped with electromagnetic interference (EMI) shielding to ensure signal integrity in high-noise industrial environments.
• Direct Backplane Connection: Designed with a standard 48-pin interface for reliable mounting and high-speed communication with the AG135 backplane.

Applications

This module is widely utilized in industrial automation sectors where precise event logging is mandatory for operational safety and regulatory compliance. Typical applications include large-scale petrochemical refinery control systems, thermal power generation plants, and automated mining processing facilities where synchronized data across multiple processing units is required.

Technical Specifications

Installation Guidelines

• Power Status: Always disconnect the main power supply from the AG135 rack before inserting or removing the module to prevent electrical damage.
• Handling: Use proper electrostatic discharge (ESD) precautions when handling the module to protect sensitive internal components.
• Seating: Ensure the 48-pin connector is fully seated and aligned with the backplane slot to prevent intermittent signal loss.
• Environment: Maintain the module within the specified operating temperature range of 0 to 60 deg C to ensure long-term clock stability.
• Grounding: Verify that the rack backplane is properly grounded to minimize the impact of external electromagnetic interference on the clock signal.

FAQ

Does this module require external software configuration?

The 6FL9010-1AA11 is designed to integrate directly with the AG135 architecture. Specific configuration settings for time synchronization are typically handled through the standard S5 programming environment.

What is the purpose of the battery backup?

The internal battery backup ensures that the real-time clock continues to track time even when the main PLC rack is powered down, preventing the need for time resets after maintenance or power outages.
