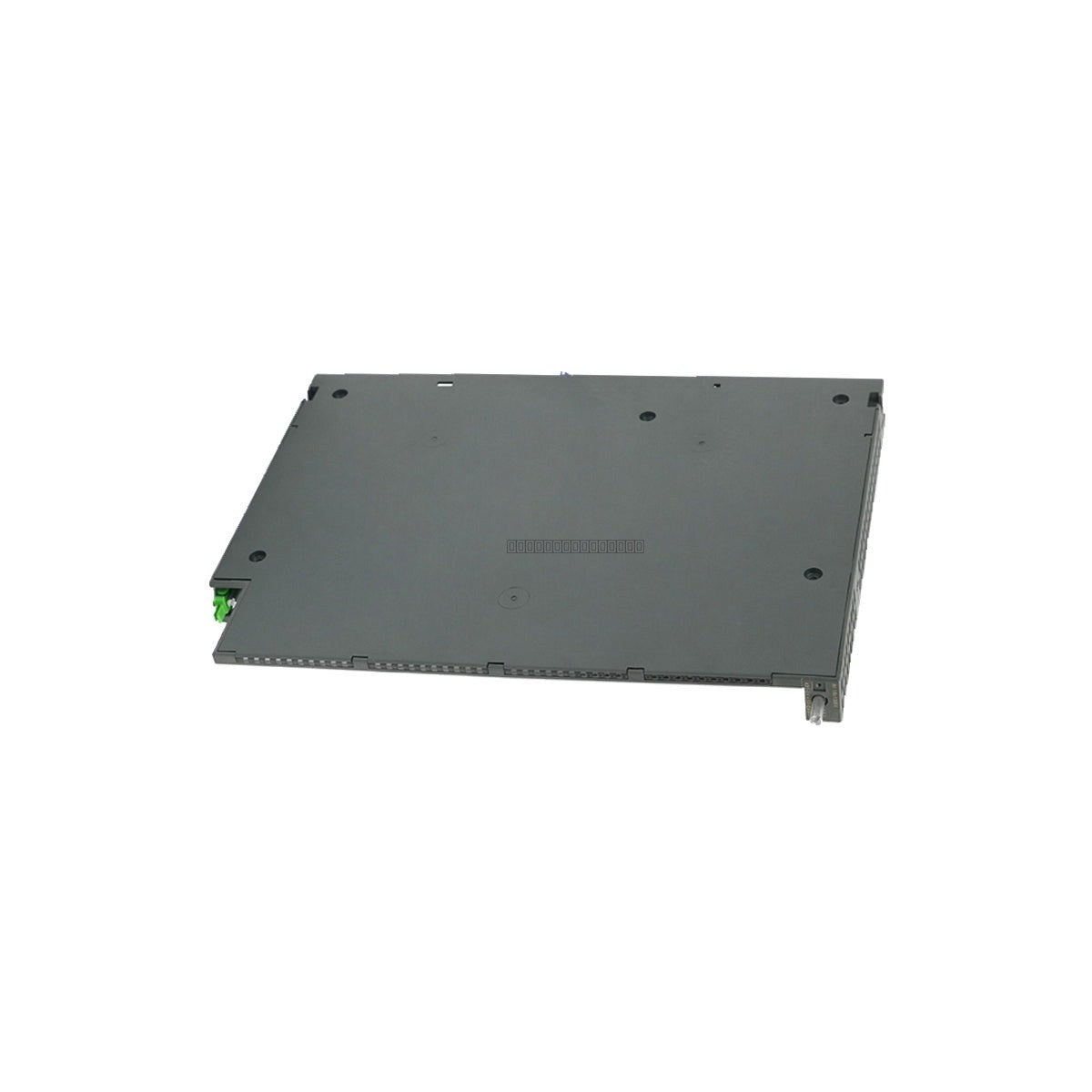

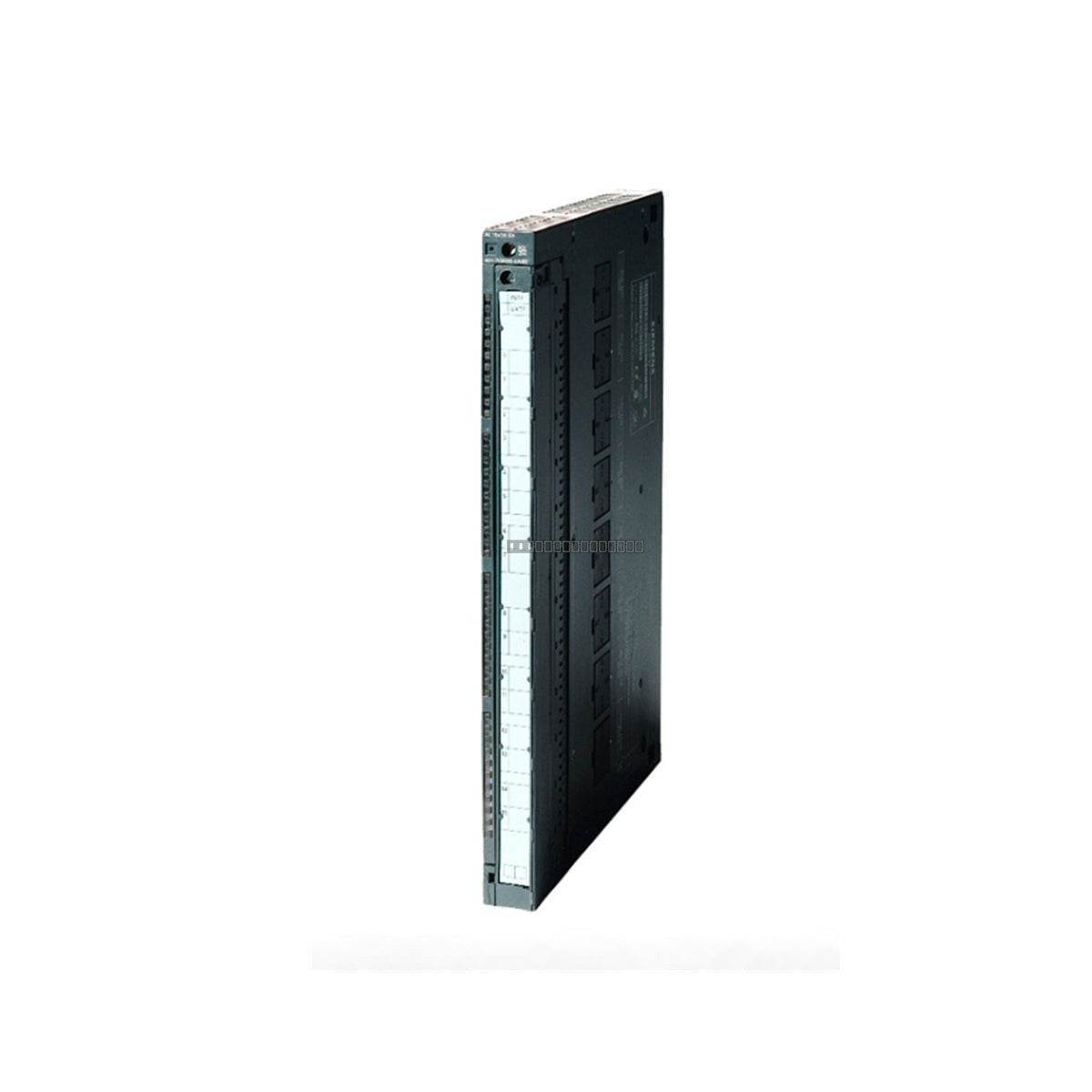

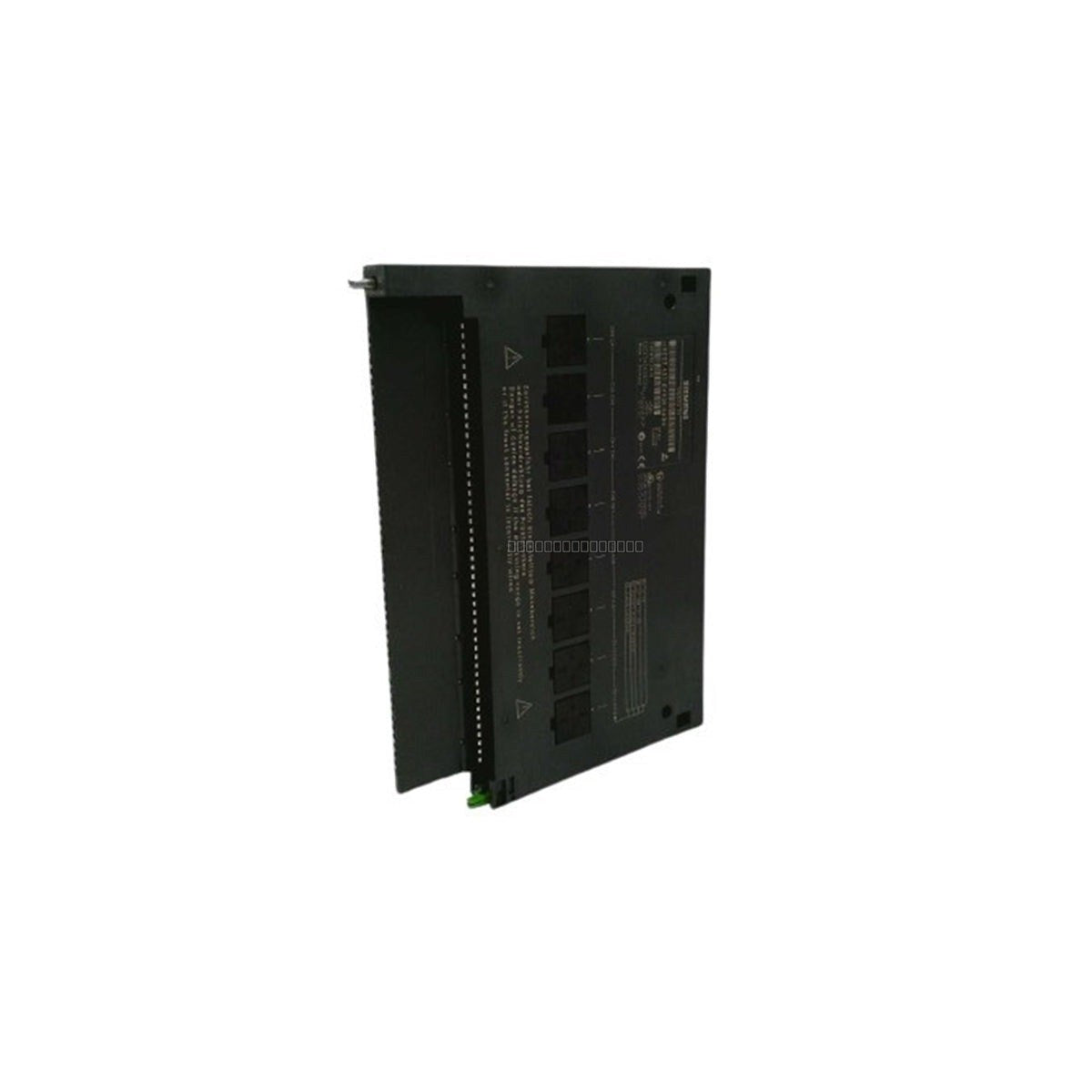

The Siemens 6ES7431-0HH00-0AB0 (SM 431) is a 16-channel analog input module engineered for the SIMATIC S7-400 automation system. This non-isolated module provides 13-bit resolution for converting analog process signals into digital values, facilitating precise industrial control. It supports various signal types including +/-10 V, +/-20 mA, and 4-20 mA, with a conversion time of 20 ms.
Features
16 analog inputs, non-isolated
13-bit resolution for high-precision signal conversion
Supports voltage (U), current (2-wire/4-wire), and resistance measurement
Integrated short-circuit protection for transducer supply (approx. 60 mA per channel pair)
Parameterizable interrupts for immediate CPU response to process events
Standard S7-400 diagnostic framework support
Applications
Oil and Gas: Centralized monitoring of pressure, level, and flow in refineries and pipeline stations.
Power Generation: Auxiliary control systems for power plants and electrical substations.
Steel and Metallurgy: Sensor monitoring for blast furnaces and continuous rolling units.
Chemical and Pharmaceutical: Process parameter monitoring for reaction vessels and distillation towers.
Technical Specifications
Product Model
6ES7431-0HH00-0AB0
Module Type
Analog Input (SM 431)
Channels
16
Resolution
13-bit
Conversion Time
20 ms
Rated Voltage (DC)
24 V
Current Consumption (Backplane)
100 mA (5 V DC)
Current Consumption (Load L+)
400 mA max
Power Loss (typ.)
2 W
Isolation (Type Test)
500 V AC / 707 V DC
Installation Guidelines
Ensure the S7-400 rack power is disconnected before installing or removing the module to prevent electrical damage.
The module must be seated securely in the backplane slot; ensure the front connector is fully engaged and locked.
Use shielded cables for all analog signal wiring to minimize electromagnetic interference (EMI).
Route signal cables separately from high-voltage power lines and motor control cabling.
Ensure proper grounding of the cable shields at the entry point or as specified by the S7-400 system grounding requirements.
Handle with standard ESD precautions to protect sensitive electronic components.
FAQs
What is the 6ES7431-0HH00-0AB0?
The Siemens 6ES7431-0HH00-0AB0 is a SIMATIC S7-400 analog input module, specifically the SM 431; AI 16 x 13 Bit.
What measurement methods does this module support?
The module can be configured for voltage (U), current (two-wire and four-wire transmitters), and resistance (four-core connection) measurements.
Does this module provide diagnostic feedback?
Yes, it supports standard diagnostic functions for analog modules to detect and report internal errors and field device health.
