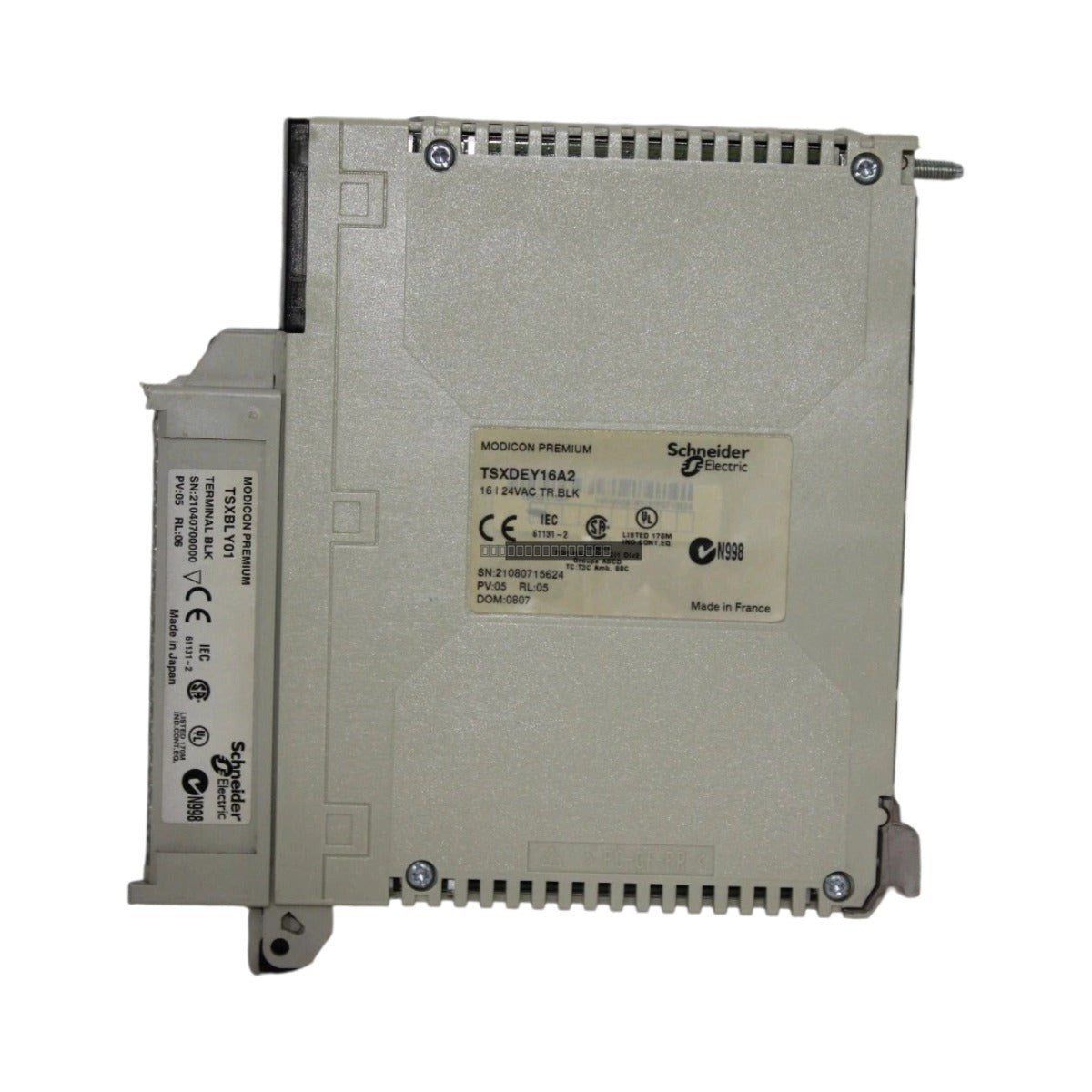

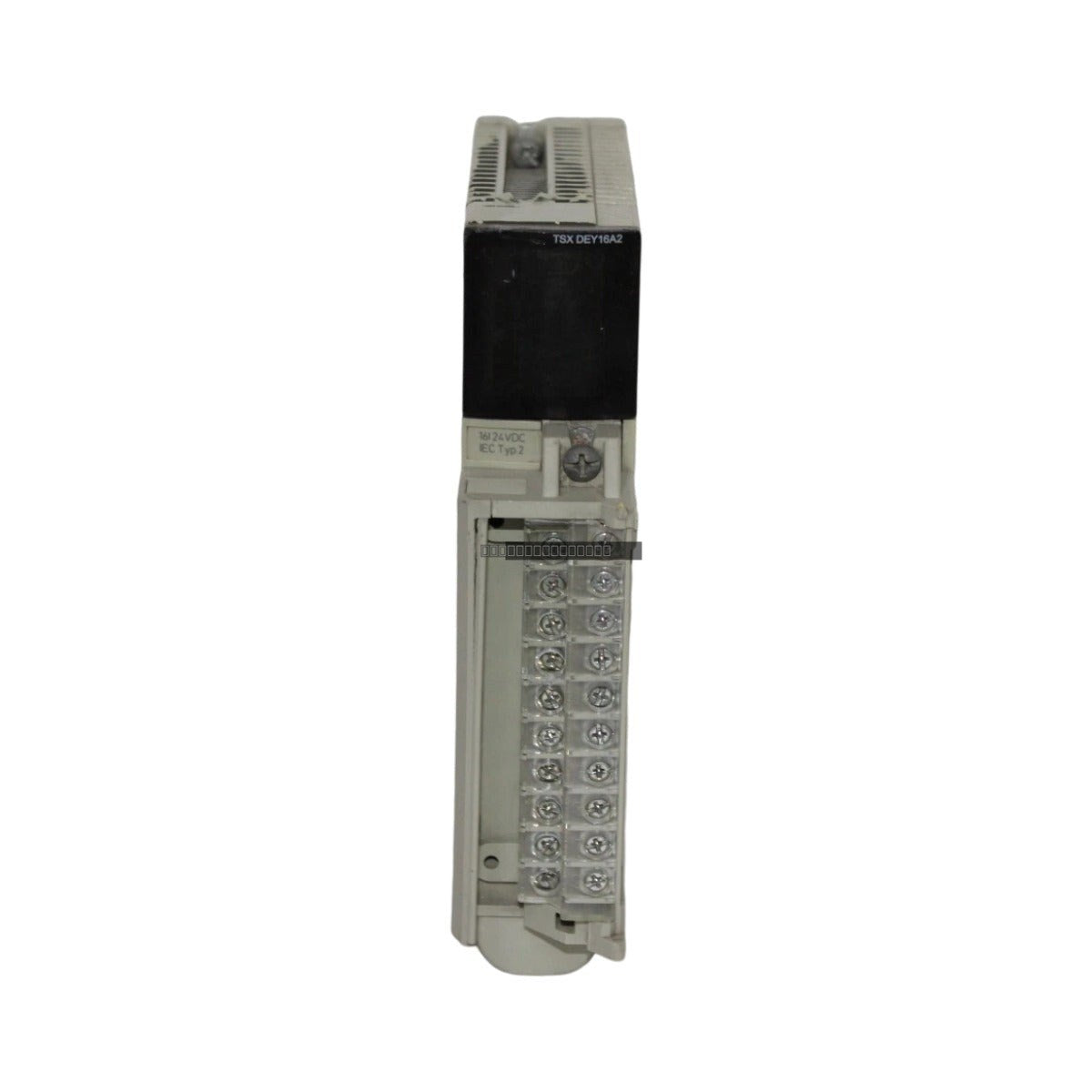

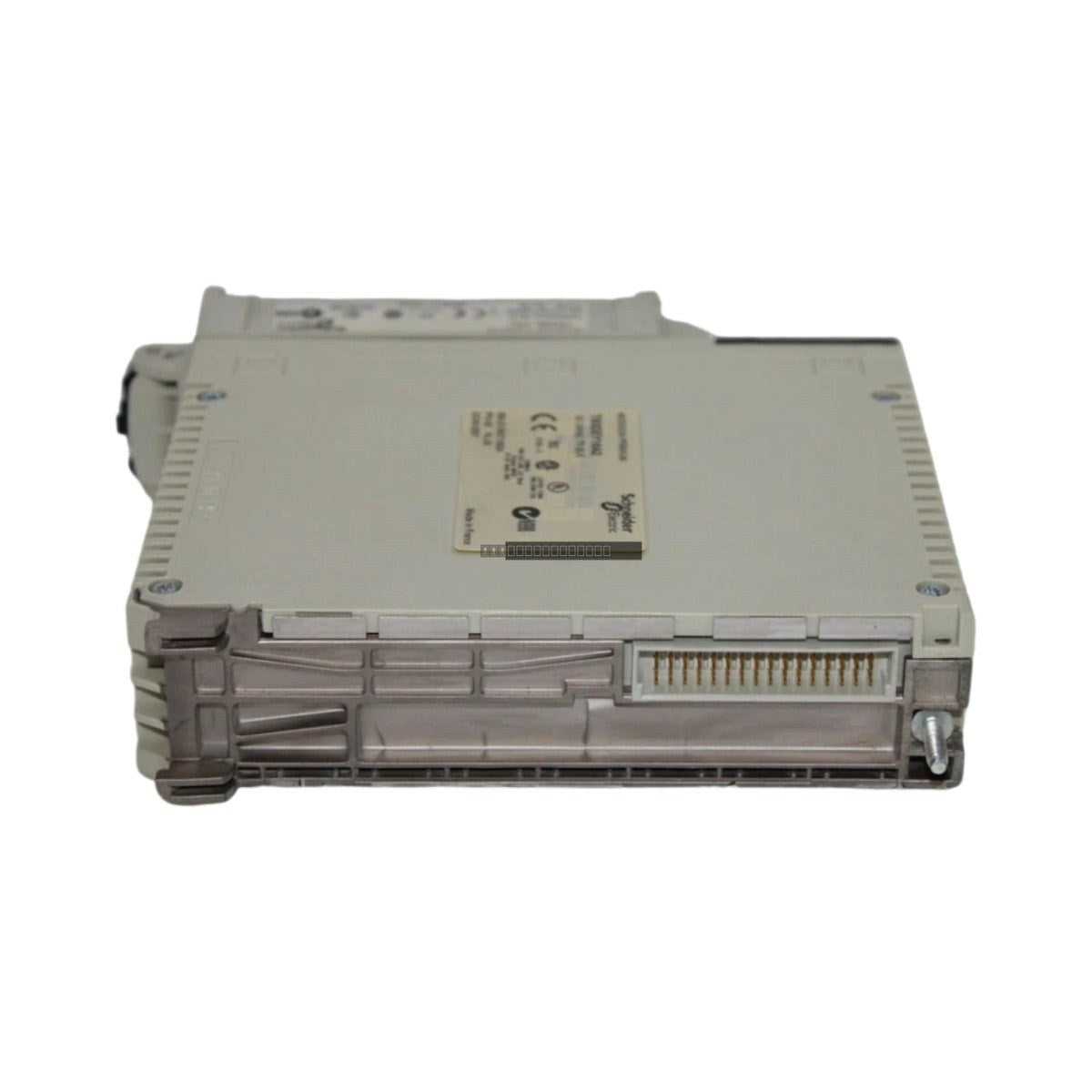

Schneider Electric TSXDEY16A2 Modicon Premium Digital Input Module

Description

The Schneider Electric TSXDEY16A2 is a 16-channel discrete input module designed for integration within the Modicon Premium automation architecture. This module is specifically engineered to interface with 24 V AC field signals, providing reliable status monitoring for industrial applications such as process control, power utility management, and heavy-duty machinery. By incorporating robust signal conditioning, the module ensures accurate state detection while mitigating the risks associated with contact bounce and electromagnetic interference common in high-density wiring environments.

Features

• 16 independent discrete input channels configured in a single isolated group.
• Integrated signal filtering to suppress transient spikes and mechanical contact bounce.
• High-voltage dielectric isolation (1500 V AC) between field circuits and the internal logic bus.
• Optical coupling for enhanced noise immunity and backplane protection.
• Standardized HE10 connector interface for efficient field wiring.
• Real-time status monitoring and register synchronization via the chassis backplane.

Applications

This input module is suitable for a wide range of industrial environments, including:

• Chemical and petrochemical processing plants.
• Power generation and distribution systems.
• Bulk material handling and crushing facilities.
• General-purpose automation requiring AC signal sensing and interlock management.

Technical Specifications

Installation Guidelines

• Ensure the rack is powered down before inserting or removing the TSXDEY16A2 module to prevent electrical damage or backplane faults.
• Mount the module securely in the designated Modicon Premium chassis slot, ensuring the backplane connector is fully seated.
• Use appropriate shielded cabling for field inputs to minimize EMI pickup, especially in high-noise industrial zones.
• Verify that field wiring is connected to the HE10 connector block according to the system wiring diagram.
• Maintain proper ventilation within the control cabinet to keep the ambient temperature within the 0 to 60 deg C operating range.
• Handle with standard ESD precautions to prevent damage to sensitive internal electronic components.

FAQ

What is the primary function of the TSXDEY16A2 module?
The TSXDEY16A2 is designed to sense the state of 24 V AC field devices and communicate this data to the Modicon Premium PLC, allowing for precise monitoring of switches, interlocks, and auxiliary contacts.

Does this module require external power for the inputs?
The module is designed to accept 24 V AC signals from your field devices. The internal logic circuitry is powered directly from the 5 VDC rail of the backplane.
