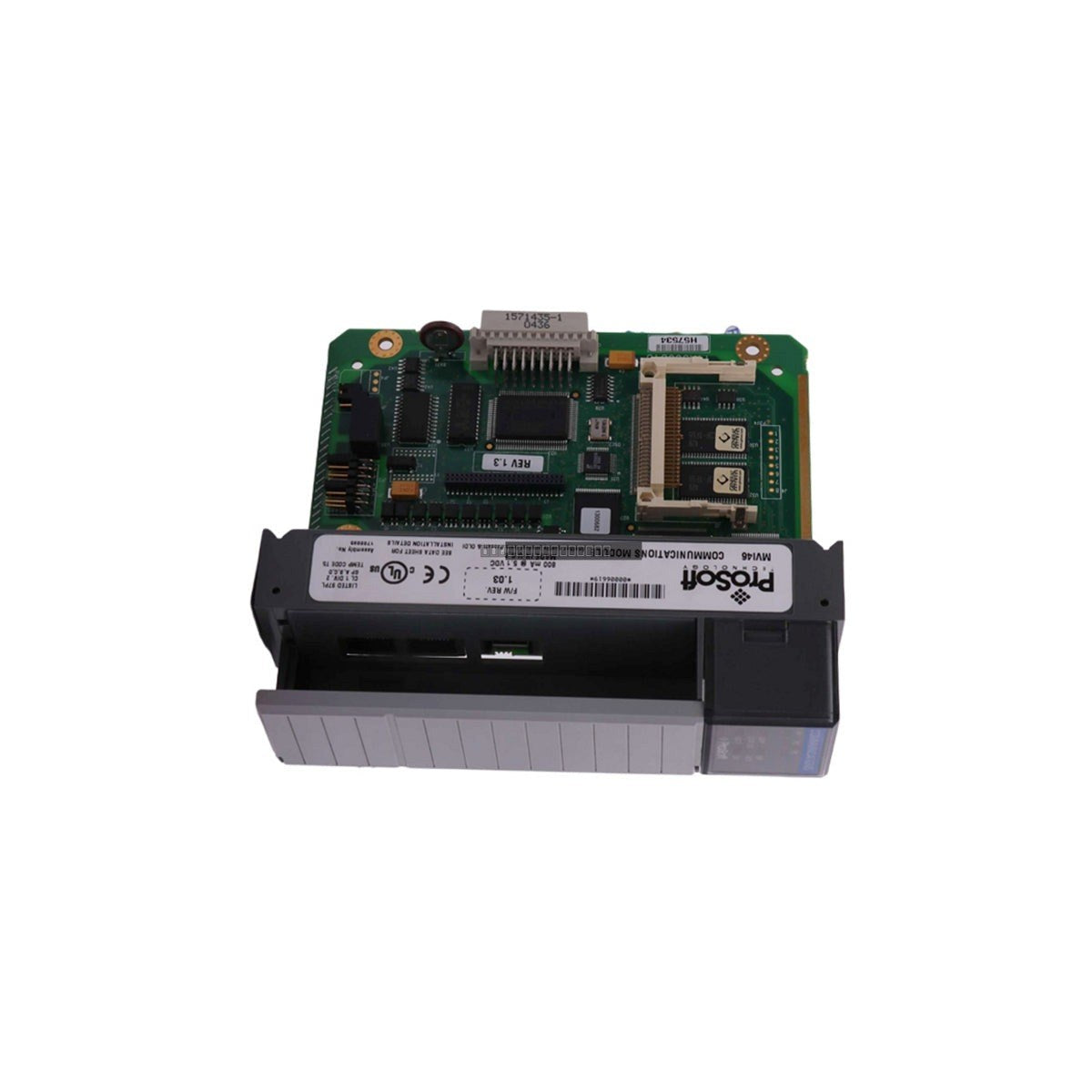

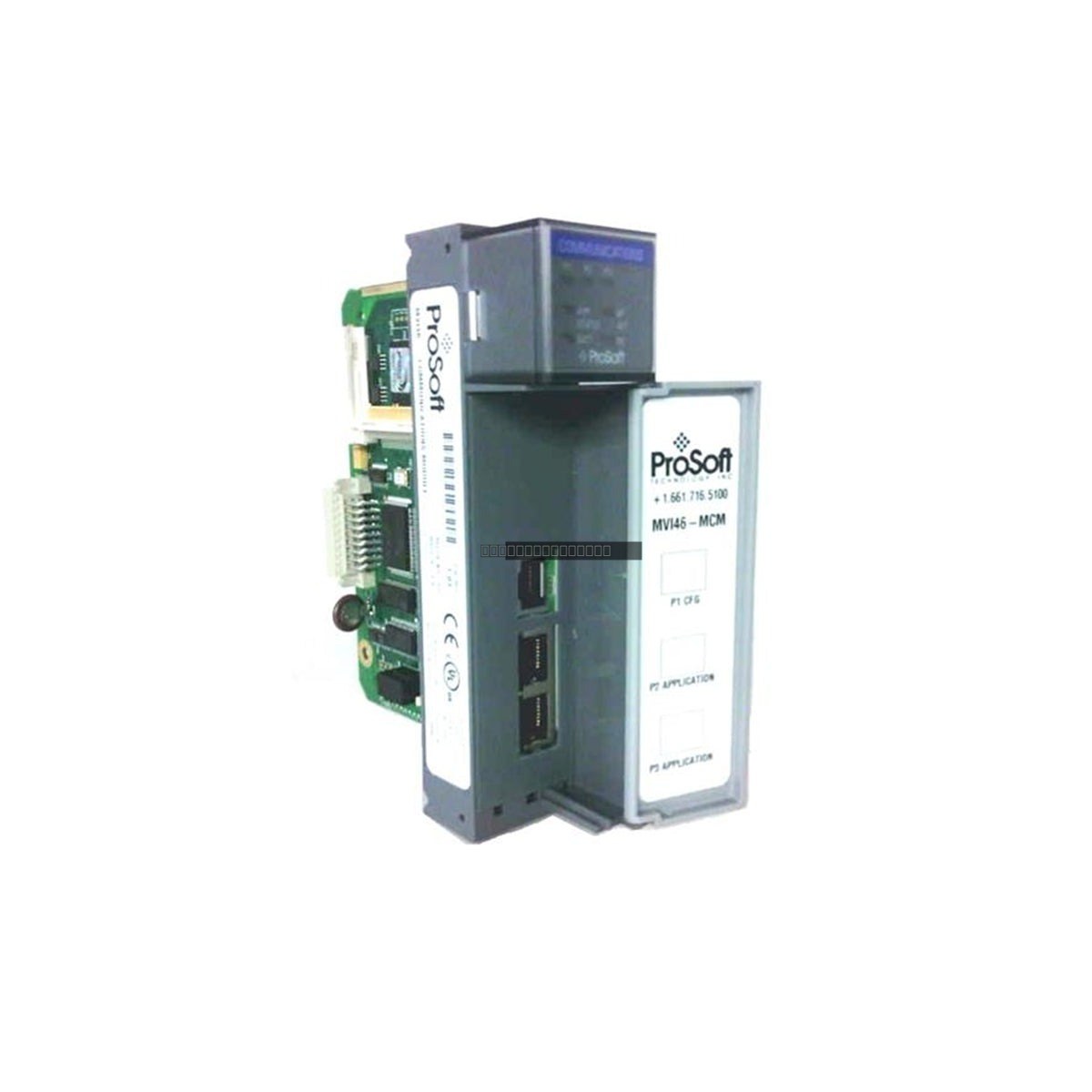

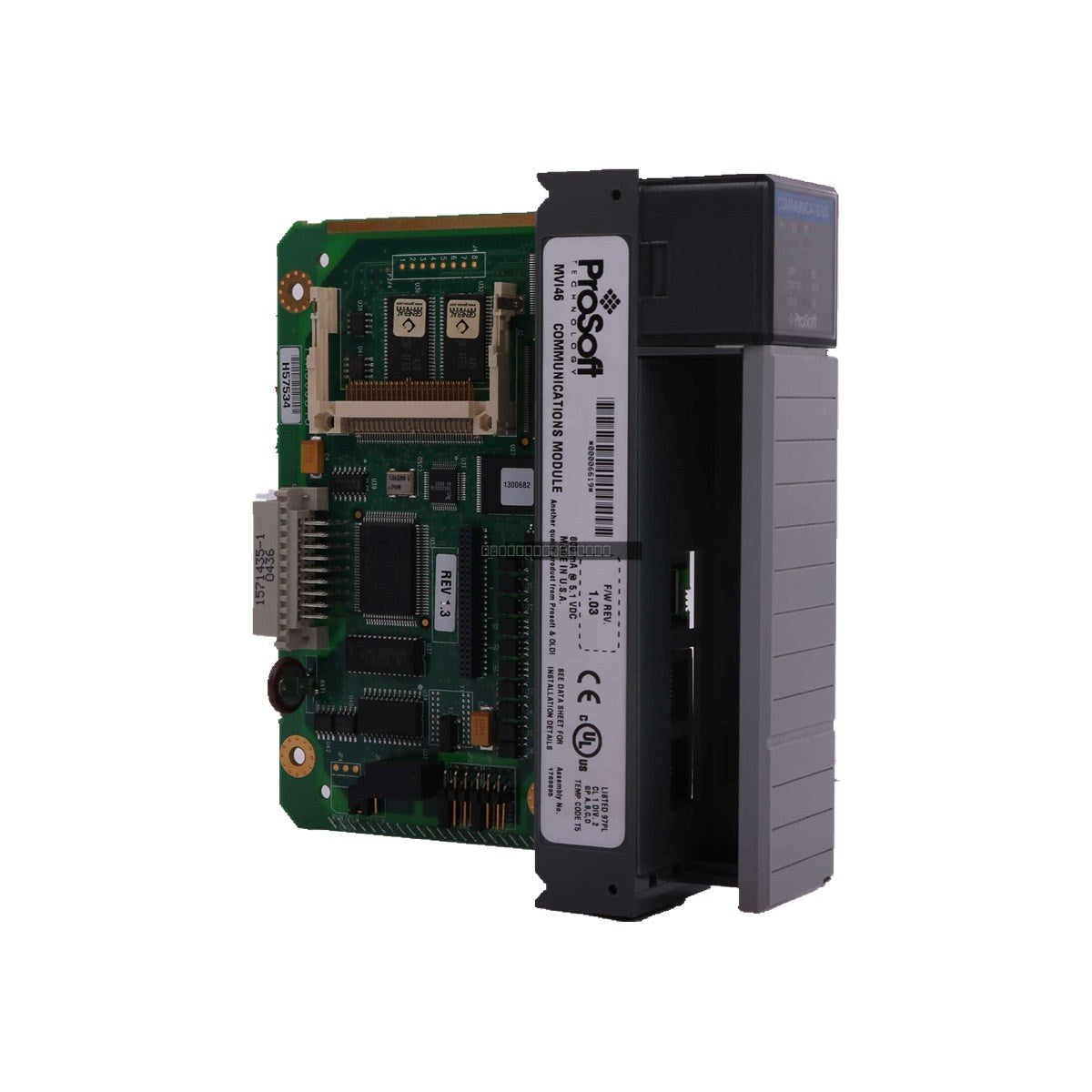

The ProSoft MVI46-MCM is a high-performance communication module engineered for seamless integration between Rockwell Automation SLC 500 processors and Modbus-compatible devices. Designed to function as an I/O module on the SLC backplane, it provides reliable connectivity for both Modbus Master and Slave configurations, facilitating data exchange across various industrial networks.
Features
Dual-port interface supporting RS-232, RS-422, and RS-485 communication standards.
Supports up to 100 Modbus commands per port for comprehensive network control.
Integrated 5000-word register space for efficient data exchange between the processor and external devices.
Asynchronous data transfer, ensuring minimal impact on the SLC processor scan time.
Optimized polling logic for master ports to improve communication efficiency with problematic slave nodes.
Applications
SCADA system integration for real-time monitoring and control.
Process control in pulp and paper mills, including motor drive and chemical delivery management.
Heavy industry applications such as mining and material handling equipment integration.
Coordination of food and beverage packaging lines, weigh scales, and temperature controllers.
Boiler and burner management systems requiring robust communication protocols.
Technical Specifications
Model
MVI46-MCM
Backplane Current Load
800 mA at 5 VDC
Operating Temperature
0 to 60 degC
Storage Temperature
-40 to 85 degC
Relative Humidity
5 to 95% (non-condensing)
Vibration
5 g from 10-150 Hz
Compatibility
1746 Chassis (Local/Extended Racks 0-3)
Form Factor
Single Slot
Installation Guidelines
Ensure the SLC processor is powered down before inserting or removing the MVI46-MCM module to prevent electrical damage.
The module must be installed in a local or extended I/O rack (0-3) of the SLC 500 system; it does not support remote I/O rack placement.
Maintain proper grounding practices for the 1746 chassis to minimize EMI interference.
Use shielded communication cabling for RS-422/485 connections to ensure signal integrity in high-noise industrial environments.
Verify that the communication port settings (baud rate, parity, data bits) match the requirements of the connected Modbus slave or master device.
FAQ
What is the primary function of the MVI46-MCM?
This module acts as a bridge between the Allen-Bradley SLC 500 backplane and Modbus-enabled devices, allowing the PLC to act as either a Modbus Master or a Slave node.
Does this module support high-speed communication?
Yes, the MVI46-MCM supports baud rates up to 115.2 kbps, offering significant performance improvements over legacy modules like the 3150-MCM.
Can this module be used in a remote rack?
No, the module must reside in the local or extended (0-3) I/O racks of the SLC 500 system to function correctly.
