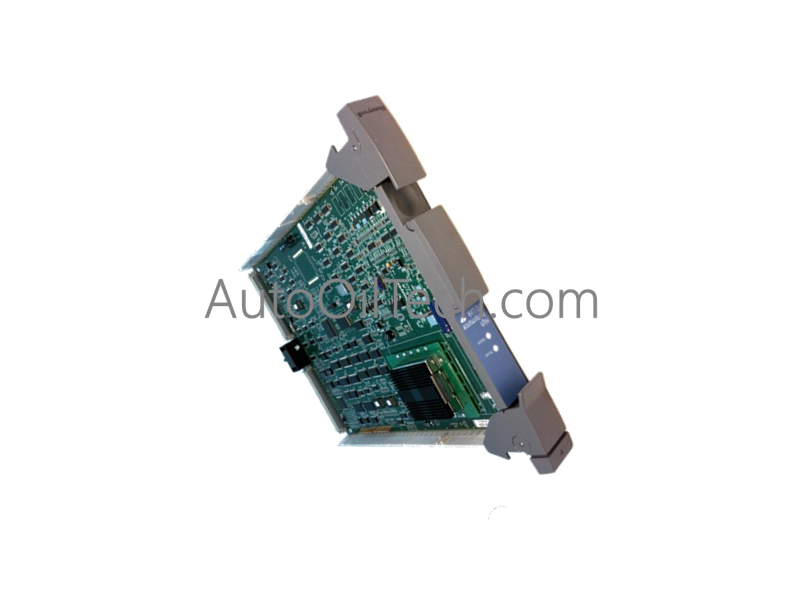

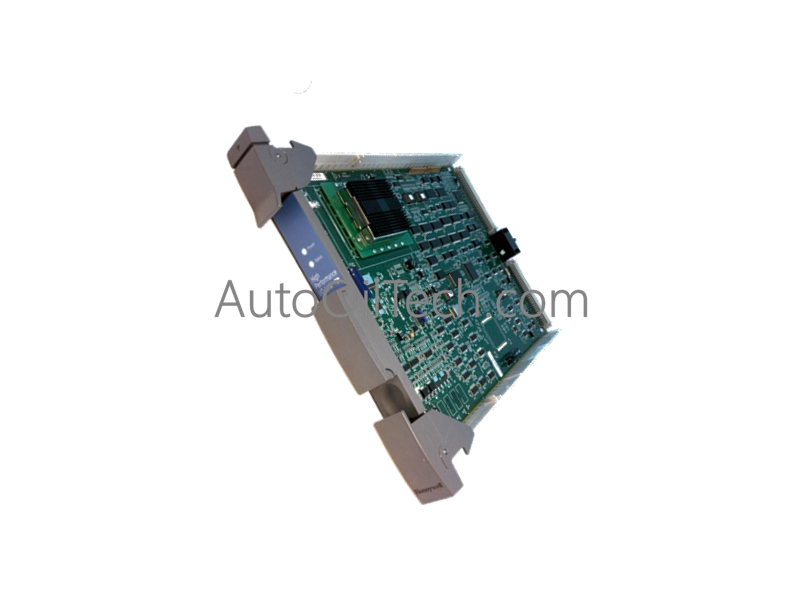

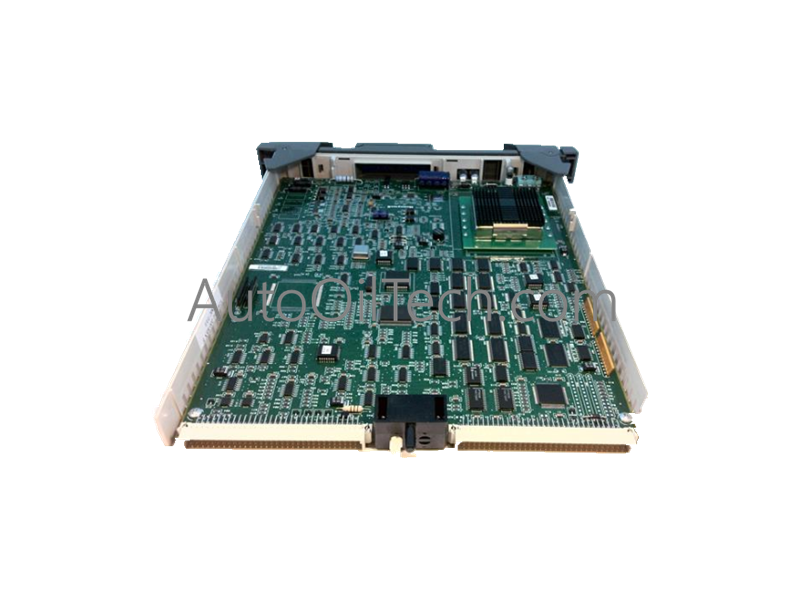

Honeywell BU/BC-THAI11 42622268-002

The Honeywell BU/BC-THAI11 42622268-002, also cataloged as the BU/BC-THAI11 FTA Module, operates as a dedicated hardware component for 16-channel analog input conditioning and digital telemetry extraction within Experion PKS networks. The system interfaces directly with field transmitters, converting analog current loops while routing bidirectional highway addressable remote transducer (HART) digital variables to downstream processing nodes.

Hardware Specifications

Process Control and DCS Metrics

• 4-20 mA HART Loop Protocol Integration: The module incorporates dedicated modem filters on each of the 16 input channels to separate the analog current carrier from high-frequency digital signaling layers. This physical circuit architecture allows the module to extract secondary process variables, device calibration diagnostics, and actuator health parameters via the 4-20 mA HART loop protocol without degrading primary control response.
• Channel-to-Channel Isolation and Noise Suppression: To secure backplane processing networks against destructive field potentials, the module employs robust galvanic barriers. This layout establishes clear channel-to-channel isolation parameters, attenuating common-mode noise voltages, grounding offsets, and cross-talk frequencies before the analog signals undergo analog-to-digital digitization.

Frequently Asked Questions

Q: How does the BU/BC-THAI11 maintain measurement accuracy across its wide operating temperature limits?

A: The module relies on ultra-low-drift precision sensing resistors and continuous internal self-calibration cycles. By counteracting component variance from -40 to +85 deg C, the assembly constrains thermal measurement drift to stay within the strict +/- 0.1% of span specification.

Q: What happens to the HART data stream if an external 24 VDC field loop failure occurs?

A: A loop failure or open-circuit condition drops the baseline analog loop current below standard operating limits. While the physical current loss halts the HART carrier wave on that specific channel, the module's localized fault isolation isolates the disrupted path, keeping the remaining 15 channels operational.

Field Installation Guidelines

• Chassis Layout Alignment, Clearance Constraints, and Mechanical Seating: Secure the assembly base plate directly onto the heavy-duty vertical DIN rail inside the marshaling enclosure. Ensure the integrated locking clips engage fully along the mounting track, and maintain a minimum 50 mm vertical ventilation perimeter above and below the termination terminal strip to prevent heat pooling.
• Conductor Separation, Wireway Constraints, and Shield Grounding: Route all 16 channels of low-voltage instrument wiring through separate low-voltage panel wireways away from high-potential AC lines or motor power circuits. Terminate each field transmitter shield wire cleanly at the module's dedicated grounding terminal block, establishing a single low-impedance connection to the cabinet copper ground bus.
