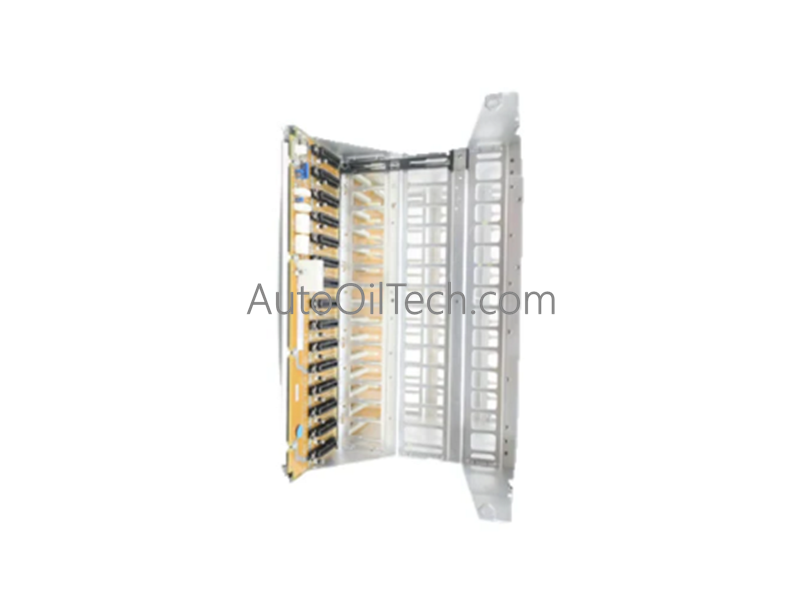

Honeywell 51404127-150 PLC Module
No reviews
In stock!
- Part Number: 51404127-150
- Brand: Honeywell
- Type: PLC Module
- Dimensions: 3.7×14×13.6cm
- Country of Origin: USA
- Barcode: 8537101190
Compartir
Additional Specifications
| Color / Pattern |
|
| Power Source |
|
| Communication Protocols |
|
| Controller Design |
|
Descripción del Producto
The Honeywell 51404127-150, also cataloged as the 51404127-150 15-slot Redundant PMM I/O Backplane, operates as a dedicated hardware component for high-density signal distribution and data path redundancy within gas turbine control systems. The structural assembly forms the primary electrical and mechanical foundation utilized to house, power, and interconnect critical processing and interface modules.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51404127-150 |
| Brand | Honeywell |
| Origin | United States (USA) |
| Weight | Standard high-density industrial card-cage assembly mass profile |
| Dimensions | 15-slot standard Process Manager module footprint |
| Operating Temp | -40 to +70 deg C (Standard industrial control room tolerances) |
| Power Consumption | Pass-through layout (Internal configuration tracking draw is negligible) |
| Chassis Slot Count | 15 available slots for I/O modules |
| Architecture | Fully redundant power and communication data bus traces |
| System Compatibility | Honeywell Process Manager / Experion PKS Series |
Honeywell DCS Integrated Signal Processing
- 4-20 mA HART Loop Protocol Path Mapping: The 15-slot trace matrix contains dedicated lines compiled to split and route digital field data. It facilitates continuous parallel transfers of multi-variable digital parameters sourced via the 4-20 mA HART loop protocol, passing sensor arrays from field transmitters straight to the central control cores.
- Channel-to-Channel Isolation Optimization: The physical distance separating each of the 15 slot interfaces supports structural channel-to-channel isolation metrics across the backplane. This layout limits electrical cross-talk, preventing electrical ground loops or high-energy field spikes on one I/O module from spreading across parallel data buses.
Frequently Asked Questions
Q: How does the redundant backplane architecture preserve system uptime during an active component fault?
A: The backplane features mirrored, parallel power distribution traces and redundant communication paths. If an active I/O pack or power feed suffers an electrical failure, the tracking secondary controller instantly carries the signal processing load without inducing a system timeout or a control loop trip.
Q: Are there any specific hot-swap constraints when replacing modules within the 15-slot frame?
A: Live extraction and insertion of matching I/O modules are fully supported by the hardware pins. However, engineers must verify that the corresponding loop software logic has been toggled to an inactive or bypassed state to prevent spurious trip signals from propagating during physical unseating.
