- Honeywell 51404126-150 HPMM 7-Slot Card File Assembly
Oferta

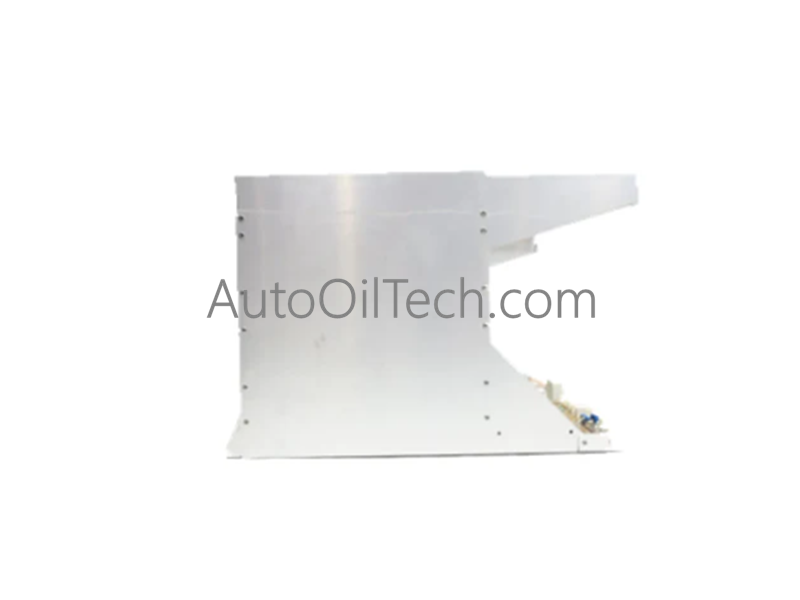

Honeywell 51404126-150 HPMM 7-Slot Card File Assembly
No reviews
In stock!
- Part Number: 51404126-150
- Brand: Honeywell
- Type: HPMM 7-Slot Card File Assembly
- Dimensions: 3.7×14×13.6cm
- Country of Origin: USA
- Barcode: 8537101190
Compartir
Additional Specifications
| Color / Pattern |
|
| Power Source |
|
| Communication Protocols |
|
| Controller Design |
|
Descripción del Producto
Configured for mechanical stabilization and centralized communication bus distribution in High-Performance Process Manager architectures, the Honeywell 51404126-150 (51404126-150 Card File Assembly) provides direct physical/electrical execution. The industrial-grade metal chassis acts as a structural hosting framework containing an integrated backplane assembly to interconnect processing modules and I/O interface cards.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51404126-150 |
| Brand | Honeywell |
| Origin | United States (USA) |
| Weight | 4 kg (8.82 lbs) |
| Dimensions | 24 in x 36 in x 84 in (Overall cabinet rack space listing reference) |
| Operating Temp | 0 to +60 deg C (Standard industrial control room parameters) |
| Power Consumption | Pass-through backplane network distribution (Static structural assembly) |
| Chassis Slot Count | 7 Module Slots |
| Mounting Placement | Right-side configuration for rack integration |
| Environmental Armor | Conformal coating (CC) factory applied across electronic traces |
| System Compatibility | Experion PKS, TotalPlant Solution (TPS), TDC 3000 |
| Product Type | 7-Slot HPMM / IOP Card File Assembly |
| Certifications | UL Rack Listing |
Honeywell DCS Integrated Signal Processing
- Channel-to-Channel Isolation Air-Gap Shielding: The structural layout of the card file secures individual cards inside dedicated metal slot tracks, optimizing channel-to-channel isolation distances between adjacent communication and controller blocks. This physical segmentation minimizes high-frequency radiative cross-talk across parallel internal diagnostic buses.
- 4-20 mA HART Loop Protocol Path Convergence: The integrated HPMM backplane bus segments trace pathways to handle power distribution and high-velocity protocol strings. It maps real-time data from 4-20 mA HART loop protocol configurations directly across the internal backplane traces, enabling uninterrupted processing by central control units.
Frequently Asked Questions
Q: What are the specific protection capabilities provided by the factory conformal coating?
A: The factory-applied conformal coating provides a protective barrier against localized high-humidity condensation, conductive airborne dust particles, and minor corrosive chemical vapor exposure, protecting backplane trace lines from short-circuit degradation inside harsh processing environments.
Q: Is hot-swapping of live I/O cards permitted within the 51404126-150 backplane?
A: Yes, the integrated backplane traces support live module extraction and insertion. However, maintenance personnel must follow standard Honeywell control system practices to ensure the module being swapped is logically unlinked and isolated from active trip loops before physical extraction.
