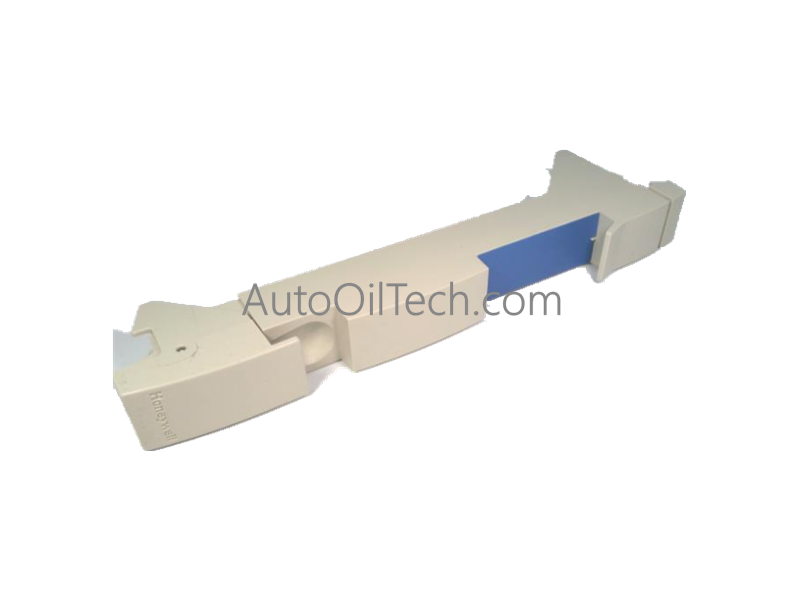

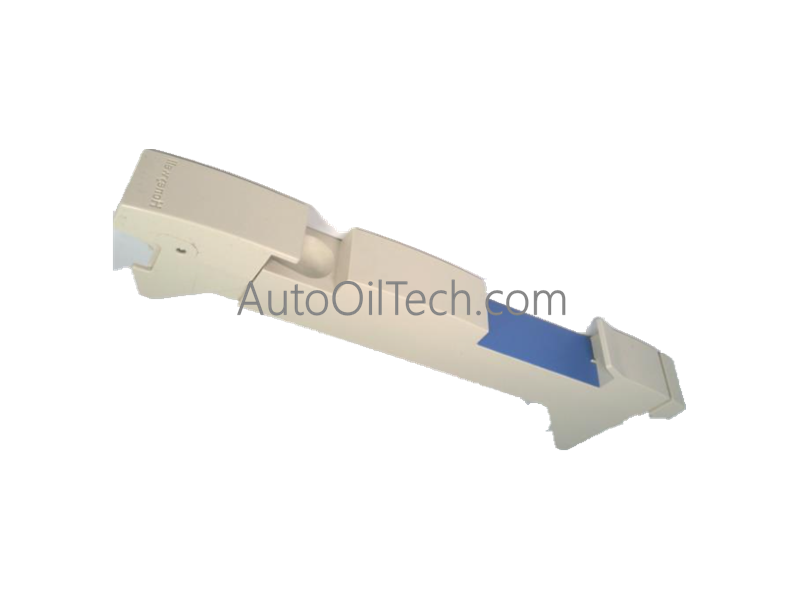

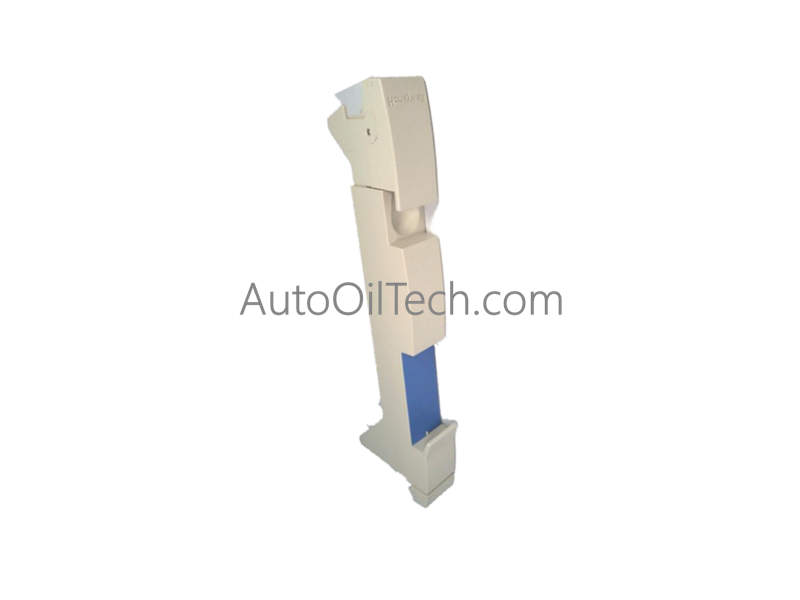

Honeywell 51309228-300 Chassis Slot Filler Panel

Configured for mechanical structural isolation and environmental airflow management within process automation controller racks, the Honeywell 51309228-300 (51309228-300 Filler Panel) provides direct physical execution. The specialized unpowered faceplate assembly mounts natively at the hardware tier to seal unused slot spaces across Honeywell distributed control system (DCS) chassis frames.

Hardware Specifications

Process Control & DCS Instrumentation Network Topology

• Convection Thermomanagement and Cooling Airflow Routing The blank faceplate assembly maintains the structural integrity of the internal enclosure cooling paths. By sealing open, unpopulated slot paths, it prevents the forced-air cooling stream generated by cabinet fans from short-circuiting out through vacant rack spaces, forcing the cooling air to move across adjacent, active processing units and high-density I/O cards.
• Particulate Ingress Isolation and Faraday Cage Continuity The steel plate construction acts as a localized environmental shield over the open backplane terminal paths. It blocks conductive particulate matter, airborne moisture droplets, and dropped installation hardware from contacting live backplane bus lines, while preserving the physical continuity of the grounded front-panel surface.

Frequently Asked Questions

Q: What operational hazards are introduced if vacant chassis slots are left open without a 51309228-300 panel?

A: Leaving open gaps in an active rack changes the intended cabinet air pressure dynamics, reducing air velocity across adjacent high-heat modules (such as power supplies and communication processors). This can lead to localized thermal pockets, accelerating component degradation and triggering unexpected high-temperature watchdog trips.

Q: Can this passive filler panel be installed or removed while the rest of the control rack is powered up and executing logic?

A: Yes, because the panel is a completely passive mechanical shield with no internal electrical circuits or backplane connectors, it can be mounted or removed at any time without impacting active backplane data lines or causing electrical noise on nearby active I/O cards.
