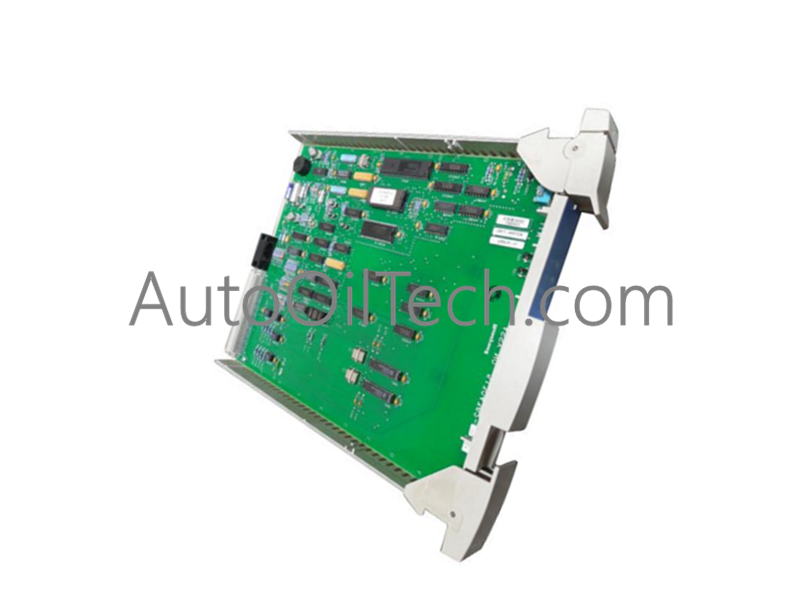

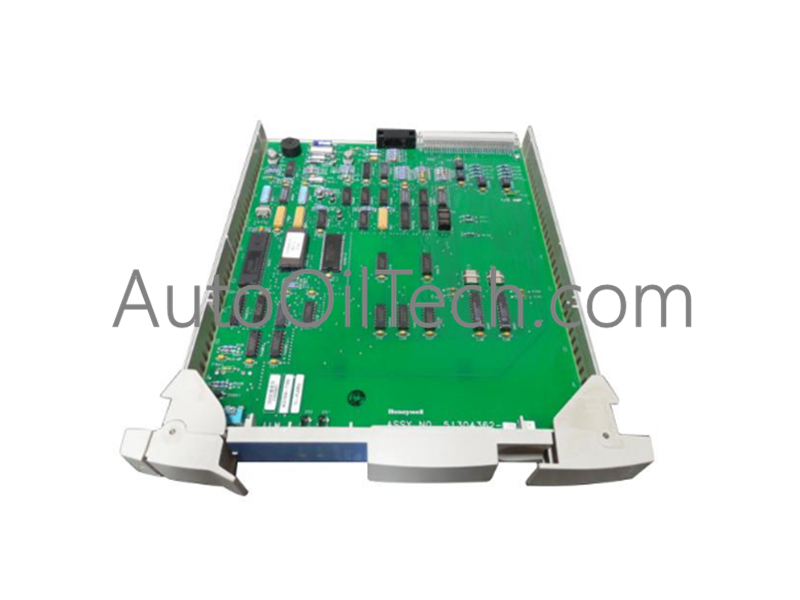

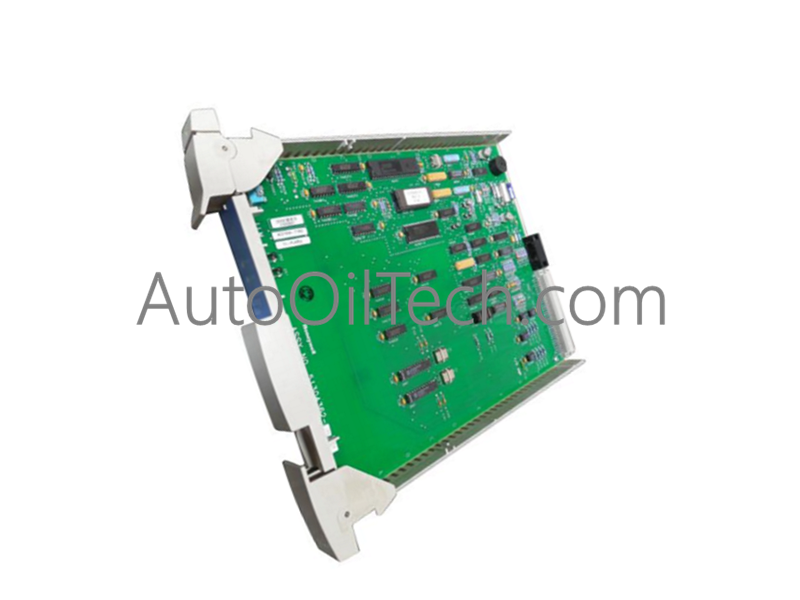

Honeywell 51304362-100 Low Level Analog Multiplexer Module

Configured for high-precision low-level analog multiplexing in distributed control systems, the Honeywell 51304362-100 (MU-PLAM02 Control Card) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

The unit is cataloged under standard Honeywell hardware matrices where the base designation identifies the low-level analog multiplexer architecture, and the numeric suffix indicates specific manufacturing revisions and factory configuration baselines.

Hardware Specifications

Channel-to-Channel Isolation and HART Loop Interfacing

The module manages low-level analog multiplexing while maintaining comprehensive channel-to-channel isolation to prevent common-mode voltage propagation and measurement errors across sensitive input loops. Signal processing circuitry handles low-level inputs such as thermocouple measurements, utilizing internal cold junction compensation (CJC) blocks where required and ensuring seamless integration with standard 4-20 mA HART loop protocol architectures in the host control network.

Frequently Asked Questions

Q: What are the hot-swap constraints when replacing the 51304362-100 module in an active rack?

A: The card supports live replacement procedures provided that local slot power is stable and standard electrostatic discharge (ESD) wrist straps are used. The specific channel address must be forced to offline maintenance mode via the configuration console before extraction.

Q: How does the module handle low-level signal filtering against electromagnetic interference?

A: Integrated analog filtering and differential inputs suppress high-frequency noise and common-mode transients prior to multiplexed analog-to-digital conversion.

Q: What precautions are necessary for field wiring termination?

A: Low-level signal wiring must utilize twisted, shielded pair cables with shields grounded exclusively at the cabinet ground bar to prevent ground loops and signal corruption.

Field Installation Guidelines

Secure the control card into the designated rack slot, ensuring proper backplane pin alignment. Fasten any retention screws securely. Run all low-level signal cables separately from high-voltage AC power lines and variable frequency drive cables to minimize electromagnetic coupling.
