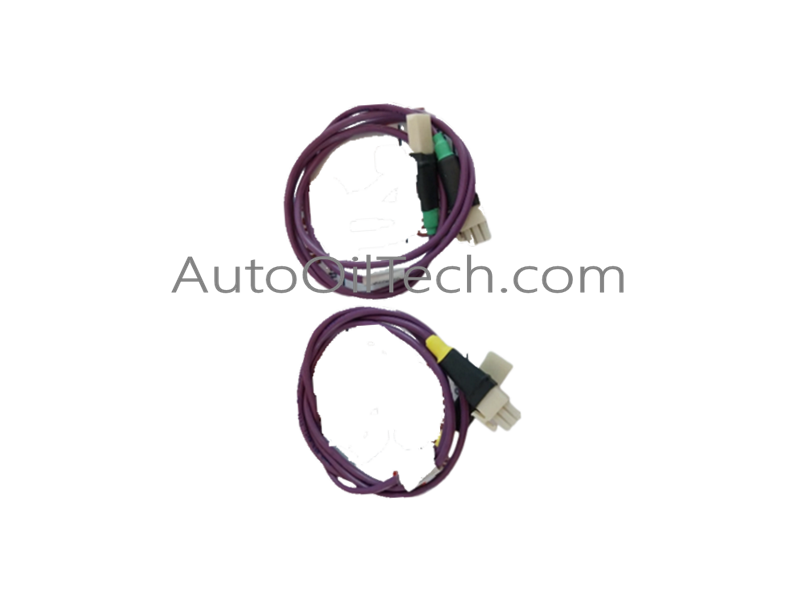

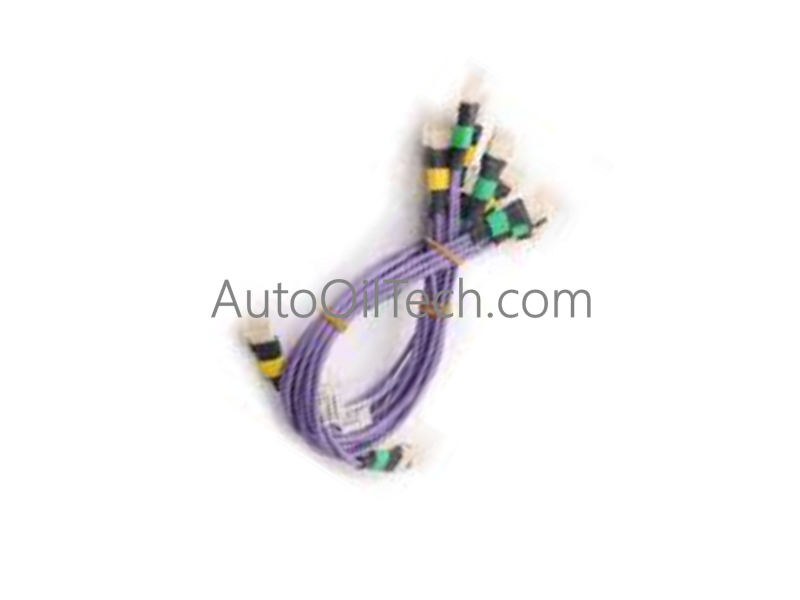

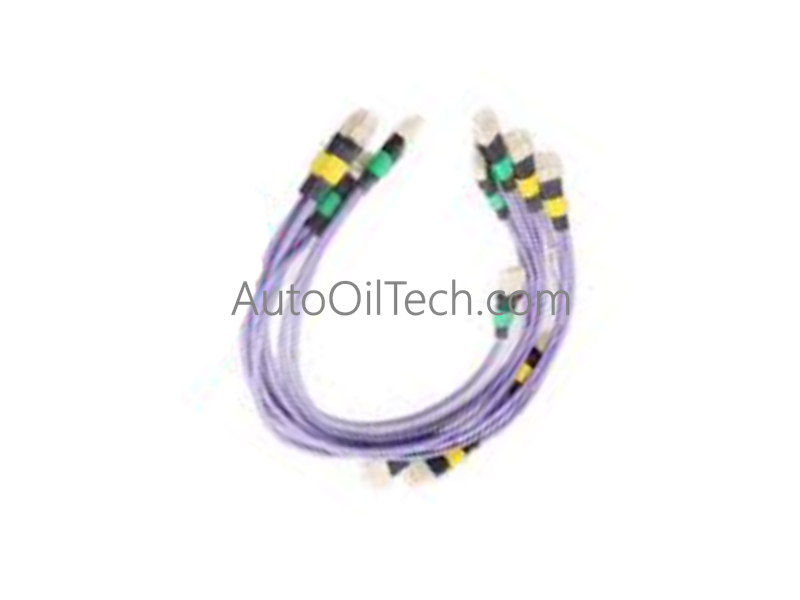

Honeywell 51202789-901 IO Link Extender Cable Kit

Configured for high-density I/O subsystem interconnection within Experion PKS distributed control system (DCS) platforms, the Honeywell 51202789-901 (51202789-901 MOXA IO Link Extender Cable Kit) provides direct physical/electrical execution. It physically bridges remote input/output modules over extended distances, ensuring continuous, error-free serial and Ethernet-based communication routing between peripheral hardware nodes and central processing blocks.

Hardware Specifications

Distributed Process Control & DCS Interconnects

• 4-20 mA HART Loop Protocol and Fieldbus Routing Layer The high-grade copper alloy infrastructure transmits integrated digital telemetry packets from multi-channel field arrays without frame distortion. It maintains a transparent electrical link capable of carrying serialized data, allowing remote 4-20 mA HART device variables to map directly onto central DCS backplane registers across extended physical layout boundaries.
• High-Temperature Insulation and Noise Suppression The internal conductors are wrapped in premium Teflon insulation, preventing dielectric breakdown under extreme thermal conditions up to +150 deg C. Onboard structural separation within the multi-pair cable matrix minimizes internal capacitive and inductive coupling, suppressing cross-talk and protecting low-voltage communication signals from adjacent high-energy plant transients.

Frequently Asked Questions

Q: What are the primary advantages of the Teflon insulation specified in the 51202789-901 kit?

A: The Teflon (PTFE) insulation provides high thermal and chemical resistance, allowing the cable assembly to operate continuously in environments from -40 to +150 deg C. It maintains low dielectric loss characteristics, which prevents high-frequency communication signal attenuation over extended distances while resisting degradation from moisture, oils, and industrial solvents.

Q: Can this RJ45 extender cable handle both standard Ethernet and specialized industrial bus signals?

A: Yes. The kit is engineered with the specific characteristic impedance and shielding tolerances required to support high-speed MOXA IO Link extensions and standard industrial Ethernet fieldbuses. It passes differential signal voltages up to its maximum 250 VAC structural insulation rating without dropping packets.

Field Installation Guidelines

• Connector Alignment, RJ45 Seating, and Mechanical Latching Align the male RJ45 plug clip cleanly with the mating port on the MOXA extender or Honeywell baseplate module. Push the connector straight into the interface jack until the integrated plastic retention tab clicks firmly into place, ensuring a secure connection that cannot be dislodged by low-frequency industrial vibrations.
• Cable Routing Constraints, Bend Radius, and Shield Grounding Blocks Route the extender cable assembly through dedicated, grounded steel wireways completely separated from heavy high-voltage power lines or variable frequency drive (VFD) output cables. Maintain a minimum static bend radius of ten times the outer cable diameter to prevent mechanical stress on the internal copper alloy strands, and terminate the cable shield directly to the plant instrument grounding bar at a single point.
