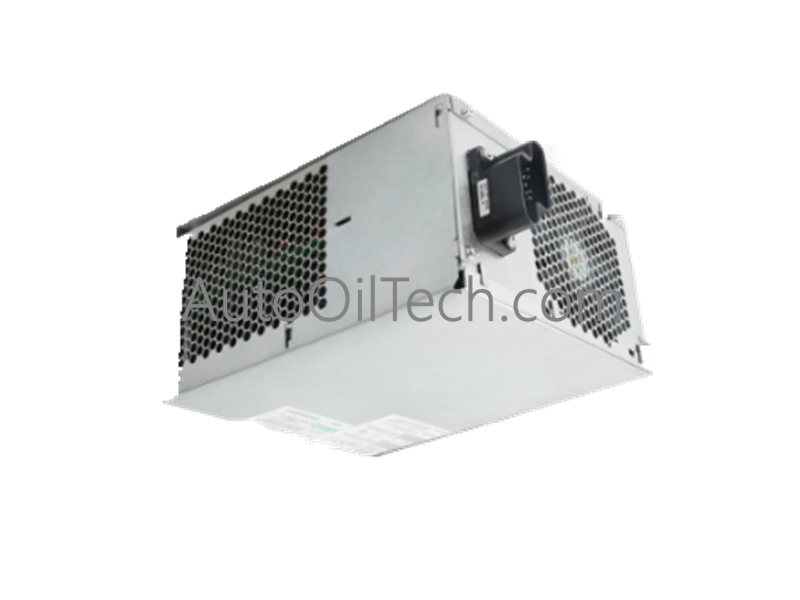

Configured for reliable power distribution in Honeywell Universal Control Network (UCN) systems, the Honeywell 51198651-100 (SPS5785 Power Supply Module) provides direct physical/electrical execution.
Suffix Breakdown & Model Matrix
The functional product number designates specific hardware attributes:
51198651-100: Denotes the specific Honeywell part number identifier.
SPS5785: Specifies the high-performance power supply module series.
Hardware Specifications
Parameter
Specification
Model
51198651-100 (SPS5785)
Brand
Honeywell
Origin
USA
Weight
5.18 kg
Dimensions
21.6 cm (L) x 29.6 cm (W) x 14 cm (H)
Operating Temp
Standard Industrial DCS Rating (-20 deg C to +60 deg C)
Power Consumption
Input Voltage: 100-240 VAC / Output: Multiple DC and AC outputs
Core Function
AC/DC Power Supply and Regulation for UCN Cabinets
Channel-To-Channel Isolation and Loop Integrity
Integrated within distributed process control architectures, the Honeywell 51198651-100 ensures strict electrical separation and signal stability across power distribution circuits.
Channel-To-Channel Isolation: Incorporates robust internal partitioning to prevent common-mode noise propagation between AC input lines and sensitive DC output rails.
Stable Power Delivery: Provides regulated multiple DC outputs (including 5V and 24V) alongside AC outputs to support PM, APM, and HPM equipment cabinets.
Reliable Operation: Delivers stable, continuous power essential for smooth performance in industrial environments.
Frequently Asked Questions
Q: What systems are compatible with the Honeywell 51198651-100 power supply module?
A: It is specifically designed for Honeywell UCN systems, including PM, APM, and HPM equipment cabinets.
Q: What are the input and output electrical types for this module?
A: The module features an AC input type (100-240 VAC) and provides both AC and DC output types, including 5V and 24V DC outputs.
Field Installation Guidelines
Power Isolation: De-energize all incoming 100-240 VAC power feeds supplying the equipment cabinet prior to handling or mounting the module.
Electrostatic Discharge Protection: Connect an approved grounding wrist strap to the cabinet earth terminal prior to touching internal electronic components.
Mechanical Mounting: Secure the module securely into the designated cabinet structure, ensuring proper alignment with rack connections given its 5.18 kg weight.
Wiring Verification: Confirm that all input and output power terminal connections are securely fastened to maintain system reliability.
