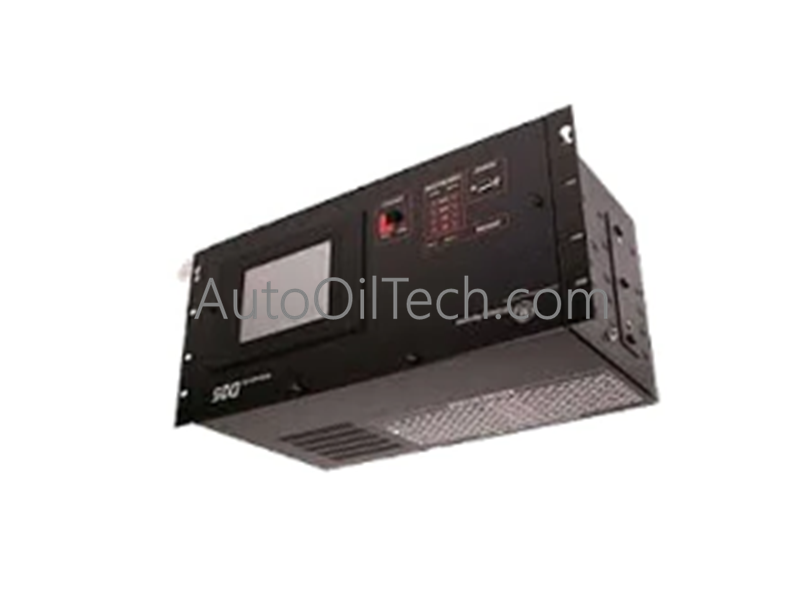

GE Multilin D25-A36A-9333-3CAA-AA1B-1A Substation Controller
No reviews
In stock!
- Part Number: D25-A36A-9333-3CAA-AA1B-1A
- Brand: Honeywell
- Type: Substation Controller
- Dimensions: 3.7×14×13.6cm
- Country of Origin: USA
- Barcode: 8537101190
Compartir
Additional Specifications
| Color / Pattern |
|
| Power Source |
|
| Communication Protocols |
|
| Controller Design |
|
Descripción del Producto
The GE Multilin D25-A36A-9333-3CAA-AA1B-1A, also cataloged as the D25-A36A-9333-3CAA-AA1B-1A Substation Controller, operates as a dedicated hardware component for multi-protocol data concentration, localized power line harmonic evaluation, and high-density digital I/O orchestration within electrical substation grids. It handles hardware telemetry parsing and event scheduling natively at the node tier to sync field devices parallel to master control network platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | D25-A36A-9333-3CAA-AA1B-1A |
| Brand | GE General Electric / Multilin |
| Origin | United States |
| Condition | New with Original Package |
| Warranty | 12 months standard industrial coverage |
| Product Type | Substation Controller / Remote Terminal Unit (RTU) |
| Digital Inputs | Up to 96 channels maximum capacity |
| Digital Outputs | Up to 32 channels maximum capacity |
| Analog Inputs (DC) | Up to 32 channels maximum capacity |
| AC Analog Inputs | Up to 15 channels maximum capacity |
| Fault Data Recording | Up to 16 MB local non-volatile storage allocation |
| Waveform Logging Format | COMTRADE standard format recording structures |
| Harmonic Analysis | Up to the 21st harmonic sequence calculated per AC input |
| Local Interface | Integrated, fully functional local HMI display subsystem |
| Protocol Adaptability | Over 120 SCADA standard profiles (IEC 61850, DNP3, Modbus, SPA Bus, Courier, IEC 101/103/104) |
Industrial Control & Drive Integration
- Backplane Bus Communication Velocity Licences and Processing Logic: Internal mathematical math units process raw AC voltage and current waves directly to extract harmonic signatures up to the 21st order on all 15 AC paths. Because this complex waveform transformation and 16 MB COMTRADE fault data logging run inside isolated memory sectors, deep parameter capturing cycles do not limit the backplane bus communication velocity attributes assigned to adjacent telemetry modules.
- Profinet / EtherNet/IP Deterministic Networks Mapping: Local telemetry structures, multi-protocol data packets, and calculated power profiles are mapped into internal tracking tables. These data sets translate over active Profinet / EtherNet/IP deterministic networks or native IEC 61850 station buses through the controller's Ethernet ports, providing instantaneous process monitoring updates without data alignment delays.
- I/O Density Scaling and Multi-Channel Enclosure Framework: Consolidating up to 96 digital inputs, 32 digital outputs, and 47 separate analog paths into a modular frame increases layout efficiency inside central automation panels. This integration increases local I/O density scaling capabilities, allowing the RTU to act as a centralized data hub for downstream intelligent electronic devices (IEDs) without requiring separate auxiliary interface sub-racks.
