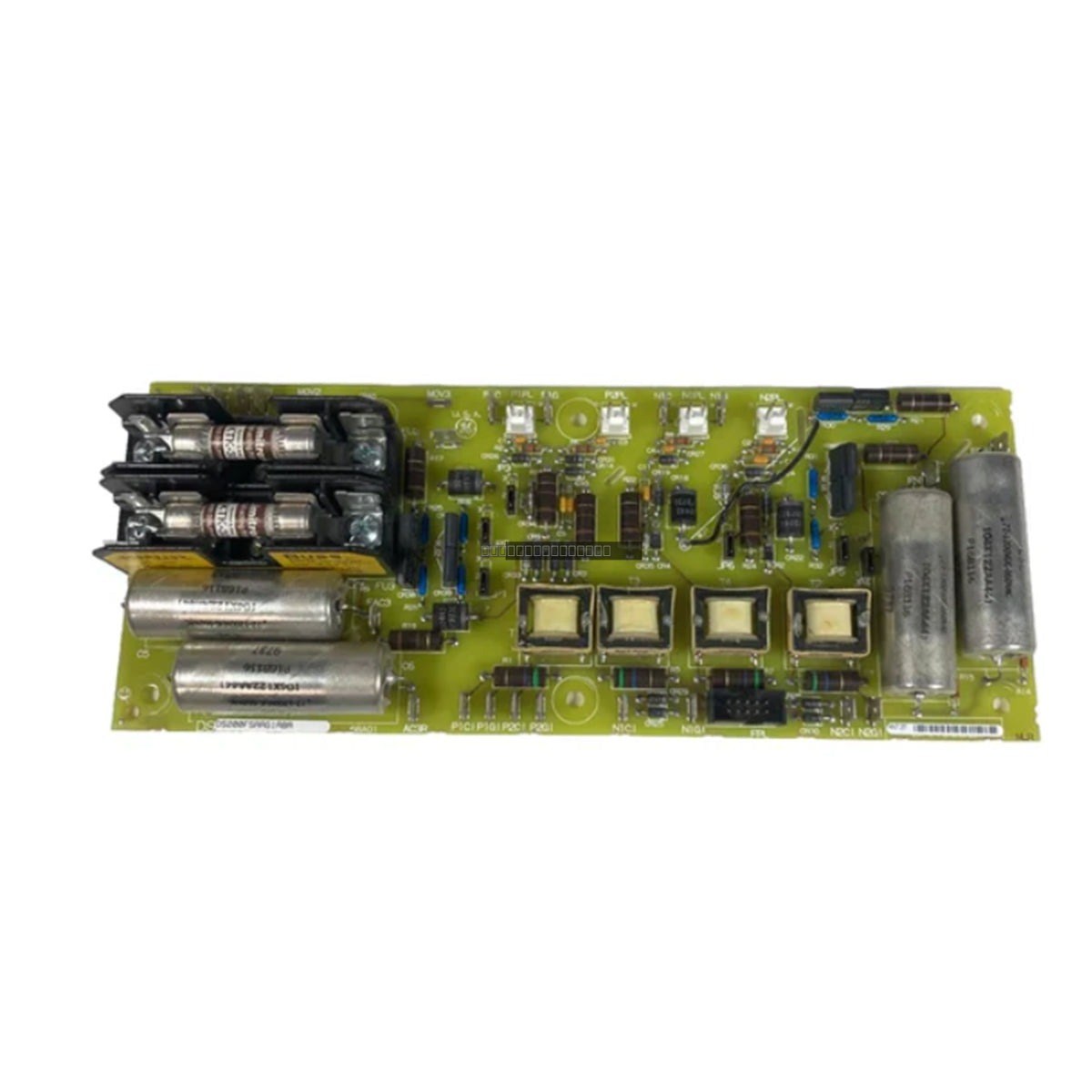

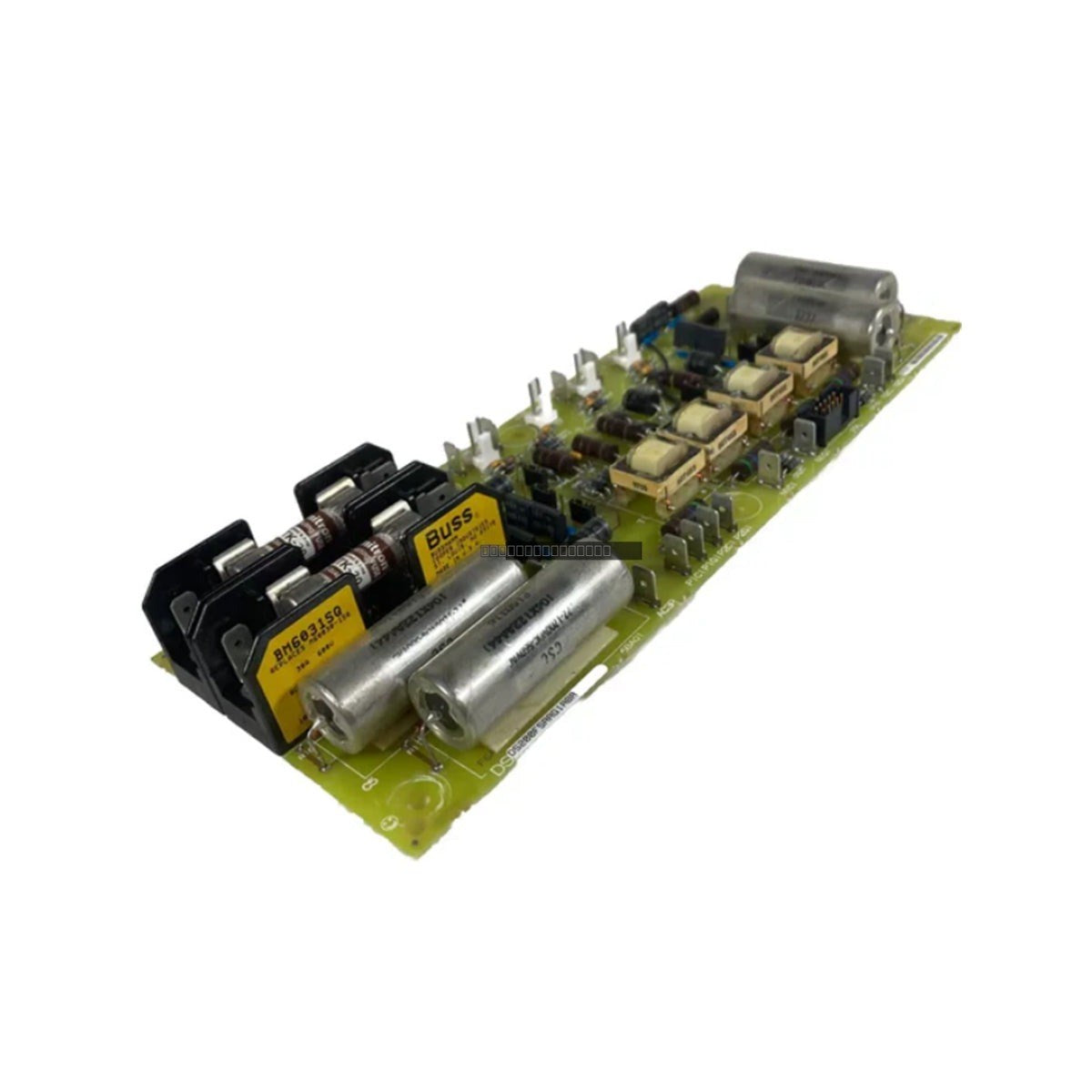

The GE Fanuc DS200FSAAG1A is a dedicated Field Supply Amplifier board designed for the Mark V Speedtronic turbine control platform. This component plays a critical role in regulating excitation current for motor drives and generators, ensuring consistent performance in demanding industrial settings such as power generation facilities and large-scale mining operations.
Features
Precise Excitation Control: Facilitates stable magnetic field regulation by providing reliable signal amplification for turbine and drive systems.
Diagnostic Accessibility: Features multiple onboard test points to support efficient troubleshooting and reduce system downtime.
Integrated Circuit Protection: Equipped with two 30 Amp fuses to guard against overcurrent events, with a layout that allows for quick inspection and replacement.
Energy Management: Utilizes four high-capacity electrolytic capacitors to manage energy storage and discharge cycles effectively.
Configurable Settings: Includes five jumper sets for hardware-level configuration; matching these settings to the original unit is essential during replacement.
Applications
This amplifier board is primarily deployed within GE Mark V control systems, supporting the operation of heavy-duty industrial turbine generators and high-voltage motor drive assemblies.
Installation Guidelines
Power Safety: Always ensure the system is fully de-energized and discharge any stored energy from the capacitors before attempting to remove or install the module.
Mounting: Use the four corner mounting holes to secure the board via standoffs. Ensure all screws are tightened to provide adequate vibration resistance.
Jumper Configuration: Before commissioning, verify that the jumper positions on the new board are identical to those on the unit being replaced to maintain system calibration.
Handling: Observe standard ESD (Electrostatic Discharge) precautions when handling the circuit board to prevent damage to sensitive electronic components.
Technical Specifications
Model
DS200FSAAG1A
Series
Mark V
Function
Field Supply Amplifier
Interface
10-pin connector
Fusing
2 x 30 Amp
Jumpers
5 Configurable
Operating Temp
0 to 60 deg C
FAQ
Q: Does this board require special configuration during replacement? A: Yes, the DS200FSAAG1A includes five jumper sets. You must ensure the jumper configuration of the replacement board matches the original board exactly to ensure proper system operation.
Q: How can I verify the health of the board? A: The board features multiple onboard test points designed for rapid diagnostic checks, allowing maintenance personnel to verify signal integrity during routine inspections.
