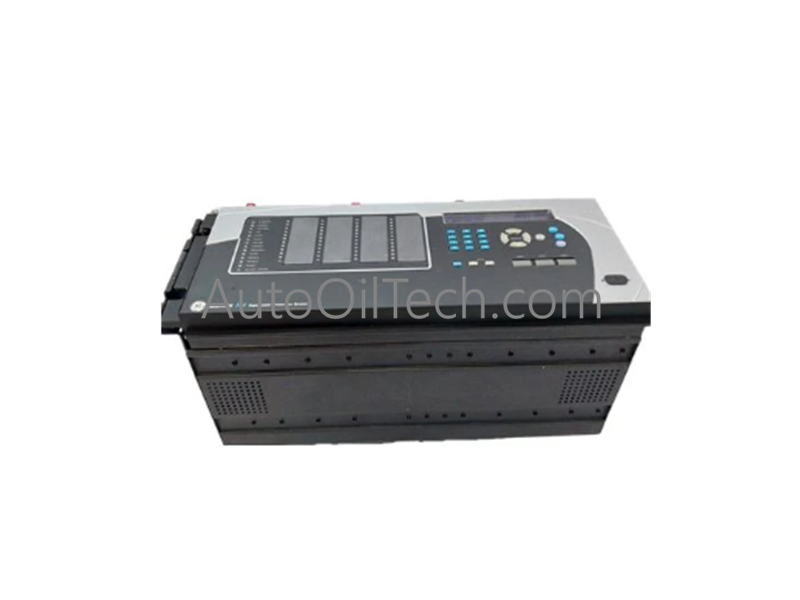

GE L90-E00-HCH-F8F-H6B-L6E-N6U-S6S-U6A-W7C Line Current Differential System

The GE Multilin L90-E00-HCH-F8F-H6B-L6E-N6U-S6S-U6A-W7C, also cataloged as the L90 Line Current Differential System, operates as a dedicated hardware component for high-speed sub-cycle protection, transmission line phase-segregated fault clearance, and automated breaker reclosing synchronization within substation automation and utility protection networks. The multi-functional micro-processor device executes localized line monitoring and digital power grid telemetry analysis natively at the hardware tier to isolate line fault variables across segmented network domains.

Hardware Specifications

Industrial Control & Drive Communications

• Profinet / EtherNet/IP Deterministic Networks and Embedded Switching Logic The relay incorporates an advanced Type V CPU structure with a built-in managed Ethernet matrix containing three 100BaseT interfaces. This digital layer handles real-time peer-to-peer communication frames via IEC 61850 GOOSE and Modbus TCP/IP protocols parallel to the primary differential calculations, processing remote device signals with minimal jitter across deterministic substation utility grids.
• I/O Density Scaling and Analog Signal Phase Matching The hardware platform scales signal isolation metrics by grouping 16 fast digital inputs and a high-accuracy 4CT/4VT analog sampling grid inside a single shielded, rack-mounted frame. The 4CT/4VT modules track secondary voltage and current waveforms at 64 samples per cycle, executing continuous Fourier phase adjustments and channel asymmetry tracking over single-mode optical lines to guarantee differential system stability during external fault transients.

Frequently Asked Questions

Q: What protective actions occur if the single-mode optical communication channel faces structural asymmetry?

A: The L90 internal time-synchronization processor tracks path metrics. If transmission delays create a channel asymmetry profile up to 10 ms, the system adjusts its internal clock using precise time-stamping data; beyond this limit, the unit safely shifts to backup distance and overcurrent protection modes to prevent a spurious trip.

Q: Can the main 125/250 V AC/DC power supply module be hot-swapped while the primary transmission line is live?

A: No, unseating or servicing internal hardware modules while the relay chassis remains energized is restricted. Removing modules during live runtime cuts control power, disables active line protection schemes, and risks inductive arcing that can permanently damage the Type V processor board.
