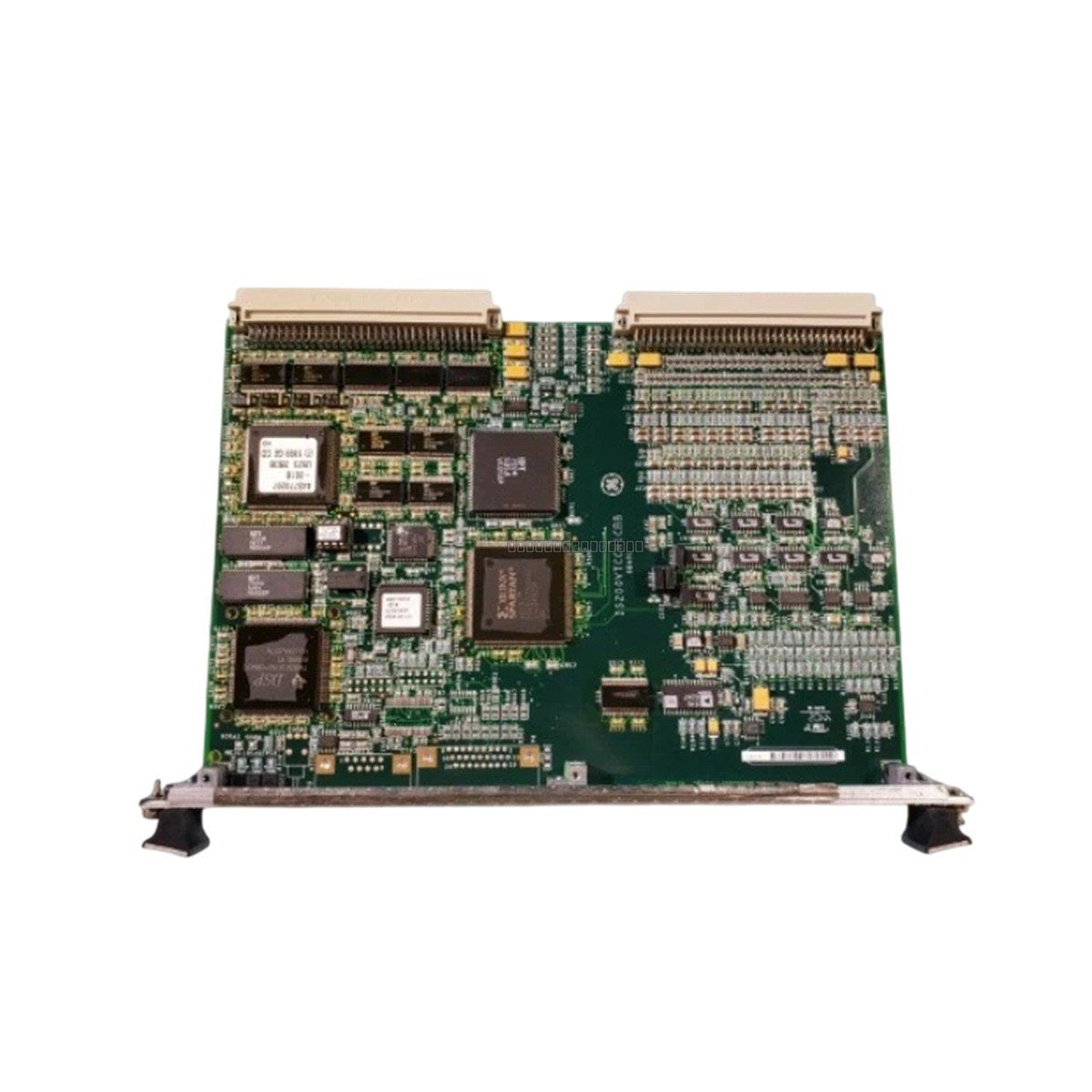

The IS200VTCCH1C is a thermocouple input module designed for the General Electric Mark VIe control system. This module serves as a critical interface for monitoring temperature signals from thermocouple sensors throughout industrial processes. It converts low-level voltage signals from thermocouples into digital data for processing by the Mark VIe controller, ensuring precise temperature monitoring and protection for critical rotating machinery and power generation assets.
Features
Designed for integration with the GE Mark VIe control platform.
Supports high-accuracy thermocouple signal acquisition.
Provides robust signal conditioning for industrial environments.
Compact board-level design for rack-mounted I/O configurations.
Compatible with standard thermocouple types used in power plant applications.
Applications
This module is primarily utilized in power generation, oil and gas, and heavy industrial applications where precise temperature monitoring is required. It is commonly found in gas turbine control systems, steam turbine monitoring, and balance-of-plant (BOP) control architectures.
Technical Specifications
Manufacturer
General Electric
Model Series
Mark VIe
Part Number
IS200VTCCH1C
Function
Thermocouple Input Module
Weight
0.28 kg
Tariff Code
8537101190
Installation Guidelines
ESD Protection: Always wear a grounded anti-static wrist strap when handling the module to prevent damage to sensitive electronic components.
Power Down: Ensure the I/O rack power is disconnected before installing or removing the module from the chassis.
Seating: Ensure the module is fully seated in the designated slot and that the retaining screws are tightened to ensure proper grounding and mechanical stability.
Wiring: Use shielded thermocouple extension wire to minimize electromagnetic interference (EMI). Ensure proper polarity is maintained during termination.
Environment: Maintain the module within the specified operating temperature range and ensure adequate ventilation within the control cabinet.
FAQ
Is this module compatible with the Mark VI system?
The IS200VTCCH1C is specifically designed for the Mark VIe series. While it shares functional similarities with older Mark VI components, please verify your specific system revision and hardware compatibility before installation.
What should I do if the module shows a fault?
First, verify that all thermocouple connections are secure and that there are no open circuits in the field wiring. Check the Mark VIe diagnostic software for specific error codes related to the input channel. If the fault persists, it may indicate a hardware failure requiring module replacement.
