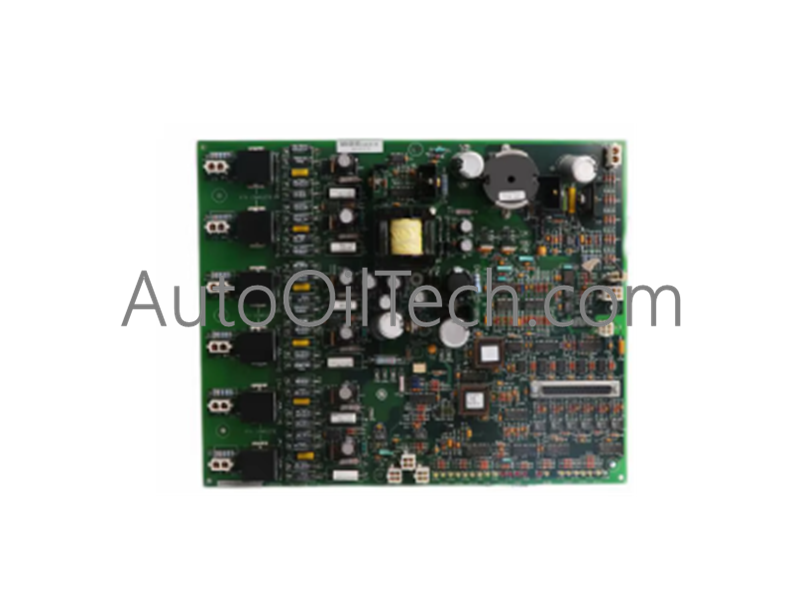

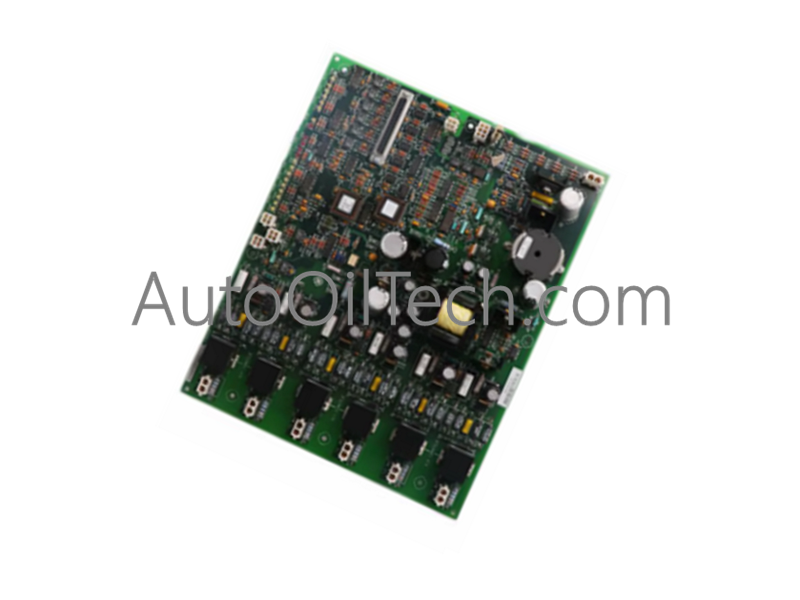

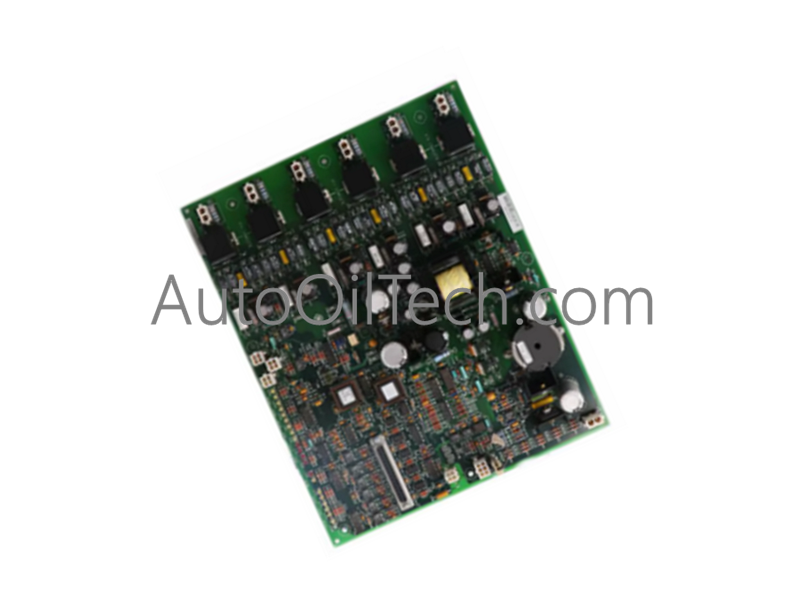

GE IS200EHPAG1BAA Gate Pulse Amplifier Board

Configured for gate pulse amplification in EX2100 and EX2100e excitation control systems, the GE IS200EHPAG1BAA (IS200EHPAG1BAA Gate Pulse Amplifier Board) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

Hardware Specifications

Backplane Bus Communication Velocity and Firmware Compatibility

The module interfaces via high-speed fiber-optic links directly connected to upstream ESEL logic boards to guarantee deterministic command execution without propagation delays. Firmware flash compatibility is managed through dedicated onboard memory blocks, ensuring synchronization with EX2100 control software revisions. Backplane bus communication velocity operates within rigid timing constraints to prevent phase errors during high-voltage silicon-controlled rectifier (SCR) triggering sequences. I/O density scaling allows single-slot deployment while maintaining isolated conduction feedback channels for all six controlled SCR paths.

Frequently Asked Questions

Q: What are the thermal operating limits and airflow requirements for the IS200EHPAG1BAA board?

A: The module functions within an ambient range of -30 deg C to +65 deg C. Onboard temperature and airflow sensors actively monitor thermal dissipation profiles inside the excitation cabinet to prevent overheating during continuous heavy load operation.

Q: How does the board interface with the upstream control architecture?

A: It receives fiber-optic gate commands directly from the ESEL logic board, converting optical signals into high-voltage electrical pulses to fire the power bridge SCRs.

Q: Are there hot-swap restrictions when replacing this module in an active cabinet?

A: Hot-swapping is restricted while the excitation bridge is energized. Main excitation power must be isolated and locked out prior to physical module extraction to prevent high-voltage arc flash or unintended generator field excitation.

Field Installation Guidelines

1. Ensure the excitation cabinet is fully de-energized and locked out in accordance with standard plant safety procedures before handling hardware.
2. Inspect the rack slot for mechanical obstructions and verify pin alignment on the backplane connector prior to insertion.
3. Slide the module along the designated chassis guide rails until the board is firmly seated against the backplane interface.
4. Secure the top and bottom retention screws to maintain mechanical stability and ground continuity against vibration.
5. Connect the fiber-optic communication cables to the designated optical ports, ensuring bend radii exceed minimum manufacturer thresholds to prevent signal attenuation.
6. Verify status LED indicators upon system power-up to confirm valid handshake communication with the ESEL logic board and normal internal power rail regulation.
