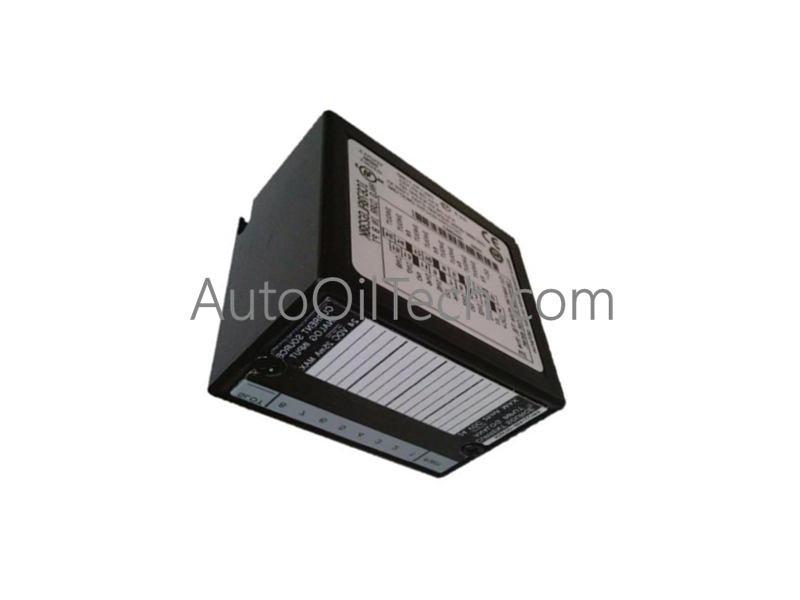

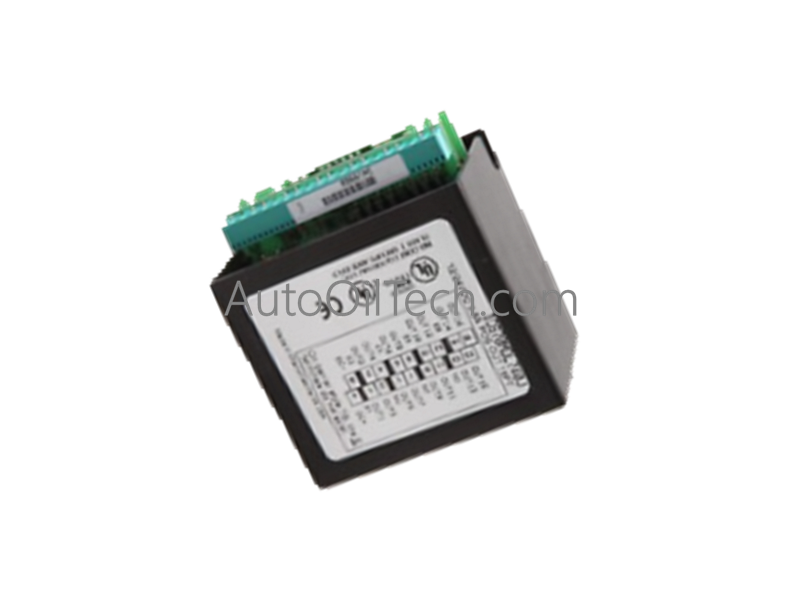

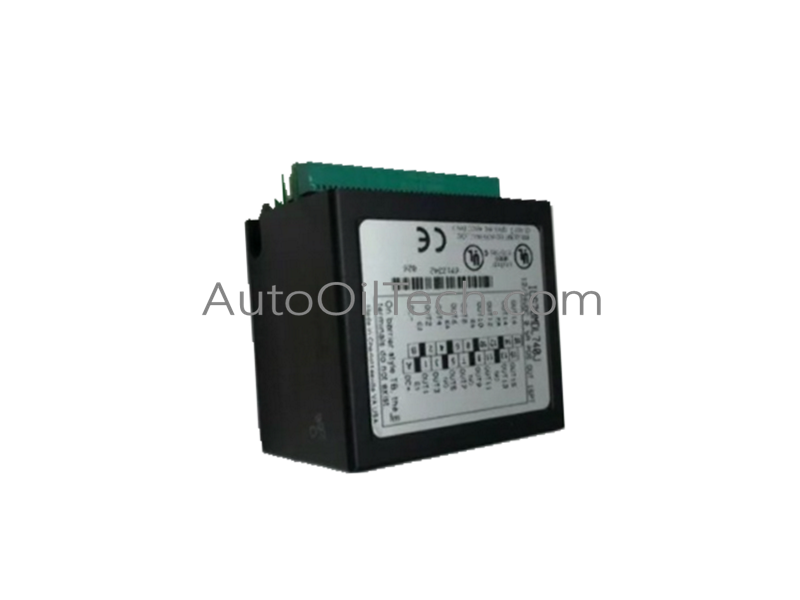

GE IC670ALG240 Analog Input

The GE Fanuc IC670ALG240, also cataloged as the IC670 Analog Input Module, operates as a dedicated hardware component for high-density current loop data acquisition within Field Control I/O stations. The sub-assembly samples continuous input transitions natively at the hardware tier to update internal registers across modular expansion frameworks.

Hardware Specifications

Industrial Control & DCS Instrumentation Interface

• 4-20 mA HART Loop Protocol System Segmentation The 16-channel high-density hardware block targets analog current loops originating from pressure, level, flow, and temperature transmitters. While the module executes high-resolution 16-bit Analog-to-Digital conversions natively for standard 0-20 mA and 4-20 mA pathways, upper-tier digital HART protocol sub-carrier frequencies must be filtered out or isolated externally to maintain pure analog registers across the passive parallel backplane bus.
• Channel-to-Channel Isolation Control and Signal Buffering The input circuitry incorporates a common-mode rejection ratio of 86 dB to ground, isolating the internal core logic processing components from industrial electrical noise. Built-in 2nd order RC hardware filters coupled with software-selectable line and averaging filters smooth incoming current signals, suppressing electromagnetic transients before passing data packets to the host Bus Interface Unit (BIU).

Frequently Asked Questions

Q: How can specific channels be modified to eliminate false open-wire alarms on unused points?

A: The module contains an internal Channel Active mode configuration register. Operators can programmatically set any unused channel as inactive through the station database, which prompts the firmware to stop sampling the designated pins and blocks false open-wire or underrange fault logs.

Q: Where are the module calibration values preserved, and can they be overwritten?

A: All factory and user calibration parameters are archived within on-board non-volatile flash memory. The module performs continuous self-diagnostics on this data; if a validation failure occurs, it triggers distinct diagnostic flags such as "module not calibrated" or "calibration data out of range" to notify the central controller.
