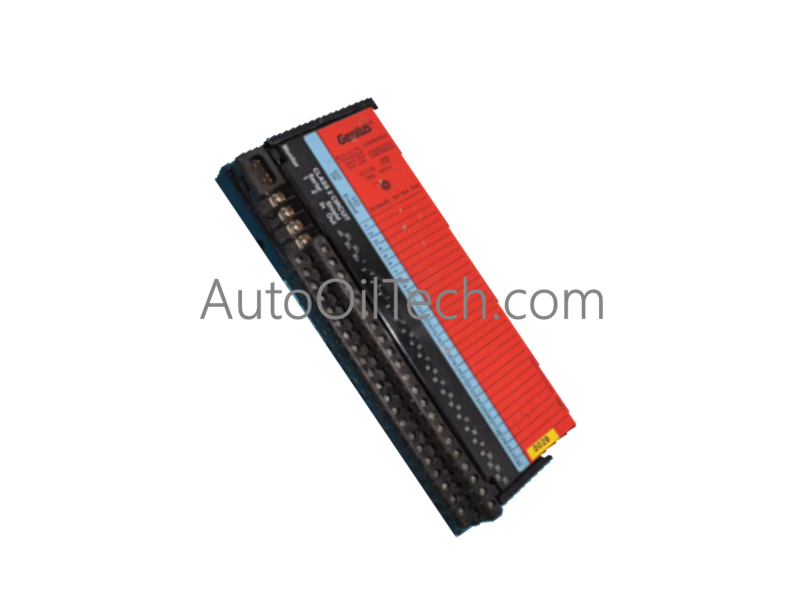

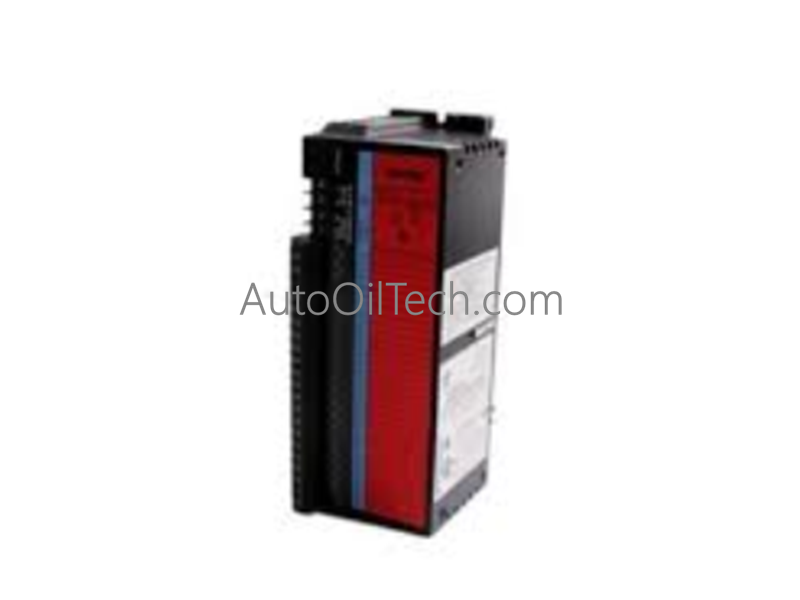

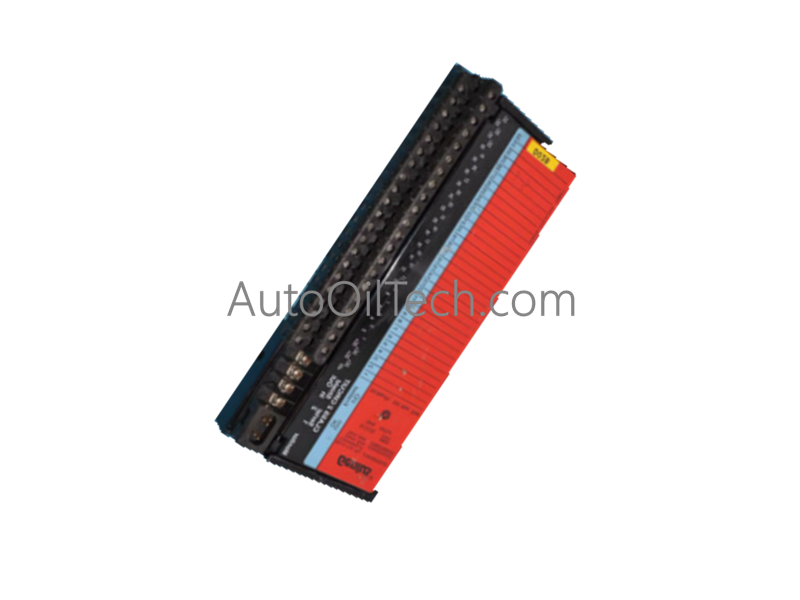

GE IC660BRD025 GMR Sinking Output Block

Configured for fault-tolerant discrete load modulation within safety-critical architectures, the GE Fanuc IC660BRD025 (IC660BRD025 Genius Sinking Output Block) provides direct physical/electrical execution. The distributed I/O assembly operates as a low-side hardware voter natively at the hardware tier to sink load current within Genius Modular Redundancy (GMR) subsystems.

Hardware Specifications

Industrial Control & Drive Communications

• Backplane Bus Communication Velocity Licences and Network Frame Delivery The module interfaces with the GMR processor grid via a dedicated Genius I/O serial network link. This high-speed serial bus transmits 32-point channel data, software commands, and hardware overrides parallel to the primary controller scan loop, bypassing typical backplane processing constraints during synchronized output voter updates.
• Hardware-Level Output Voting and Back-Drive Suppression The block executes physical layer voting logic directly at the terminal point when arranged in an H-Block matrix. Under this 4-block layout, two IC660BRD025 sinking blocks wire in parallel to the low side of each field load, while two sourcing blocks wire in parallel to the high side. Built-in blocking diodes and feedback resistors isolate each of the 32 channels, preventing back-drive current propagation and simplifying cross-strapped field terminal wiring.

Frequently Asked Questions

Q: How does the IC660BRD025 handle the physical voting process compared to the input subsystem?

A: Unlike GMR input subsystems which execute voting functions inside the controller software matrix, the output group voting is executed physically at the hardware level. The H-Block layout matches and compares the discrete states received from multiple independent PLCs, resolving discrepancies through the parallel-serial physical wiring architecture at the terminals.

Q: What programmatic or electrical faults manifest if parameters are adjusted while the Genius I/O bus is active?

A: Attempting to modify block configurations or addresses via the handheld monitor during active cyclic communication drops the module from the network. This triggers a missing node error register in the host PLC, forcing the adjacent voted blocks inside the H-Block group to assume the configured safety shutdown parameters.
