- GE IC660BBD024 I/O Module
Oferta

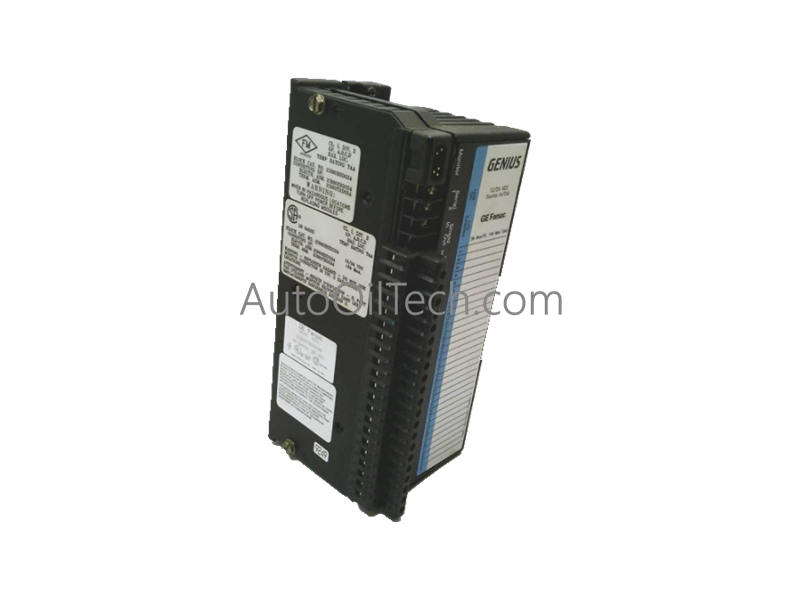

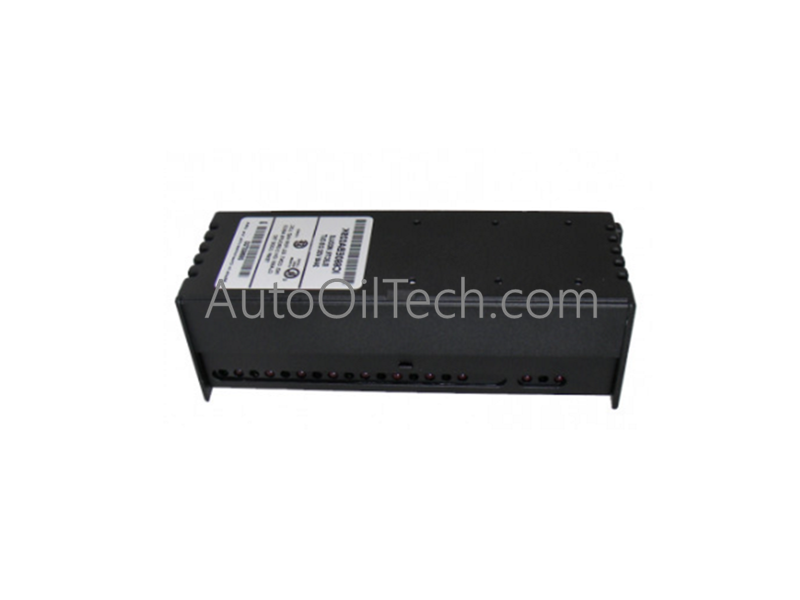

GE IC660BBD024 I/O Module
No reviews
In stock!
- Part Number: IC660BBD024
- Brand: GE Fanuc
- Type: Genius Block I/O Module
- Dimensions: 4x18.5x12.7cm
- Country of Origin: USA
- Barcode: 8537101190
Compartir
Additional Specifications
| Color / Pattern |
|
| Power Source |
|
| Communication Protocols |
|
| Controller Design |
|
Descripción del Producto
Configured for high-density discrete signal processing, electronic load modulation, and smart instrumentation tracking, the GE IC660BBD024 (IC660BBD024 Source I/O Block) provides direct physical/electrical execution. The distributed subsystem interfaces 2-wire and 3-wire DC sensors natively at the hardware tier to route binary channel data across localized token-passing serial fieldbus networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC660BBD024 |
| Brand | General Electric (GE) |
| Series | Genius I/O / Series 90-30 and 90-70 Subsystems |
| Origin | United States of America (USA) |
| Weight | 4 lbs (1.81 kg) |
| Dimensions | 22.44 cm x 9.05 cm x 11.23 cm |
| Nominal Operating Voltage | 12/24 VDC single-source line |
| Operating Voltage Range | 10 to 30 VDC continuous input envelope |
| Required Internal DC Power | 150 mA typical / 300 mA maximum continuous load |
| Power Supply Dropout Tolerance | 4 ms at 12 VDC / 20 ms at 24 VDC |
| Channel Density | 32 discrete points (individually configurable) |
| Circuit Configuration | Input, output, or output with feedback modes (Sourcing logic) |
| Steady-State Output Current | 0.5 A maximum per circuit |
| Maximum Output Inrush Current | 4 A up to 10 ms (maximum frequency once every 0.5 sec) |
| Aggregate Block Output Current | 16 A maximum simultaneous threshold |
| Input Impedance | 3.3 k Ohms typical |
| Input Processing Latency | 1.4 ms base plus programmable filter delay configuration |
| Selectable Input Filter Times | 1, 2, 3, 4, 5, 10, 20, 30, 40, 50, 60, 70, 80, 90, or 100 ms |
| Block-to-Block Isolation | 850 V galvanic isolation barrier |
| Operating Temperature Range | 0 to +60 deg C (+32 to +140 deg F) |
| Relative Humidity Limits | 5% to 95% RH, non-condensing |
| Product Type | Distributed I/O Modules |
Industrial Control & Drive Communications
- Backplane Bus Communication Velocity Licences and Network Routing The block embeds an autonomous network processor that executes token-passing serial transmissions at 153.6 kbaud directly over a shielded twisted-pair link. This architecture enables bit-level diagnostic word transfers and channel mapping registers to stream parallel to the host controller core, eliminating backplane bus bottlenecks during synchronous 32-point I/O state updates.
- Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling While operating on standard legacy Genius fieldbus layouts, the module scales discrete density by establishing 32 multi-mode channels within a single cast aluminum frame. Through the integration of standardized network gateways, these multi-mode registers route back to modern, deterministic Profinet or EtherNet/IP controllers via mapped data assembly fields.
Frequently Asked Questions
Q: What programmatic or electrical faults manifest if an output wiring error creates a shorted electrical load?
A: The module's internal self-protecting solid-state switches detect the overcurrent state and latch off the faulted channel driver instantly. The block concurrently sets a "Switch Fault" error flag, generates an explicit diagnostic data package across the fieldbus link, and turns off the corresponding individual logic-side LED.
Q: Can the internal electronics module assembly be replaced while the field wire terminations remain connected?
A: Yes, the mechanical footprint consists of a separate terminal base (IC660TBD024) and a plug-in electronics module (IC660EBD024). This structural split allows online extraction and insertion of the electronic component board without disturbing field terminations or requiring system re-parameterization.
