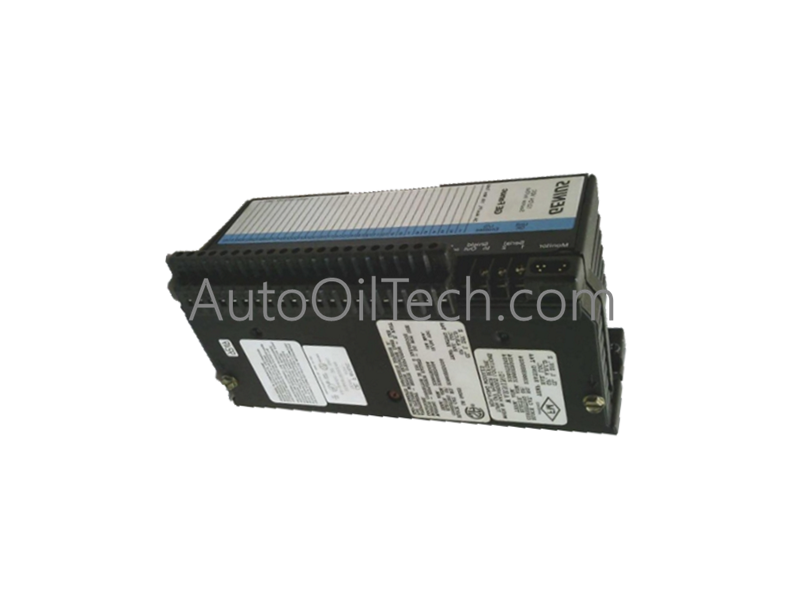

GE IC660BBD021 Sink I/O Block

The GE IC660BBD021, also cataloged as the IC660BBD021 Sink I/O Block, operates as a dedicated hardware component for discrete signal processing, electronic load switching, and multi-mode channel mapping within Mark I and II control system platforms. The self-powered terminal assembly routes sensor states and actuator power loops natively at the hardware tier to drive electromechanical and solid-state instrumentation interfaces without secondary external circuit power lines.

Hardware Specifications

Industrial Control & Drive Communications

• Backplane Bus Communication Velocity Licences and Timing Integration The discrete sink module maps its 16 configurable data channels straight to the host Series 90-30 backplane processing matrix. This hardware registry enables localized execution of input filter timing sequences and output pulse testing logic, completing instruction scans parallel to deterministic communication updates without adding runtime CPU latency penalties.
• I/O Density Scaling and Multi-Mode Circuit Configuration The hardware design provides programmatic density scaling by allowing each of the 16 circuits to independently execute input, output, or tristate open-wire monitoring roles. This flexible signal grouping matches different field layouts on a single terminal block, controlling concurrent 2 A output circuits while processing solid-state proximity sensor loops.

Frequently Asked Questions

Q: What programmatic or electrical faults manifest if an output line triggers an over-temperature state?

A: Reaching internal thermal thresholds activates the embedded electronic over-temperature safety circuit. The module immediately shuts down the affected output junction to protect internal traces, logs an overload fault code in the PLC diagnostic registers, and illuminates the corresponding individual load-side indicator.

Q: How does the IC660BBD021 maintain safe logic states during a total power supply dropout exceeding 10 ms?

A: When power line disruption breaks the 10 ms hardware dropout barrier, the internal supervisor circuit triggers a complete module reset. The physical discrete channels drop out of active state and instantly execute pre-configured safety defaults, either holding their last valid runtime state or forcing all 16 circuits to zero.
