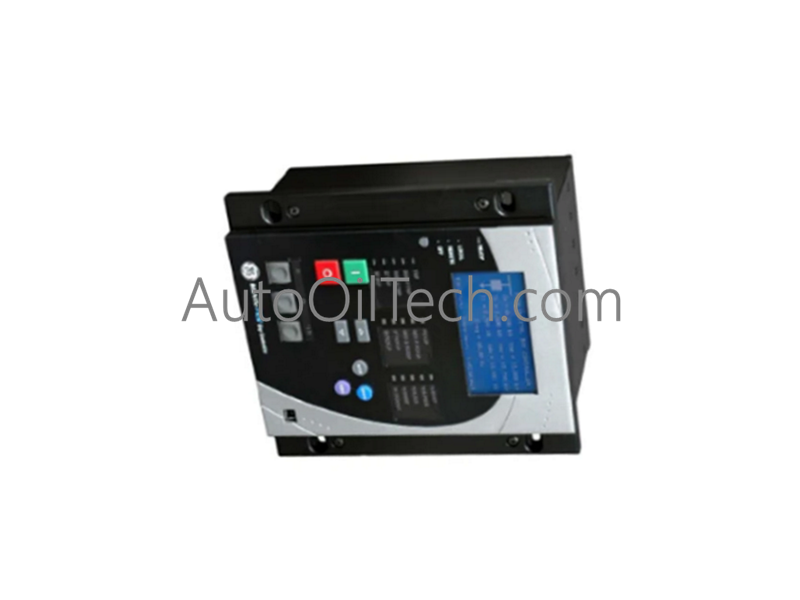

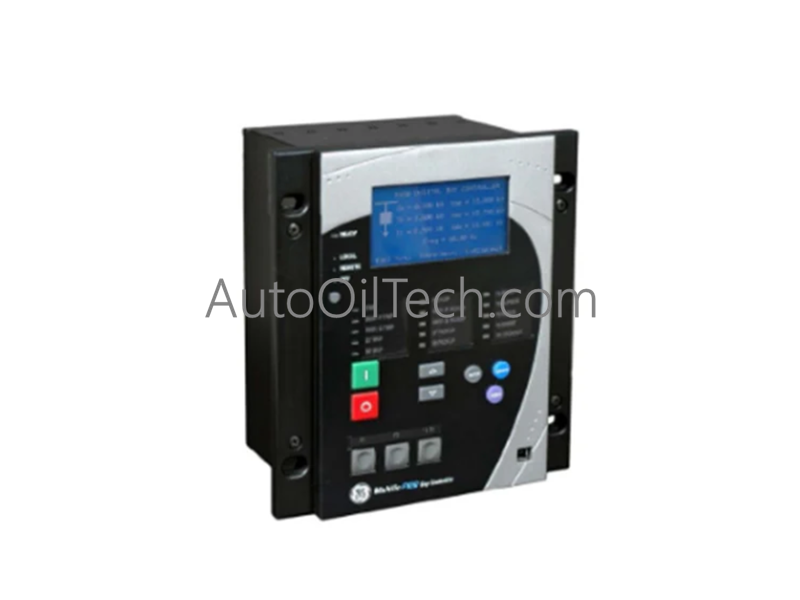

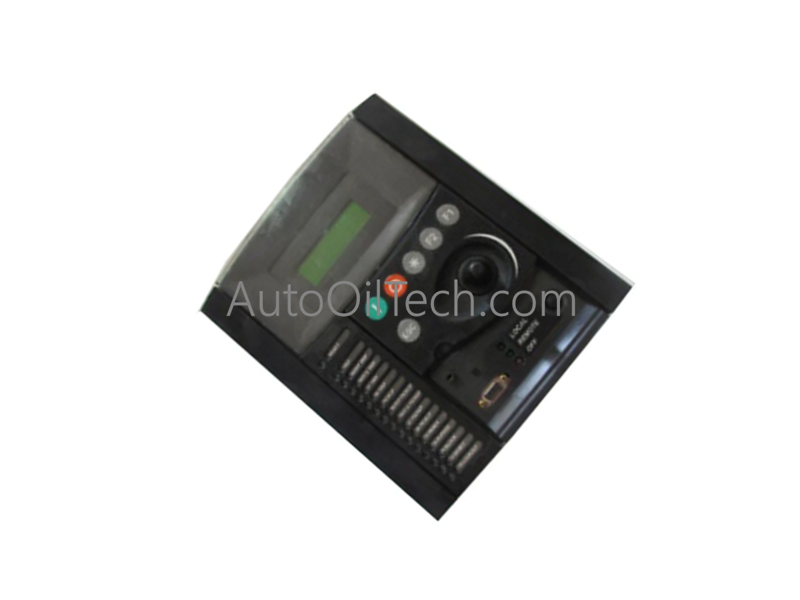

GE F650BFEF2G0HIC Bay Controller Module

The GE F650BFEF2G0HIC serves as the primary F650 Bay Controller utilized to execute high-speed feeder protection, localized breaker management, and automated control logic across electrical substation architectures. The hardware runs high-resolution analog-to-digital sampling grids to execute deterministic trip routing and protective relaying under fault conditions without processing lag.

Hardware Specifications

Power System Protection & Substation Network Routing

• Substation Communication Architecture and Protocol Execution The controller handles multi-protocol data delivery across automated electrical networks. It maps real-time instantaneous protection variables—such as Sensitive Ground Overcurrent (50SG) and Isolated Ground Overcurrent (50IG)—directly into standard data tables. The internal processing engine executes directional protection algorithms (67P/67N/67G) within < 30 ms, allowing instantaneous fault variables to update cleanly across upstream SCADA nodes.
• Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling The processing engine coordinates the high-density internal I/O sampling grid alongside deterministic network traffic. The localized logic engine tracks quadrature voltage polarizing sequences (ABC/ACB) and negative-sequence parameters, updating internal trip registers and transmitting binary state packets over standard industrial networks to isolate directional grounding path anomalies without dropping packets.

Protection Element Specifications

• Sensitive Ground Instantaneous Overcurrent (50SG): Tracks fundamental phasor or RMS current values with a pickup level of 0.005 to 16.0 A (steps of 0.001 A). Features a reset dropout level of 97% to 98% and a timing accuracy of 50 ms or $\pm3\%$ of the operate time under non-zero intentional delay.
• Phase Directional Units (67P): Selectable forward and reverse configurations utilizing quadrature voltage polarizing. Provides a polarizing voltage threshold of 0 to 300 Vac and a current sensitivity threshold of 50 mA across a characteristic angle of -90 to +90 deg.
• Thermal Model (49): Operates on fundamental phasor data without harmonics, accommodating 1 A or 5 A CT connections. Supports a pickup level from 0.05 to 160.00 A with a baseline tracking accuracy of $\pm0.5\%$ of the reading from 0.05 to 10 A.
