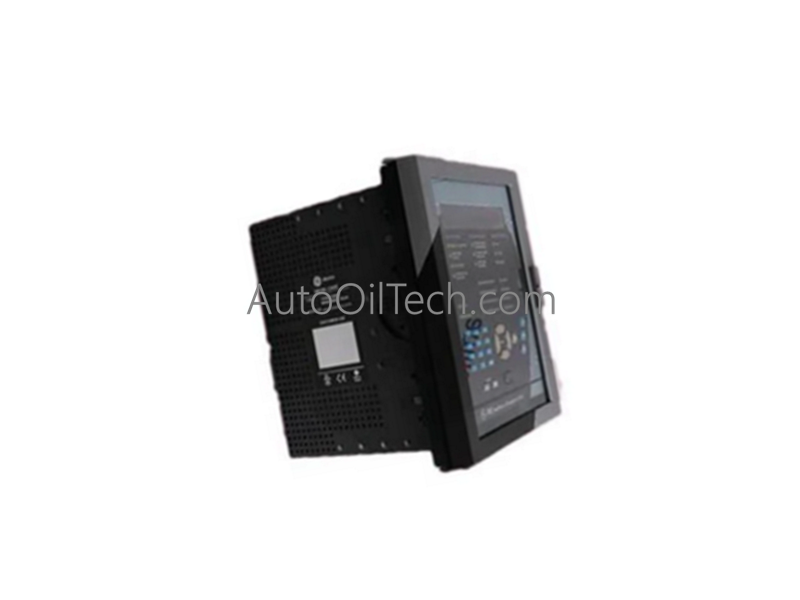

GE F650BABF1G0HIC Controller

The GE F650BABF1G0HIC serves as the primary F650 Bay Controller utilized to execute high-speed feeder protection, localized breaker management, and automated control logic across electrical substation architectures. The hardware conditions complex analog voltage and current wave inputs to execute deterministic trip routing and breaker control without processing latency.

Hardware Specifications

Power System Protection & Substation Network Routing

• Substation Communication Architecture and Protocol Execution The controller handles multi-protocol data delivery across automated electrical networks. It runs parallel hardware processing stacks for IEC 61850 Edition 2, IEC 60870-5-103/104, and network redundancy protocols like PRP/HSR and RSTP. Internal routing logic prioritizes high-speed GOOSE messaging layers directly onto the network bus to enable rapid breaker interlocking and load shedding commands without propagation delays.
• Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling The processing engine coordinates the high-density internal I/O sampling grid alongside deterministic network traffic. The localized logic engine cross-references automated interlocking equations with real-time analog values, updating internal trip registers and transmitting binary state packets over zero-recovery PRP/HSR network topologies to ensure complete data path availability during sudden physical link failures.

Frequently Asked Questions

Q: How does the controller execute load shedding and anti-islanding schemes for distributed generation interconnects?

A: The onboard processor continuously tracks frequency rate-of-change ($df/dt$), absolute voltage variables, and phase synchronization metrics. If network parameters drift beyond pre-configured thresholds, the protection logic shifts between 6 selectable setting groups to trigger instantaneous load shedding or isolate local generation sources via passive anti-islanding control loops.

Q: What are the backplane firmware flash compatibility constraints during live system maintenance?

A: Firmware flash updates require the controller to be placed into a dedicated configuration mode, which suspends active protection and control functions. For safety purposes, online hot-swapping or background flash updates are blocked on active processing tracks; firmware modifications must be verified through a secondary isolated serial or Ethernet connection before deploying the logic engine.
