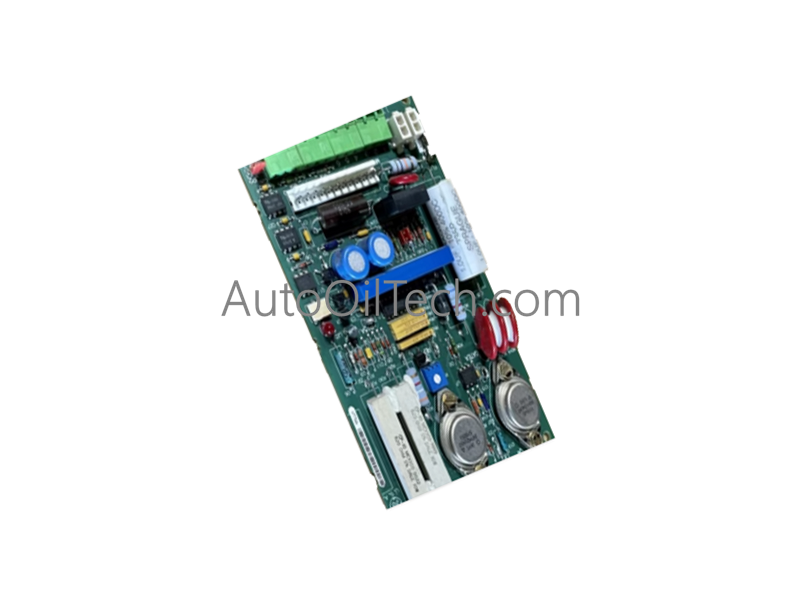

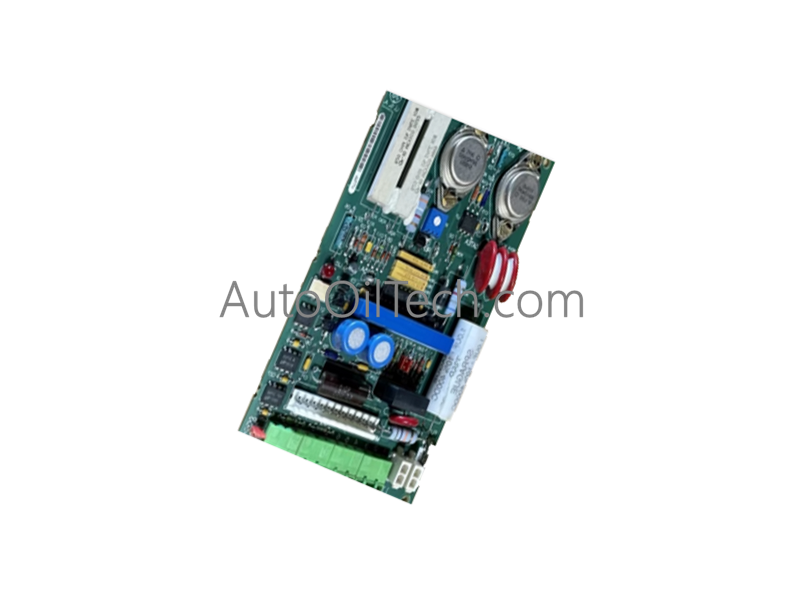

GE DS200SDCIG1AFB DC Power Supply and Instrumentation Board

The General Electric DS200SDCIG1AFB, also cataloged as the DS200SDCI DC Power Supply and Instrumentation Board, operates as a dedicated hardware component for power regulation, motor field control, and drive signal instrumentation within Mark V Speedtronic turbine control and DC2000 drive architectures.

Suffix Breakdown & Model Matrix

Hardware Specifications

Industrial Control System Characteristics

• Backplane bus communication velocity: The board manages armature SCR gating drivers and motor field power circuits. This is mandatory for the deterministic timing required in high-speed DC motor control loops.
• Profinet / EtherNet/IP deterministic networks: The module integrates into the Mark V backplane to facilitate synchronized signal reporting and command execution for the drive systems.
• I/O density scaling: The PCB encompasses integrated circuitry for AC/DC line motor signal instrumentation, providing the necessary signal conditioning for diverse field feedback loops.
• Firmware flash compatibility: The module requires specific hardware configuration via jumpers (JP1, JP2) and switch (SW1) to align with drive output requirements. Verification of these settings against the GEI-100173 documentation is mandatory for correct drive operation.

Frequently Asked Questions

Q: What are the primary fuse protection requirements for the DS200SDCIG1AFB?

A: The board utilizes multiple onboard fuses: FU1/FU2/FU3 for power and signal-level supply protection, and FU5/FU6 for internal NRX/MOV assembly protection. Replacement must utilize identical ratings to ensure circuit protection.

Q: Is the onboard switch (SW1) field-adjustable?

A: Yes. SW1 is used to select AC line CT burdens relative to the nominal DC output current. Adjustment must be performed based on the specific DC2000 drive application parameters to ensure accurate signal instrumentation.

Field Installation Guidelines

• Mounting: Seat the PCB securely within the Mark V control rack or drive cabinet. Ensure all edge connectors are properly aligned with the backplane; loose connections may lead to failure in SCR gating signals, potentially causing drive instability.
• Grounding: The board must be bonded to the cabinet’s instrument earth bus. Robust grounding is mandatory to suppress electrical noise from the SCR switching circuits, which can otherwise corrupt sensitive signal-level instrumentation.
• Wiring: Connect motor field and line signal wires to the designated terminal points. Ensure cabling is shielded and segregated from high-power AC lines by a minimum of 150 mm to prevent inductive coupling and signal-level interference.
