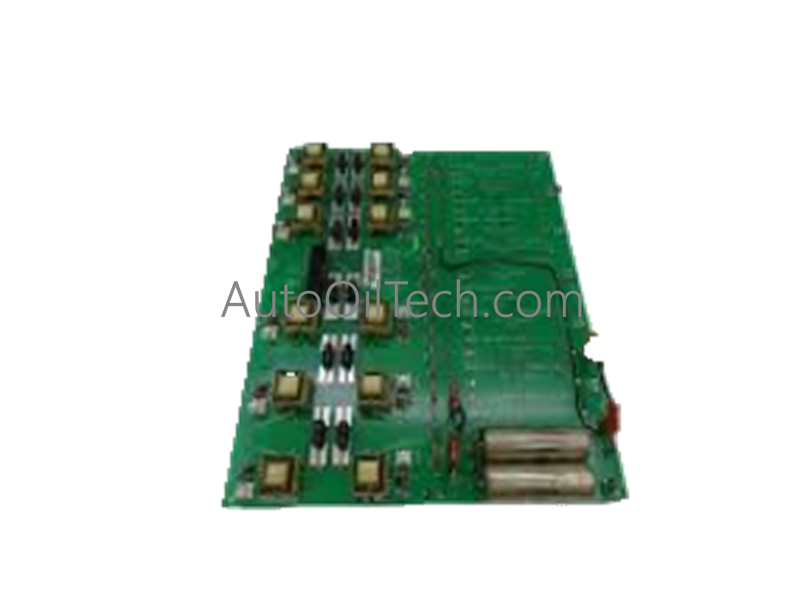

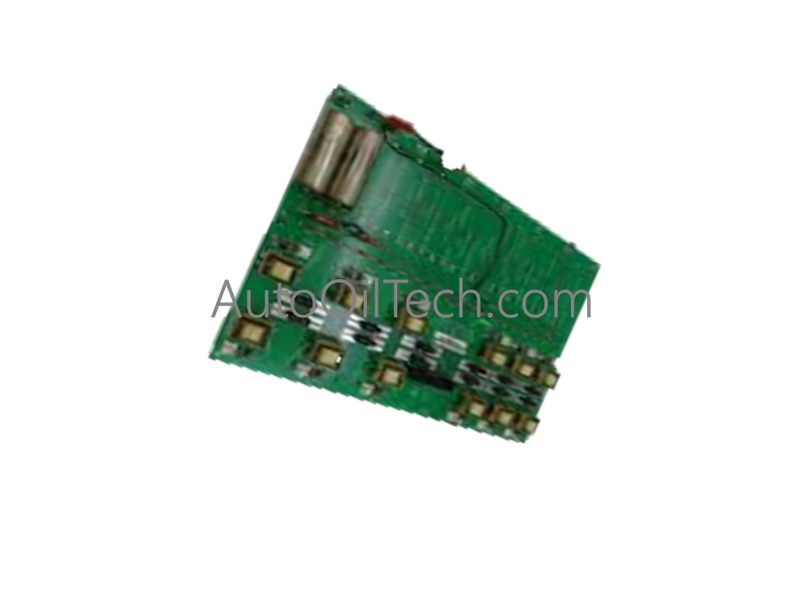

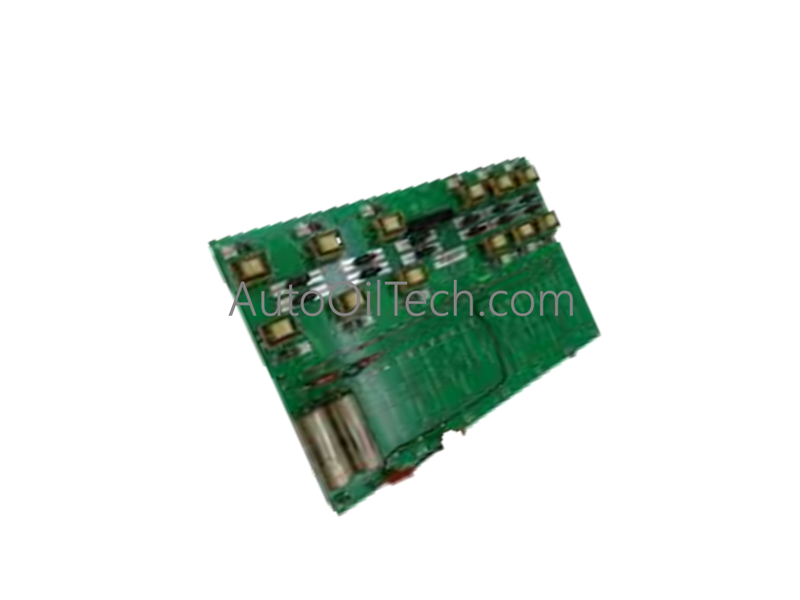

GE DS200PCTMG1AAA Power Connect Terminal Board

The GE DS200PCTMG1AAA, also cataloged as the DS200PCTMG1AAA Power Connect Terminal Board, operates as a dedicated hardware component for power distribution and signal interfacing within GE Mark V turbine control architectures. Configured for high-density interconnectivity, the GE DS200PCTMG1AAA (DS200PCTMG1AAA Power Connect Terminal Board) provides direct physical execution of signal path routing and power supply management for turbine I/O modules.

Hardware Specifications

Industrial Control and TSI Metrics

• Channel-to-Channel Isolation: The board is engineered with physical isolation barriers between signal paths. This design prevents electrical crosstalk and common-mode noise propagation, ensuring that high-voltage power distribution does not interfere with low-level analog feedback signals from turbine sensors.
• Signal Integrity and Routing: The layout utilizes a structured terminal organization to minimize wiring loops. By maintaining clear separation between power delivery and signal conditioning traces, the board reduces inductive coupling and maintains the high signal-to-noise ratio required for Mark V turbine speed and temperature monitoring loops.
• Environmental Hardening: The assembly is treated with a robust conformal coating. This protective layer mitigates the effects of high-humidity, airborne particulate matter, and acidic vapors prevalent in steam turbine generator rooms, ensuring consistent electrical contact resistance over the service life of the board.

Frequently Asked Questions

Q: Is the DS200PCTMG1AAA compatible with both gas and steam turbine configurations in the Mark V series?

A: Yes. The board is designed for universal application within standard Mark V turbine control racks, serving as the interface node regardless of the specific turbine media, provided the cabinet infrastructure adheres to standard Mark V specifications.

Q: Can this terminal board be used to bridge power between different I/O racks?

A: No. The board is intended for localized power and signal distribution within its designated rack location. Attempting to bridge power between geographically separate racks can induce voltage drops and grounding inconsistencies that may trigger system-level protection faults.

Field Installation Guidelines

• Mechanical Seating: Ensure the terminal board is secured in the rack using all designated mounting points to prevent mechanical vibration, which can lead to loosening of the screw terminals over time.
• Wiring Practice: Use ferrules on all stranded wire terminations at the screw terminals to prevent strand splaying and ensure a high-integrity electrical contact. Torque all connections according to the specified industrial standards for the Mark V cabinet environment.
• Shielding and Grounding: Terminate all signal cable shields to the cabinet ground bus provided on the terminal assembly. Do not rely on the PCB mounting hardware for the primary ground path, as a low-impedance connection to the chassis earth is required to effectively shunt high-frequency electromagnetic interference.
