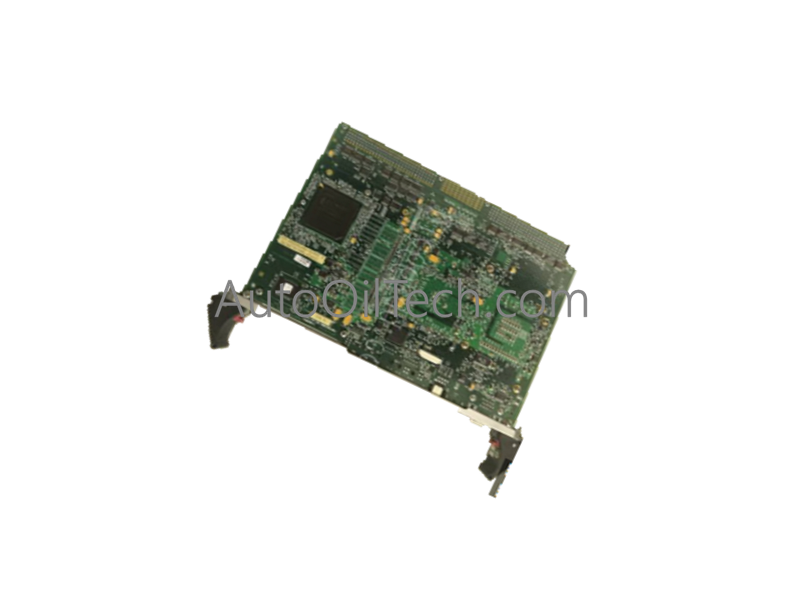

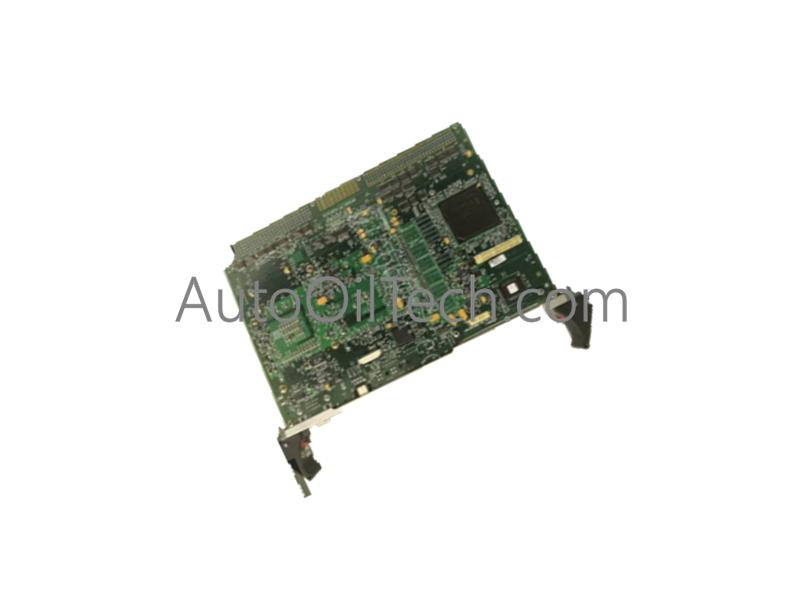

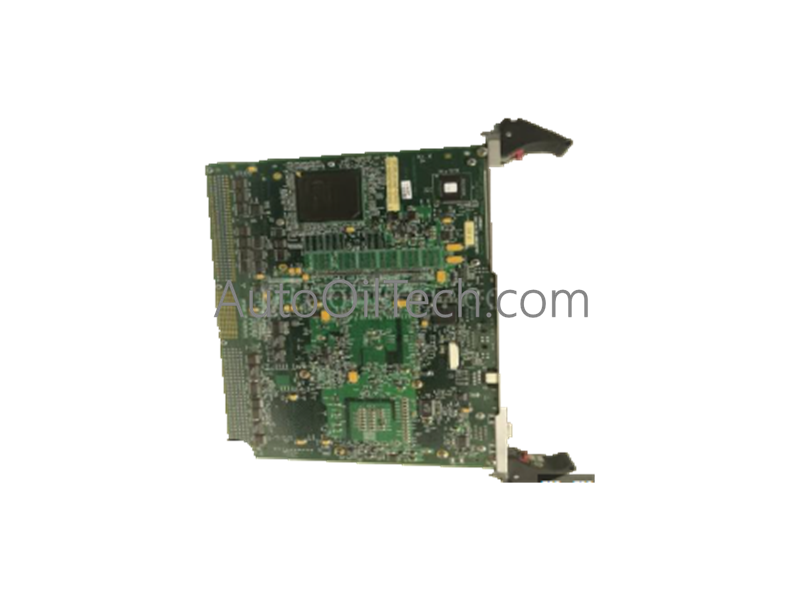

GE DS200LDCCH1AFA Drive Control LAN Communications Board

The GE DS200LDCCH1AFA, also cataloged as the DS200LDCCH1AFA Drive Control/LAN Communications Board, operates as a dedicated hardware component for high-speed bus integration within GE Mark V Speedtronic turbine management platforms. Configured for multi-processor control in drive and exciter assemblies, the GE DS200LDCCH1AFA (DS200LDCCH1AFA Drive Control/LAN Communications Board) provides direct physical execution of I/O, device, and motor control logic.

Hardware Specifications

Industrial Control and Network Characteristics

• Backplane Bus Communication Velocity: The board features a sophisticated multi-processor architecture including a Drive Control Processor (DCP) for I/O conversion, a LAN Control Processor (LCP) for bus management, a Motor Control Processor (MCP), and a Co-Motor Processor (CMP) for complex arithmetic. This hardware matrix ensures deterministic processing speeds required for high-performance drive control.
• Profinet / EtherNet/IP Deterministic Networks: The DS200LDCCH1AFA serves as the gateway for up to five distinct bus protocols, including DLAN+, DLAN, Genius bus, CPL serial links, and C-bus. It coordinates these interfaces to maintain real-time data exchange between the turbine controller, DIRECTO-MATIC 2000 exciters, and peripheral I/O modules.
• I/O Density Scaling: The board utilizes flash PROM modules for configuration data and an EEPROM for field-adjustable parameters, allowing the device to scale its control functions based on the specific motor or drive assembly requirements. The onboard programmer keyboard enables direct local access to diagnostics and error status without external controller intervention.

Frequently Asked Questions

Q: Is the DS200LDCCH1AFA compatible with all Mark V turbine applications?

A: The board is designed for the Mark V Speedtronic series and interfaces with gas, steam, and wind turbine drive assemblies. Ensure that the system firmware is compatible with the revision A-F-A status, as this module succeeds the original DS200LDCCH1 parent board.

Q: Does the board support hot-swapping while the turbine drive is active?

A: No. The DS200LDCCH1AFA is not designed for hot-swapping. The drive cabinet must be powered down and the backplane bus quiesced before installation or removal to prevent electrical damage to the communication headers or the loss of volatile configuration data stored in the PROM/EEPROM modules.

Field Installation Guidelines

• ESD Protection: The board is sensitive to electrostatic discharge. Ensure that it is handled only when utilizing proper grounding wrist straps and that the anti-static cling packaging is maintained until the moment of installation.
• Bus Termination: When interfacing with C-bus or DLAN architectures, ensure that the communication lines are correctly terminated according to the specifications in manual GEI-100216. Improper termination will cause signal reflections and lead to intermittent LAN communication errors.
• Configuration Verification: Upon installation, verify the firmware version and ensure that the EEPROM parameters are aligned with the site-specific motor control requirements. Use the integrated programmer keyboard to perform a baseline diagnostic check to confirm that all four processors (DCP, LCP, MCP, CMP) have successfully initialized.
