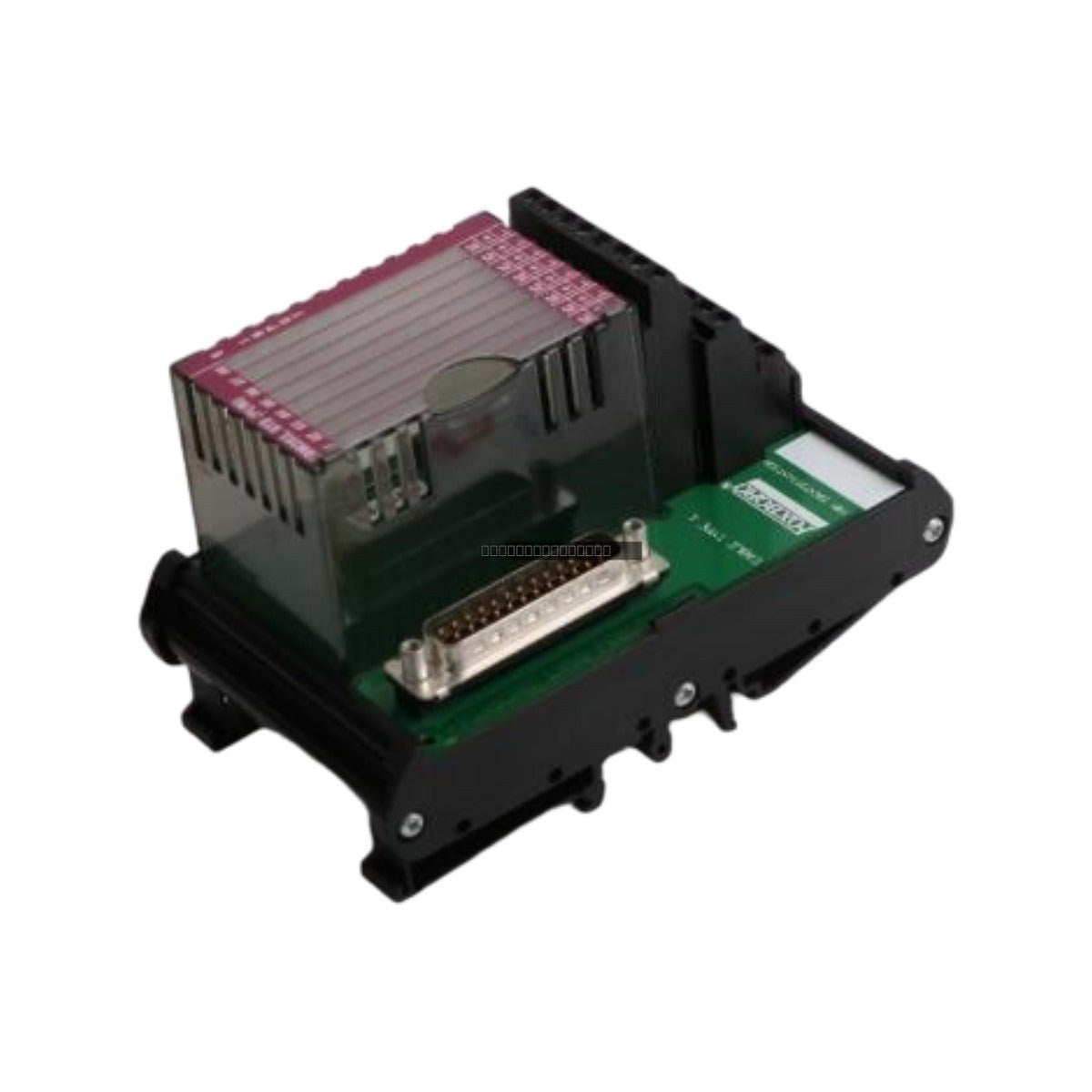

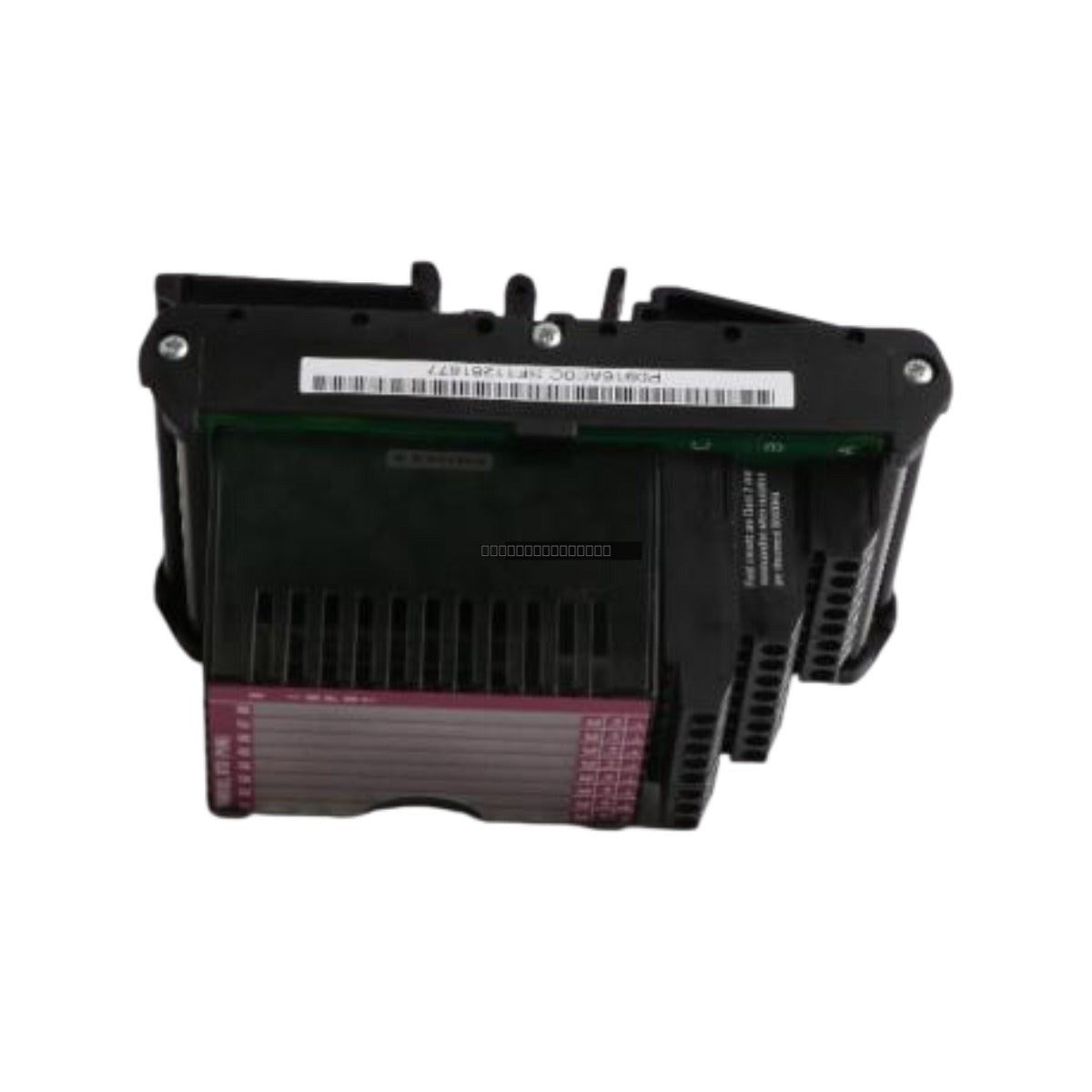

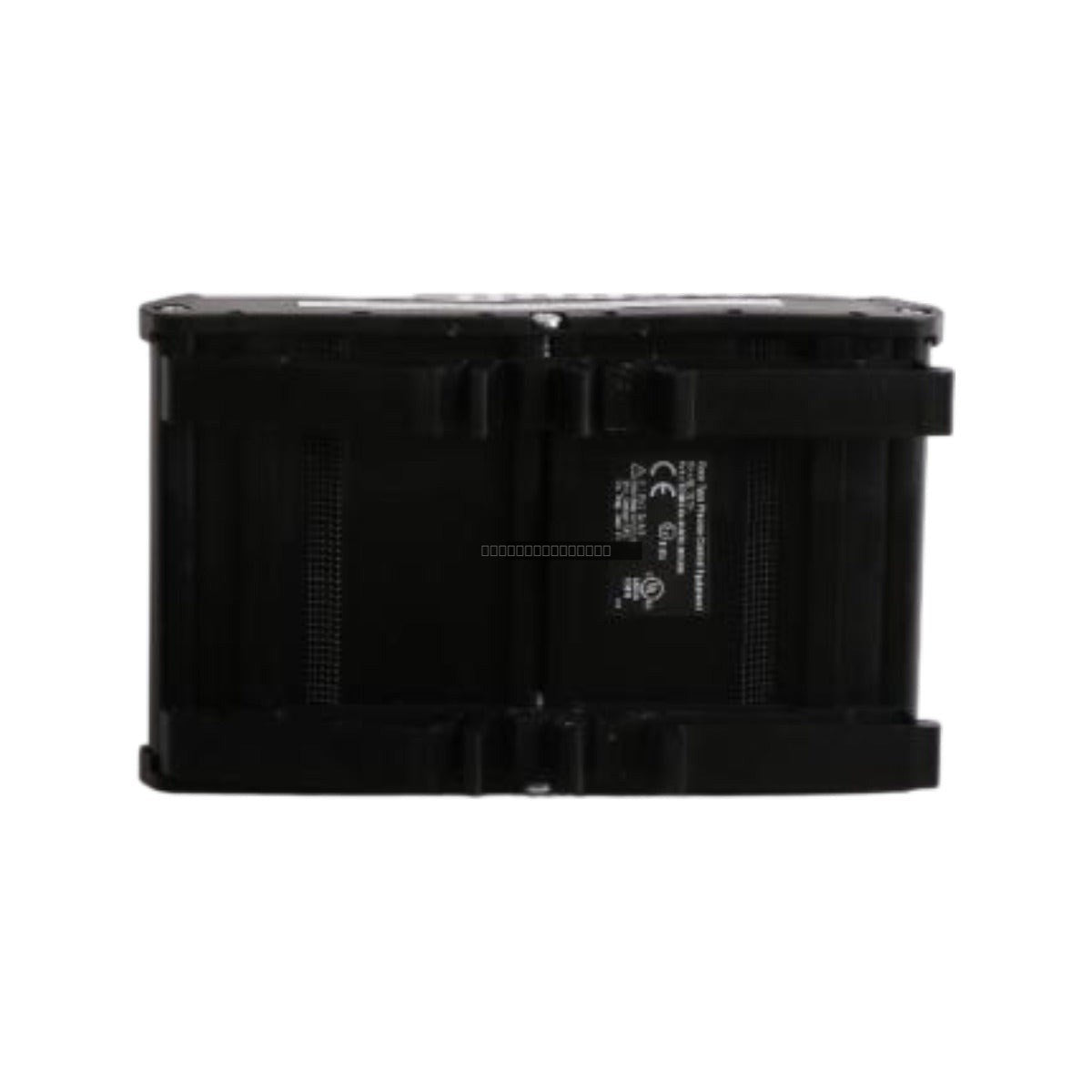

Foxboro P0916AE I/A Series Termination Assembly Module

Product Overview

The Foxboro P0916AE is a robust Terminal Assembly (TA) engineered for the I/A Series 200 hardware platform. This module acts as the essential physical bridge between field-level instrumentation wiring and the Fieldbus Modules (FBMs). By consolidating signal routing, the P0916AE ensures organized connectivity in demanding industrial environments, including oil and gas processing, power generation, and large-scale manufacturing facilities. Its design incorporates protective features that isolate sensitive control electronics from field-side electrical faults, significantly reducing the risk of downtime and simplifying routine maintenance tasks.

Features

• Designed for seamless integration within the Foxboro I/A Series 200 ecosystem.
• Provides secure, high-density signal distribution for discrete or analog I/O loops.
• Features integrated test points for efficient, non-intrusive troubleshooting of field circuits.
• Supports redundant cabling configurations to maintain signal integrity in mission-critical applications.
• Rugged mechanical construction capable of withstanding industrial vibration and environmental stress.
• Facilitates effective system grounding to mitigate the impact of EMI and RFI.

Applications

This termination card is widely utilized in distributed control system (DCS) architectures where high reliability and signal accuracy are required. It is frequently deployed in petrochemical refineries, water treatment plants, and heavy processing industries to manage complex I/O signal arrays while maintaining a clean, manageable cabinet layout.

Technical Specifications

Installation Guidelines

• Ensure power is isolated from the cabinet before attempting to install or remove the module.
• Verify that the module is correctly seated on the baseplate to ensure reliable contact with the FBM.
• Use shielded cabling for all field signal runs to minimize electromagnetic interference.
• Maintain proper torque on screw terminals to prevent loose connections caused by vibration.
• Ensure the installation environment remains within the specified temperature and humidity ranges to prevent component degradation.
• Handle with standard ESD precautions to protect internal circuitry during maintenance.

FAQ

Is the P0916AE compatible with all I/A Series 200 FBMs?
The P0916AE is designed for specific I/A Series 200 configurations. Please verify your system's documentation or the FBM datasheet to confirm compatibility with your specific signal type.

Can I test signals without disconnecting wires?
Yes, the module is equipped with integrated test points that allow for real-time monitoring and troubleshooting of loops without disrupting field wiring connections.
