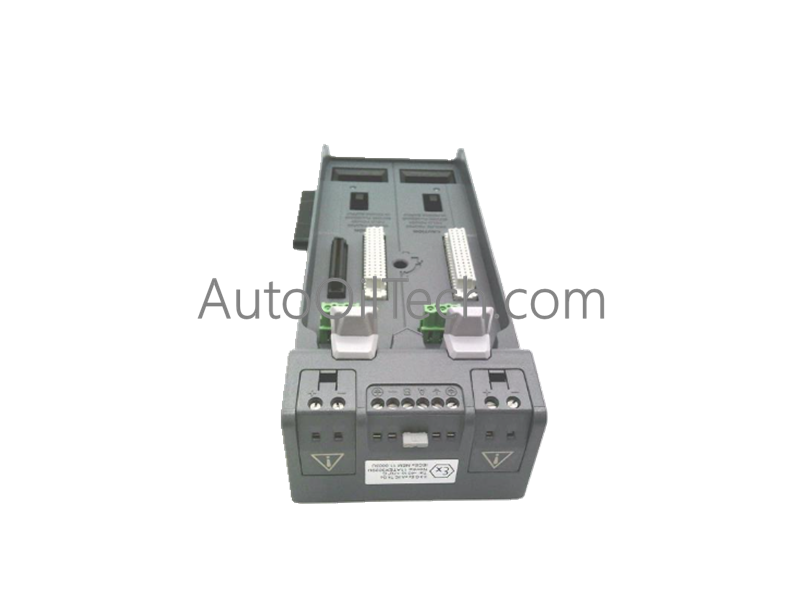

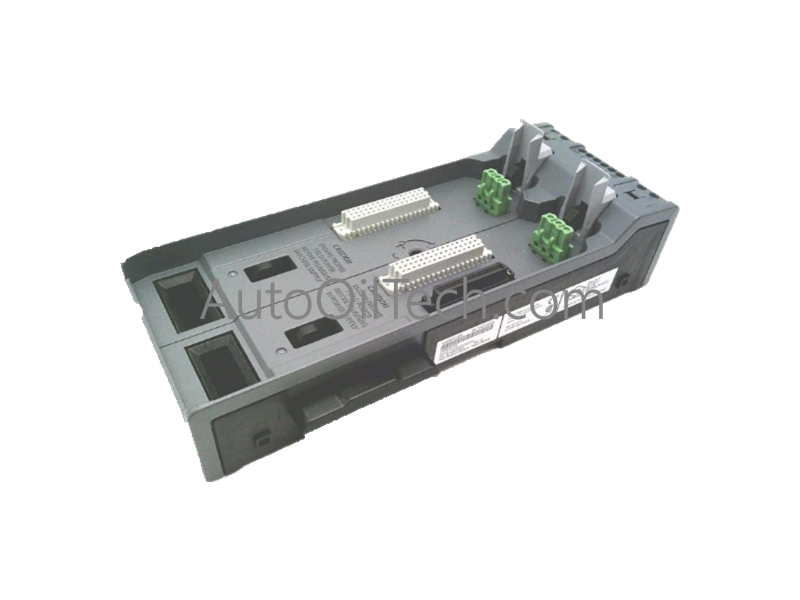

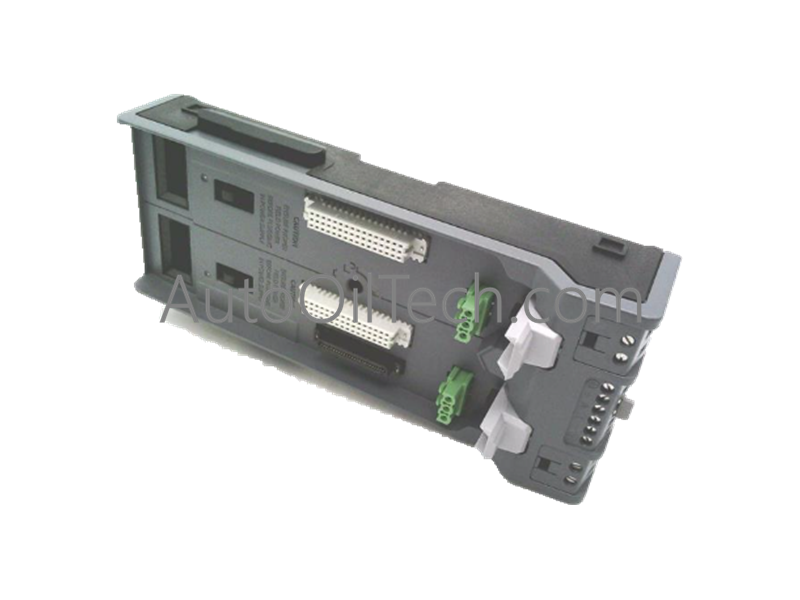

Emerson SE3051C0 Controller Carrier

The Emerson DeltaV SE3051C0, also cataloged as the SE3051C0 (or KJ4005X1-BA1) Controller Carrier, operates as a dedicated hardware component for power distribution, backplane communication, and mechanical support of S-Series controllers within DeltaV distributed control architectures.

Hardware Specifications

Industrial Control System Characteristics

• Profinet / EtherNet/IP deterministic networks: The carrier backplane facilitates high-speed, deterministic data exchange between mounted controllers and I/O subsystems, ensuring consistent scan cycles for critical process loops.
• Backplane bus communication velocity: The internal bus architecture is optimized for low-latency signal propagation, supporting the high-speed processing requirements of S-Series control hardware.
• I/O density scaling: The 2-wide design supports flexible system configurations, allowing for redundant controller setups or auxiliary module mounting within a modular, scalable I/O environment.
• Firmware flash compatibility: While a passive carrier, the backplane is engineered for full compatibility with field-upgradable controller firmware, ensuring that future control enhancements do not require physical hardware replacement.

Frequently Asked Questions

Q: Does the SE3051C0 support hot-swapping of controllers?

A: Yes. The carrier backplane is designed to facilitate the hot-swapping of controllers and power modules without requiring a total system shutdown, provided the controller's internal logic is configured for redundant or warm-standby operation.

Q: What is the maximum current capacity supported by the carrier?

A: The carrier is rated for a continuous current capacity of 8 A at 24 V DC. Ensure that the combined load of the mounted controller and any ancillary I/O modules does not exceed this rating to prevent thermal degradation of the power traces.

Field Installation Guidelines

• Mounting: Secure the carrier to the cabinet backplate using standard mounting hardware. Ensure the carrier is oriented vertically to maximize passive convection cooling, critical for operating within the -40 deg C to 70 deg C range.
• Grounding: Bond the carrier’s integrated earth terminal to the cabinet’s instrument earth bus. Robust, low-impedance grounding is mandatory to maintain stable reference potentials and to protect internal backplane circuits from ESD and electromagnetic interference.
• Wiring: Terminate the 24 V DC power supply leads to the carrier's power input blocks. Maintain a minimum separation of 150 mm between power distribution wiring and signal-sensitive I/O cabling to mitigate the risk of inductive noise injection.
