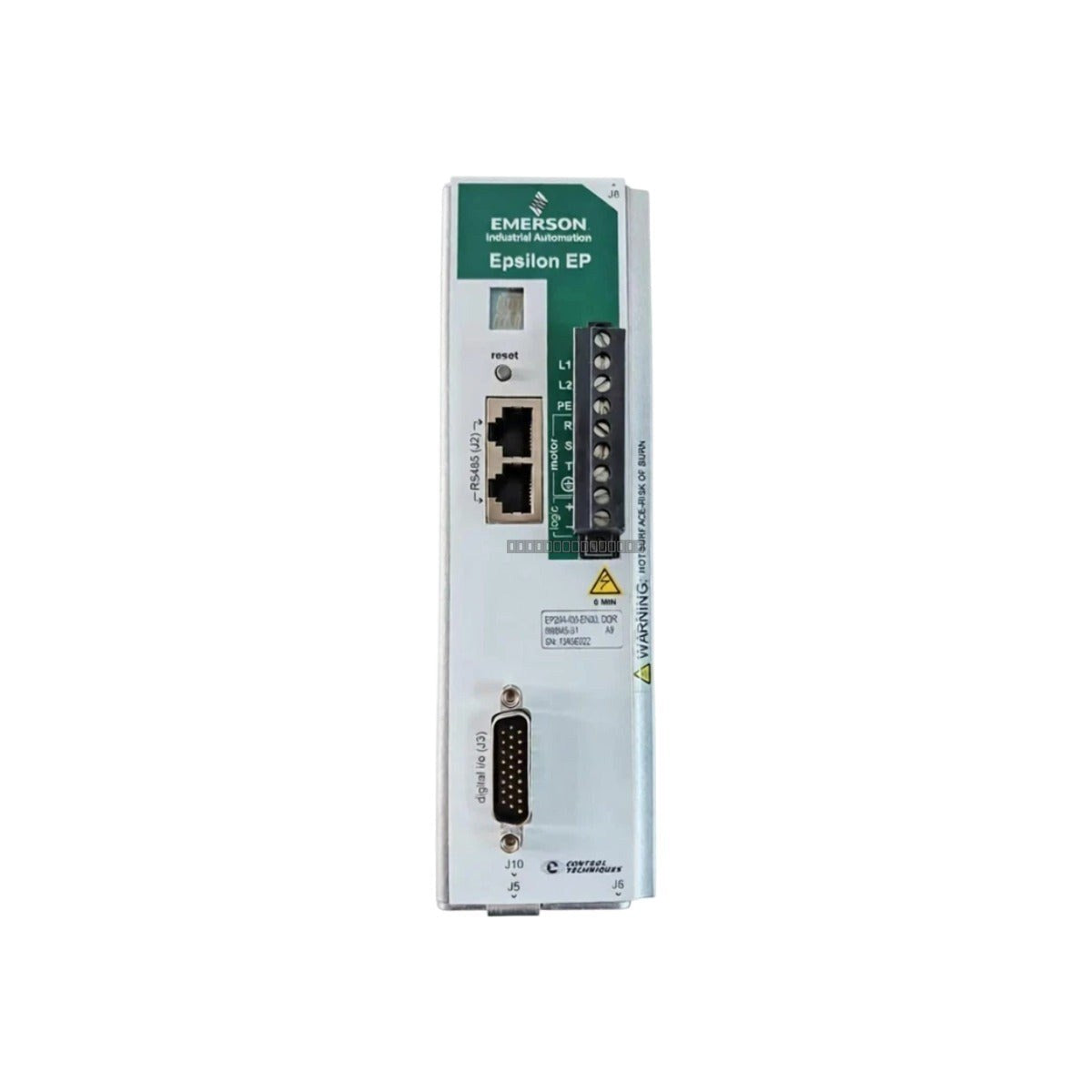

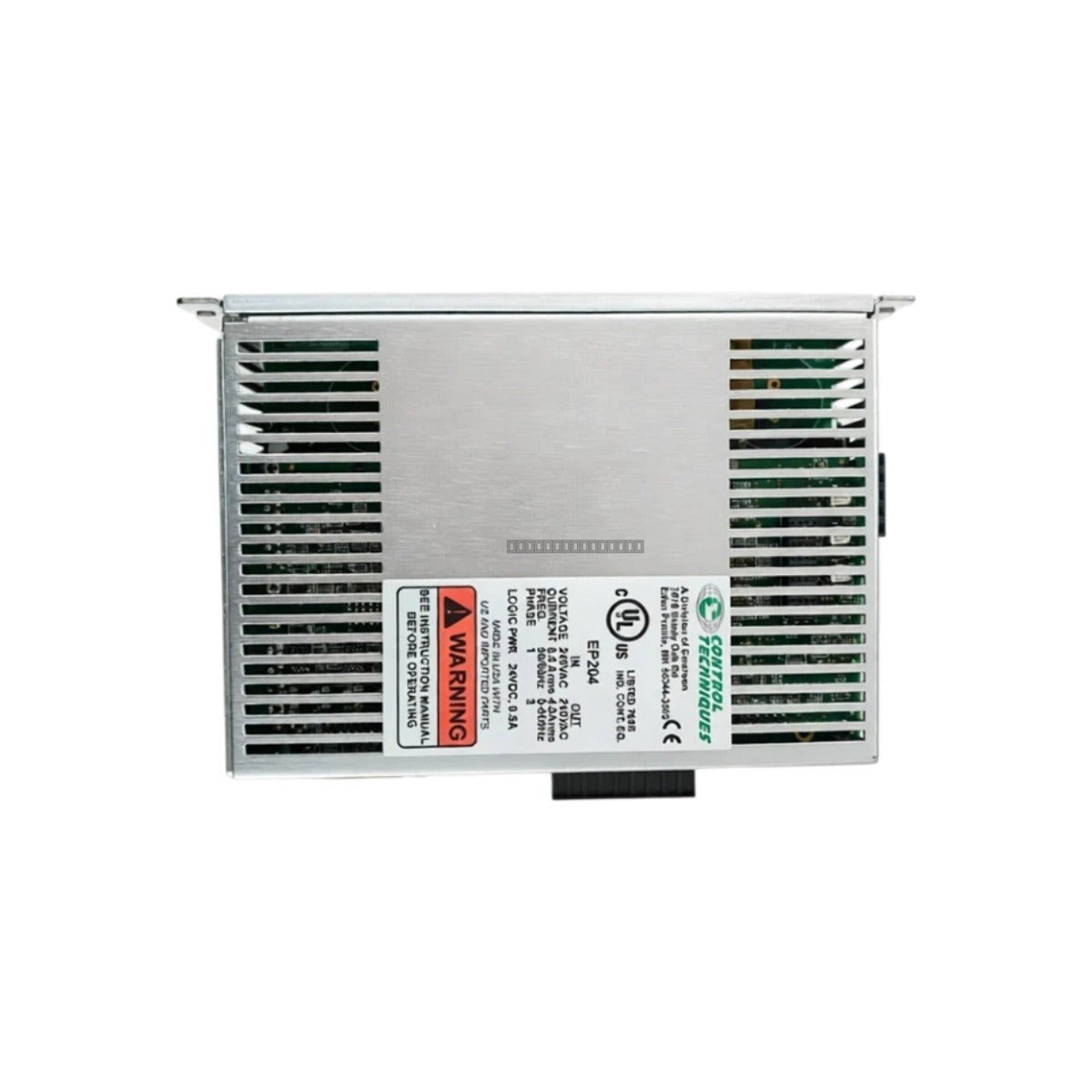

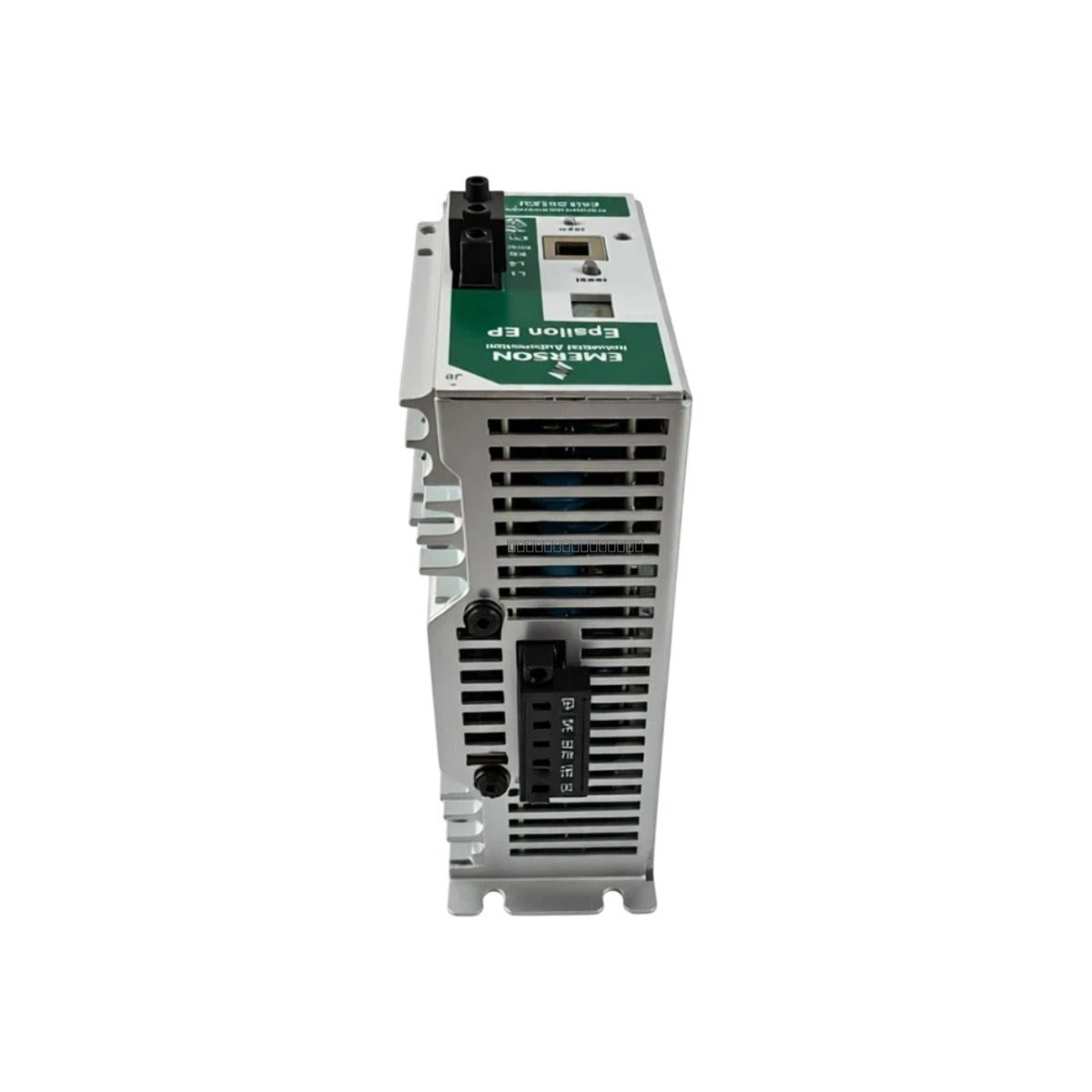

The EP204-I00-EN00 is a compact and versatile digital servo drive belonging to the Emerson Epsilon EP series. This drive provides high-performance motion control for a wide range of industrial automation applications, including precision packaging, textile manufacturing, and material handling systems. By integrating advanced power electronics with a robust control interface, the EP204-I00-EN00 delivers smooth torque delivery and accurate positioning. Its design emphasizes reliability in heavy-duty cycles, significantly reducing mechanical stress and system downtime. The "I00" designation indicates a base indexing model that supports standard motion profiles and digital I/O synchronization, making it a critical component for distributed motion architectures where localized intelligence and rapid response times are required.
Features
Indexing capability for programmable motion steps and homing sequences.
Compact frame size optimized for medium-inertia motor applications.
Integrated RS485 communication interface for commissioning and basic control.
Supports standard motion profiles and digital I/O synchronization.
Designed for high-reliability operation in demanding industrial environments.
Applications
The Epsilon EP series is widely utilized in applications requiring precise motion control, including:
Automated packaging machinery
Textile manufacturing equipment
Material handling and conveyor systems
Rotary indexing tables
General-purpose factory automation
Technical Specifications
Model
EP204-I00-EN00
Brand
Emerson / Control Techniques
Output Current (Continuous)
4.0 Amps
Output Current (Peak)
8.0 Amps
Input Voltage
115 / 230 VAC (Single Phase)
Input Frequency
45 to 65 Hz
Communication
RS485
Operating Temperature
0 to 50 deg C
Storage Temperature
-25 to 70 deg C
Humidity
5 to 95 percent (Non-condensing)
Protection Rating
IP 20
Installation Guidelines
Ensure the drive is mounted vertically in a clean, dry environment to allow for proper airflow and cooling.
Maintain adequate clearance around the unit to prevent overheating.
Always disconnect power before installing, removing, or wiring the drive.
Use shielded cables for motor and feedback connections to minimize electromagnetic interference (EMI).
Ensure a solid earth ground connection to the drive chassis to comply with safety and noise immunity standards.
Verify that the input voltage matches the drive specifications before applying power.
FAQ
What does the I00 suffix indicate?
The I00 suffix identifies the base indexing model, which allows for the programming of multiple motion steps and home sequences directly within the drive without requiring complex external PLC logic for every move.
Is this drive compatible with standard Emerson software?
Yes, the EN suffix indicates English language documentation and firmware standards, ensuring full compatibility with standard Emerson/Control Techniques motion configuration software tools.
