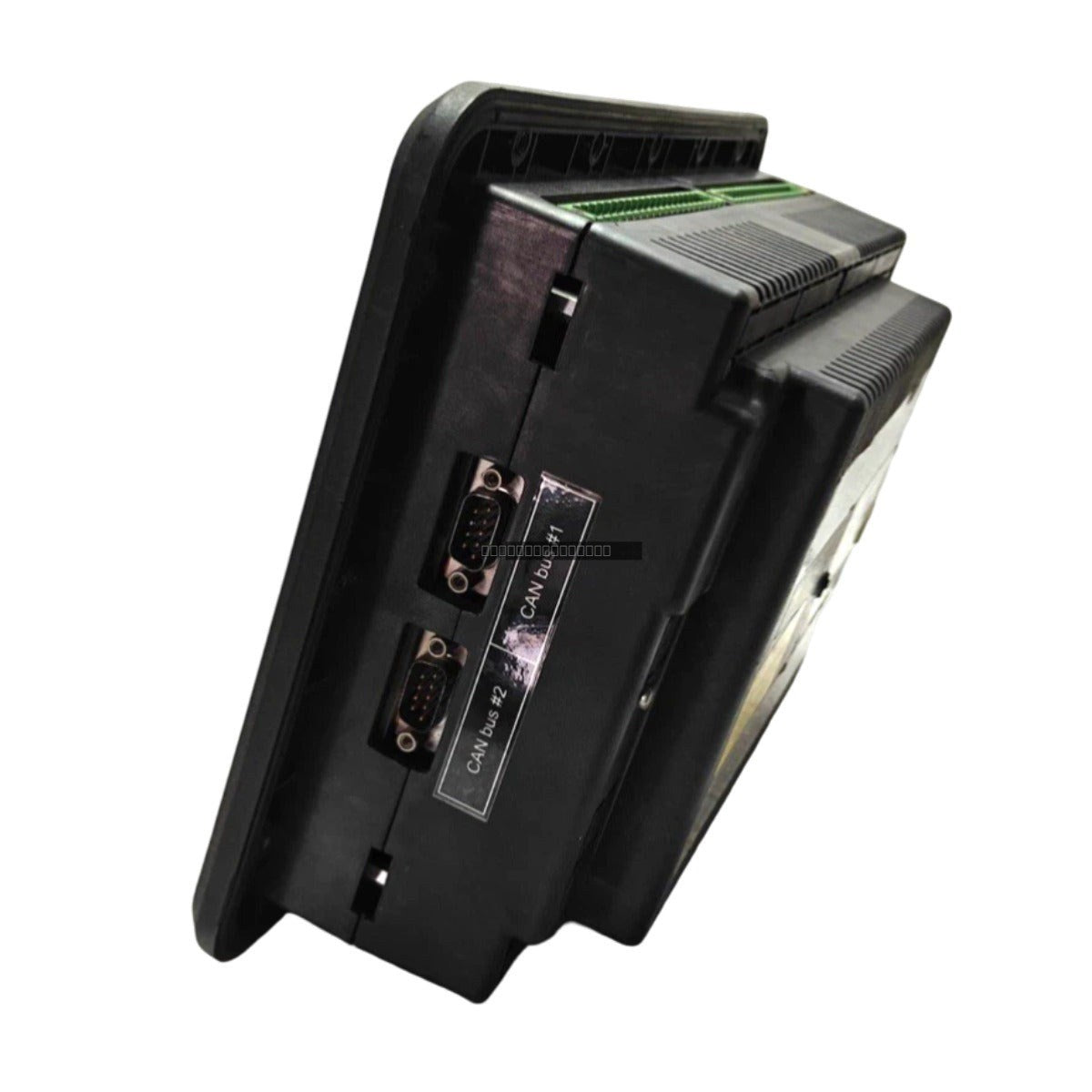

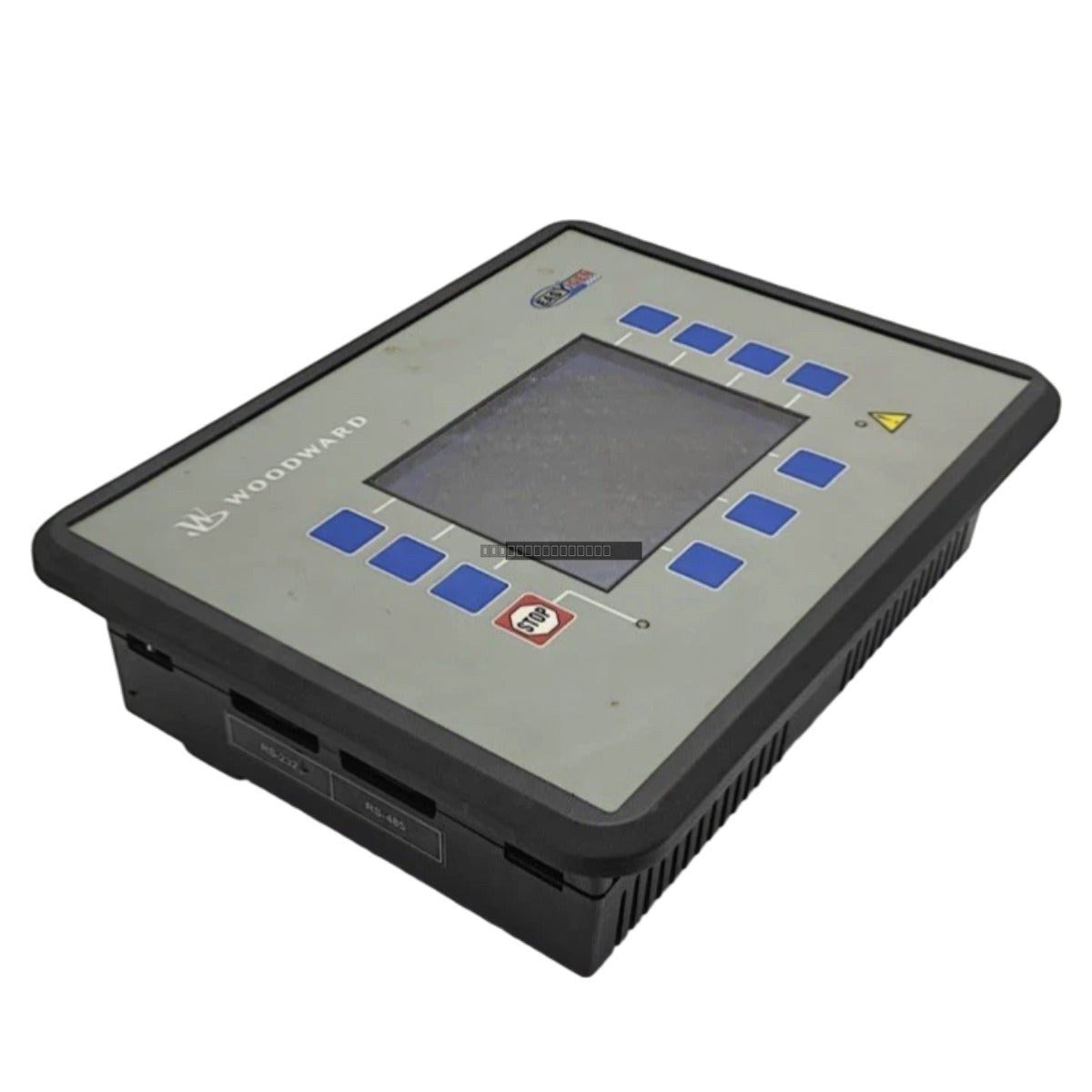

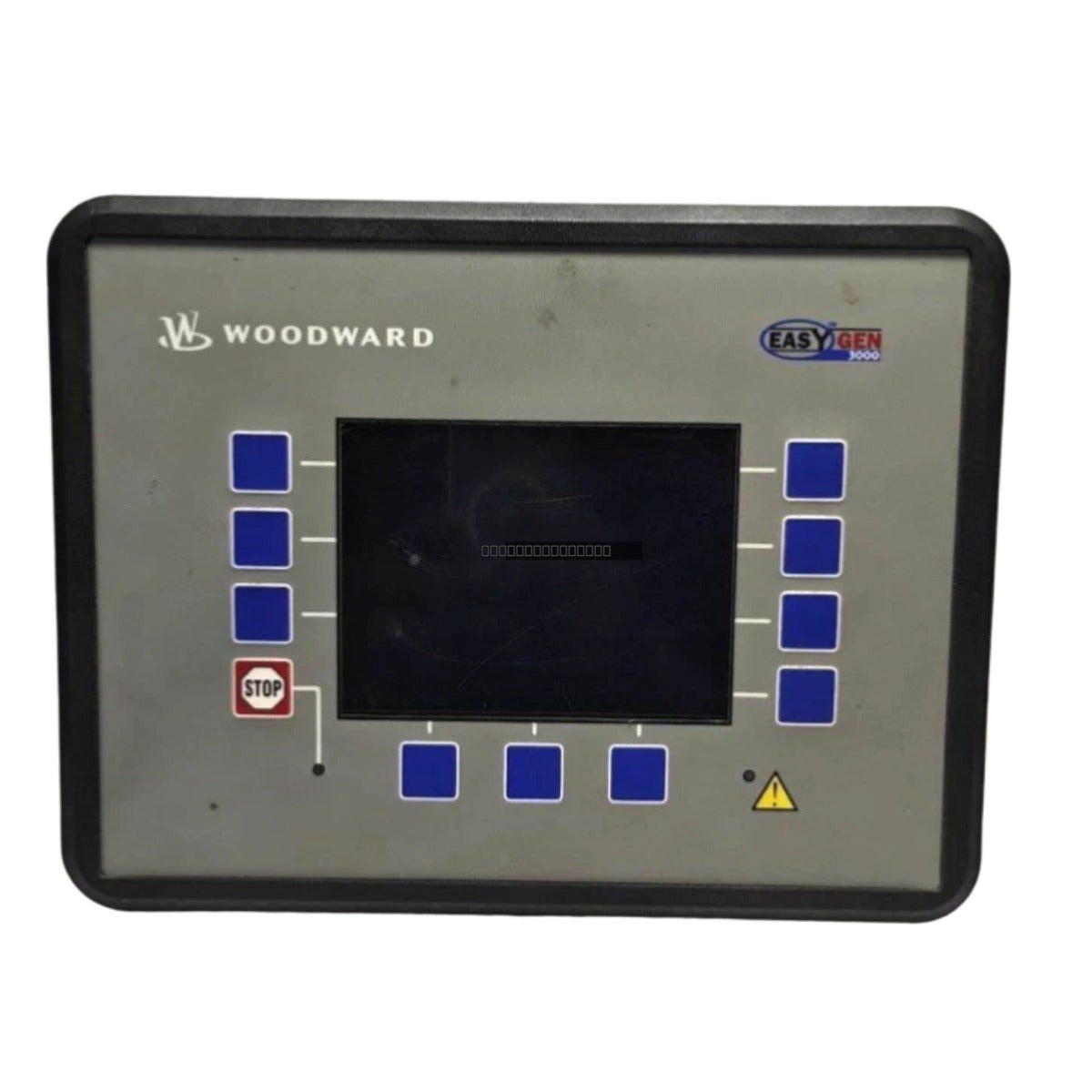

The Woodward EASYGEN-3200-5 is a high-performance genset control and management system designed for sophisticated power generation applications. It offers comprehensive synchronization and load-sharing capabilities for up to 32 generators, making it suitable for islanded operation, mains parallel, or complex multi-unit configurations. By consolidating control logic and engine protection into a single unit, this controller enhances system reliability while reducing the need for auxiliary hardware.
Features
Advanced Synchronization: Supports precise synchronization and load sharing for up to 32 units, ensuring stability in complex power networks.
Integrated PLC Logic: Features internal programmable logic blocks, allowing for custom control sequences and I/O mapping without external controllers.
Robust Communication: Equipped with isolated CANopen and J1939 interfaces for direct ECU communication, plus Ethernet and RS-485 ports for Modbus TCP/RTU integration.
Predictive Diagnostics: Real-time monitoring and rapid fault response capabilities to minimize downtime in mission-critical environments.
Flexible Power Input: Wide-range DC power supply compatibility (8 to 40 VDC) suitable for standard 12V or 24V battery systems.
Applications
This controller is widely deployed in mission-critical infrastructure where high availability is required, including data centers, healthcare facilities, and heavy industrial or mining operations. Its ability to manage complex load transitions makes it an ideal choice for standby and prime power systems.
Technical Specifications
Model
EASYGEN-3200-5
Brand
Woodward
Controller Type
Genset Management and Control
Power Supply
12/24 VDC (8 to 40 VDC)
Power Consumption
Max 20 Watts
Operating Temperature
-20 to 70 deg C
Installation Guidelines
Ensure the controller is mounted in a vibration-dampened enclosure suitable for the specified operating temperature range.
Use shielded twisted-pair cabling for all communication interfaces (CAN, RS-485, Ethernet) to mitigate EMI in industrial environments.
Verify that the DC power input is properly fused according to local electrical codes.
Always disconnect power before performing any wiring changes or module removal to prevent electrical damage or system faults.
Ensure proper grounding of the chassis to the system common ground to maintain signal integrity.
FAQ
Can the EASYGEN-3200-5 handle mains parallel operations? Yes, it is designed to manage islanded, mains parallel, and multi-generator operations effectively.
What communication protocols are supported? The unit supports CANopen, J1939, Modbus TCP, and Modbus RTU.
