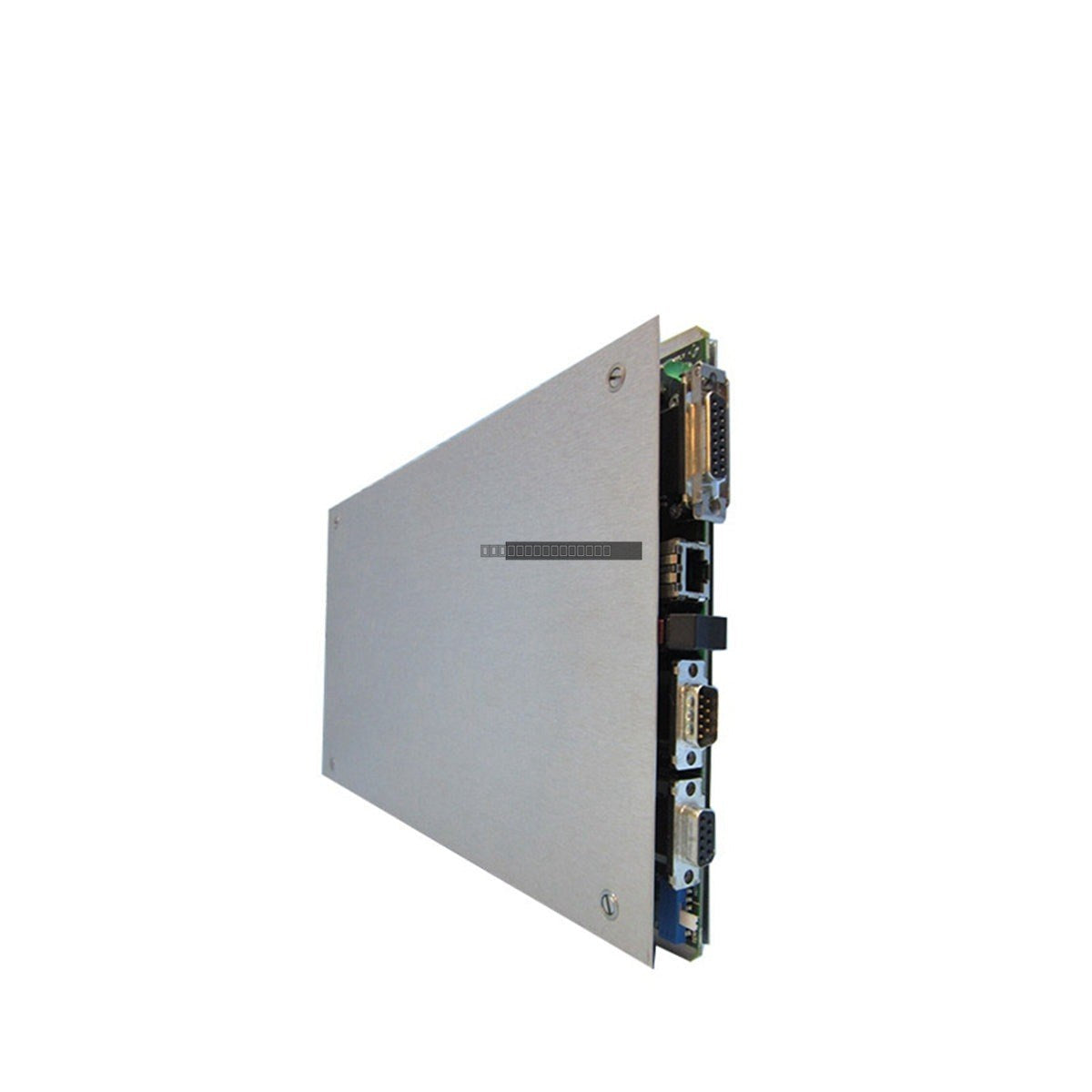

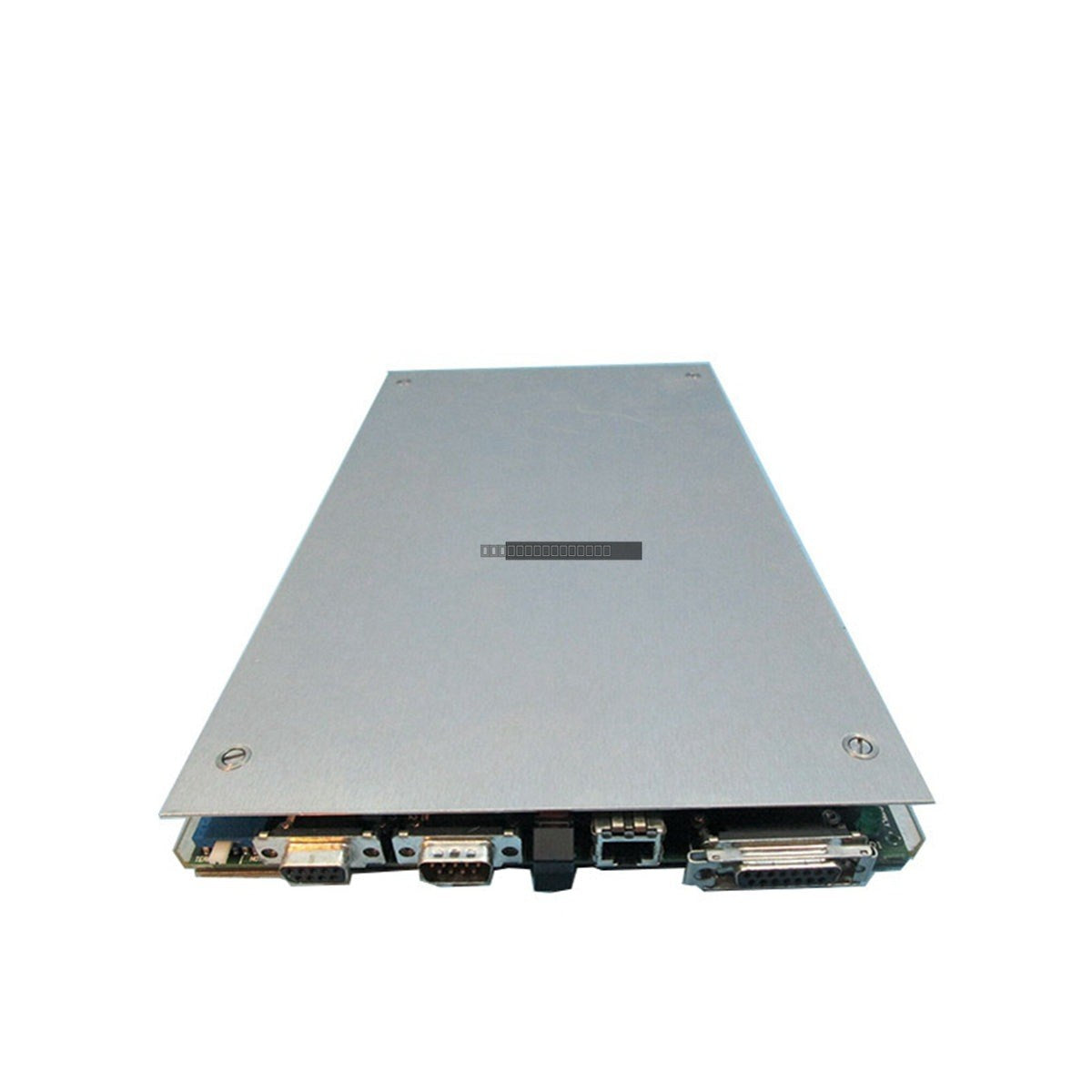

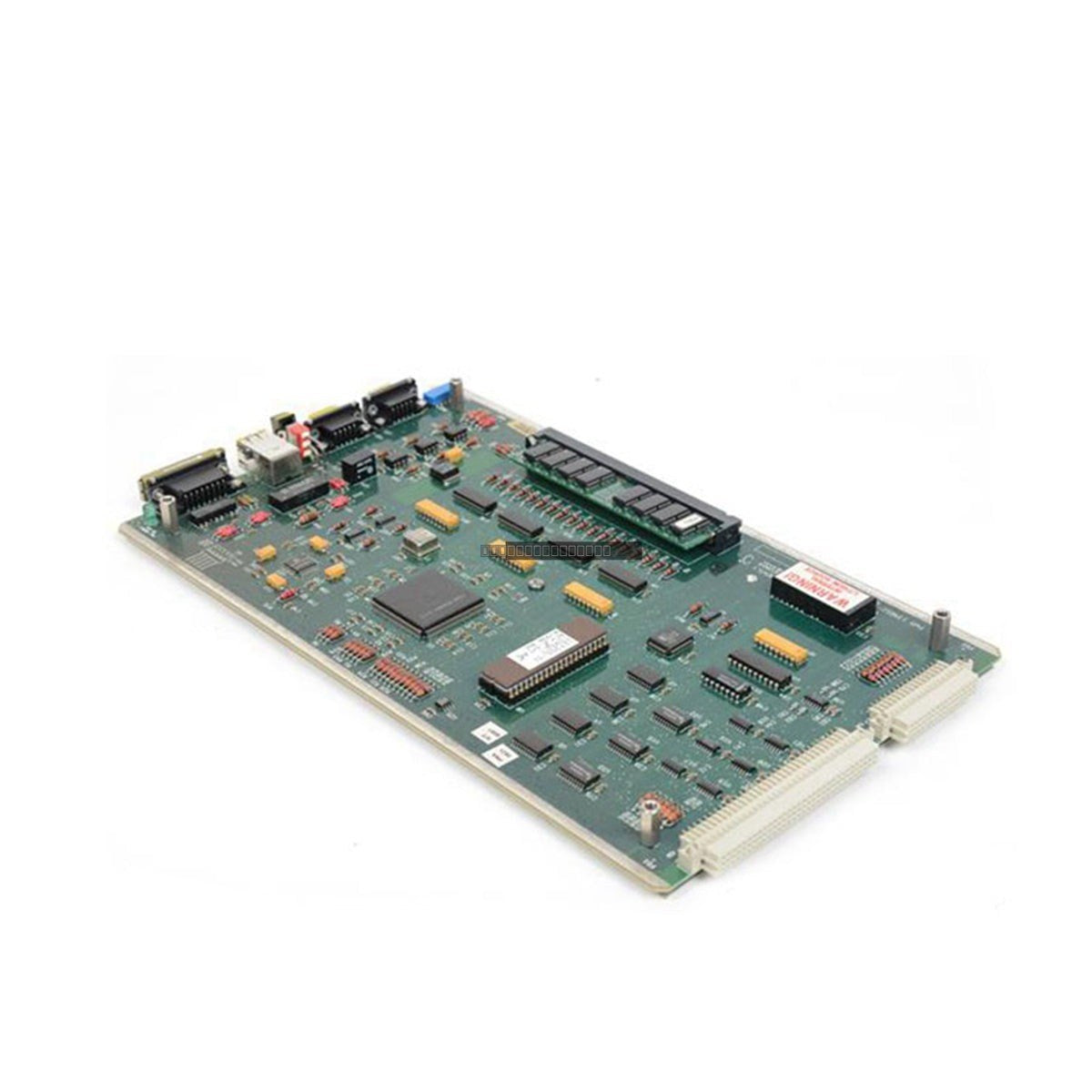

Bently Nevada 134652-01 Transient Data Interface Module

Description

The Bently Nevada 134652-01 Transient Data Interface (TDI) module serves as the primary communication gateway and processor for the 3500 Machinery Protection System. By integrating the functions of a traditional Rack Interface Module (RIM) with high-speed transient data acquisition, this unit enables the continuous monitoring and collection of both steady-state and dynamic waveform machinery data. It is essential for advanced vibration analysis and diagnostic reporting within the Bently Nevada ecosystem.

Features

• Seamless integration with Bently Nevada System 1 condition monitoring software and 3500 configuration utilities.
• Facilitates the capture of critical startup, shutdown, and transient waveform information.
• Provides high-speed Ethernet connectivity for efficient data transfer to external host systems.
• Designed for full compatibility with standard 3500 series M-series monitors, including the 3500/40M and 3500/42M modules.
• Features dual-buffer architecture to ensure data integrity during transient events and rapid recovery following power interruptions.

Applications

This module is engineered for use in industrial environments requiring detailed machinery health diagnostics, such as power generation plants, petrochemical refineries, and large-scale rotating equipment facilities. It acts as the bridge between the 3500 rack and external control systems, including DCS and PLC networks, ensuring critical machine data is available for real-time analysis.

Technical Specifications

Installation Guidelines

• Ensure the 3500 rack is powered down before inserting or removing the TDI module to prevent damage to the backplane connectors.
• The module must be installed in the designated slot of the 3500 rack, typically the slot adjacent to the power supplies.
• Ensure proper ESD precautions are taken during handling to protect sensitive internal components.
• Verify that the Ethernet cable is securely connected and that shielding requirements for the facility's network cabling are met to minimize electromagnetic interference.
• Confirm that the module firmware and 3500 configuration software versions are compatible before commissioning.

FAQ

Does the 134652-01 support remote diagnostics?

Yes, the TDI module allows for remote data collection and diagnostics when used in conjunction with Bently Nevada System 1 software over an Ethernet connection.

Is this module compatible with all 3500 series monitors?

The 134652-01 is designed to work with standard 3500 series monitors. Please consult your specific system configuration documentation to ensure compatibility with your existing monitor modules.
