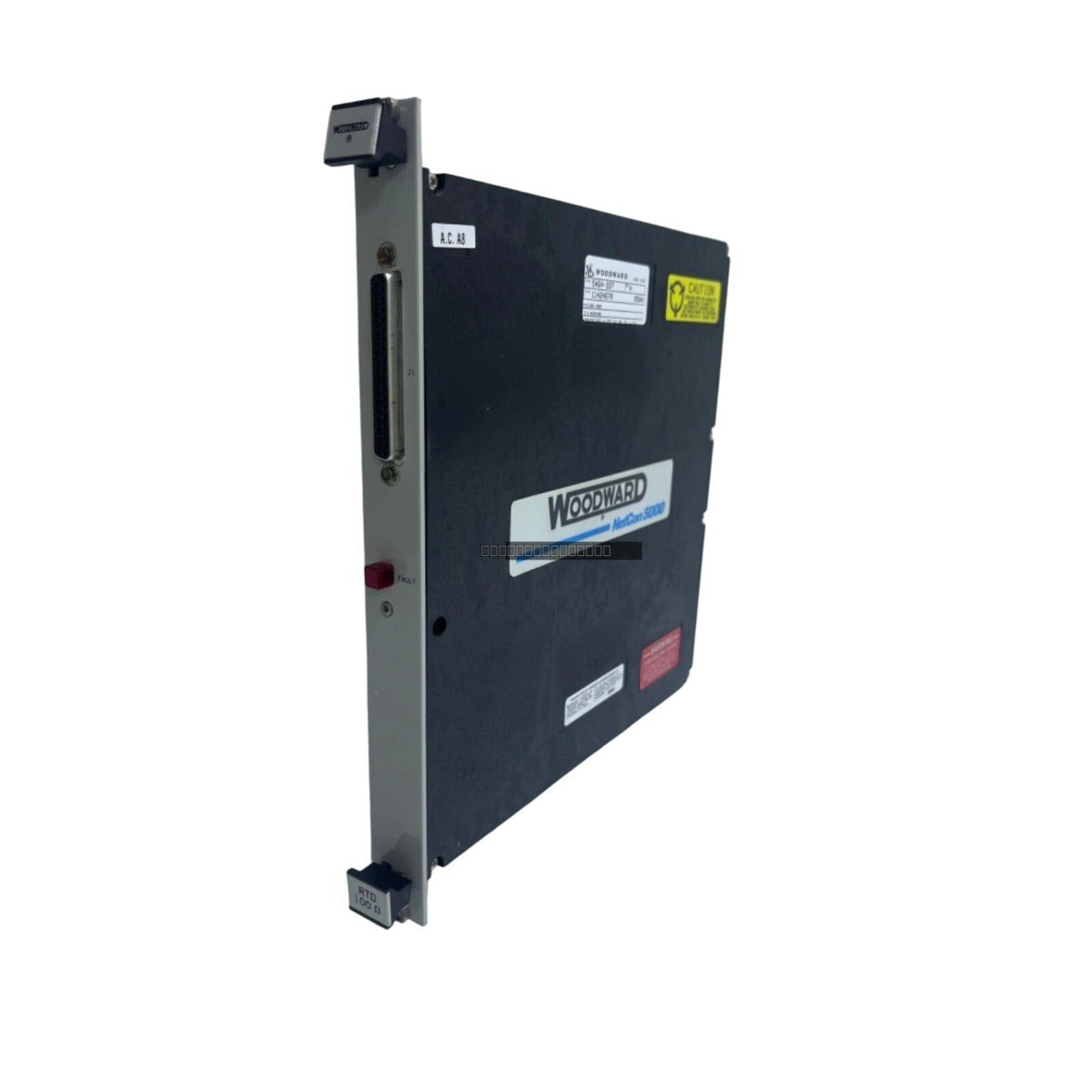

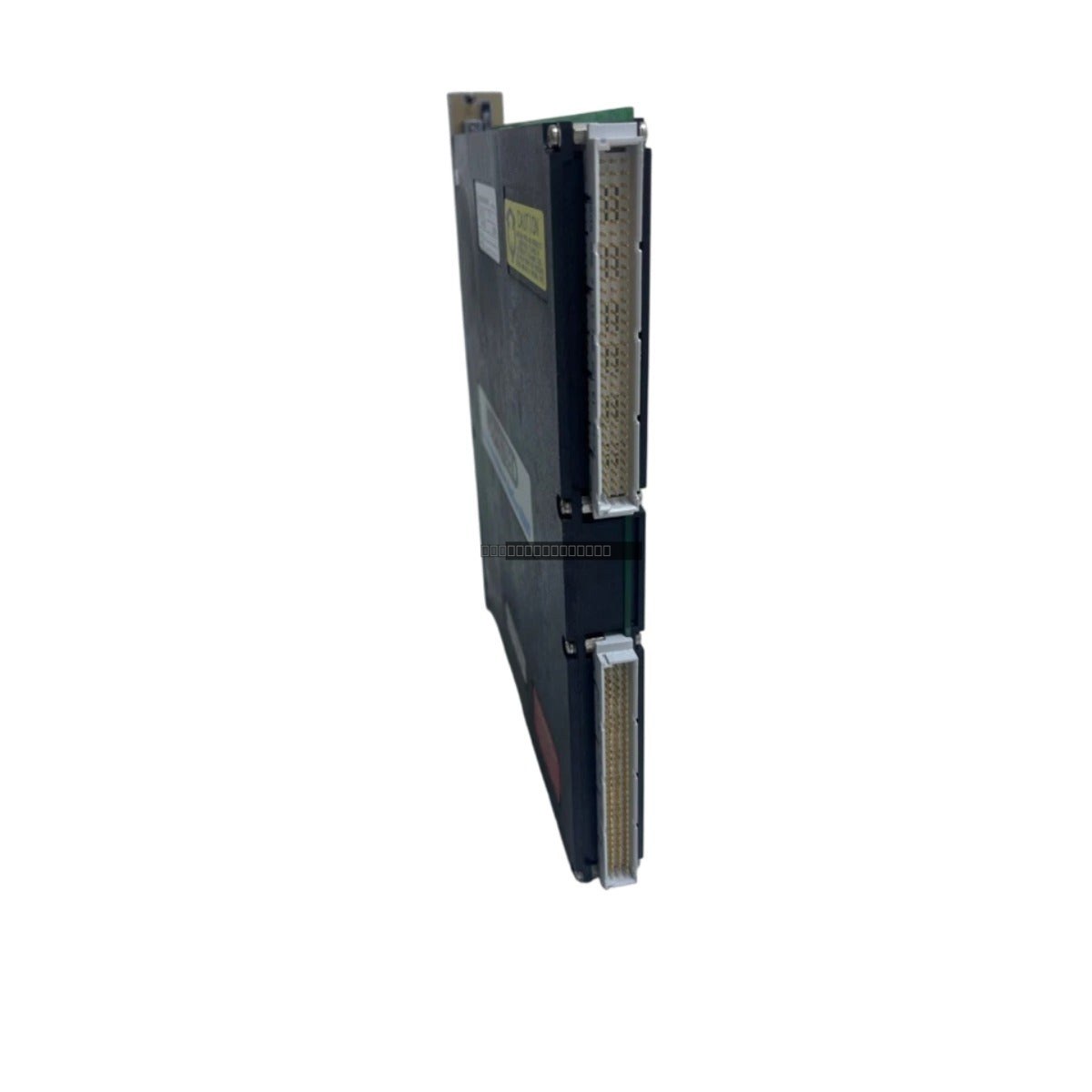

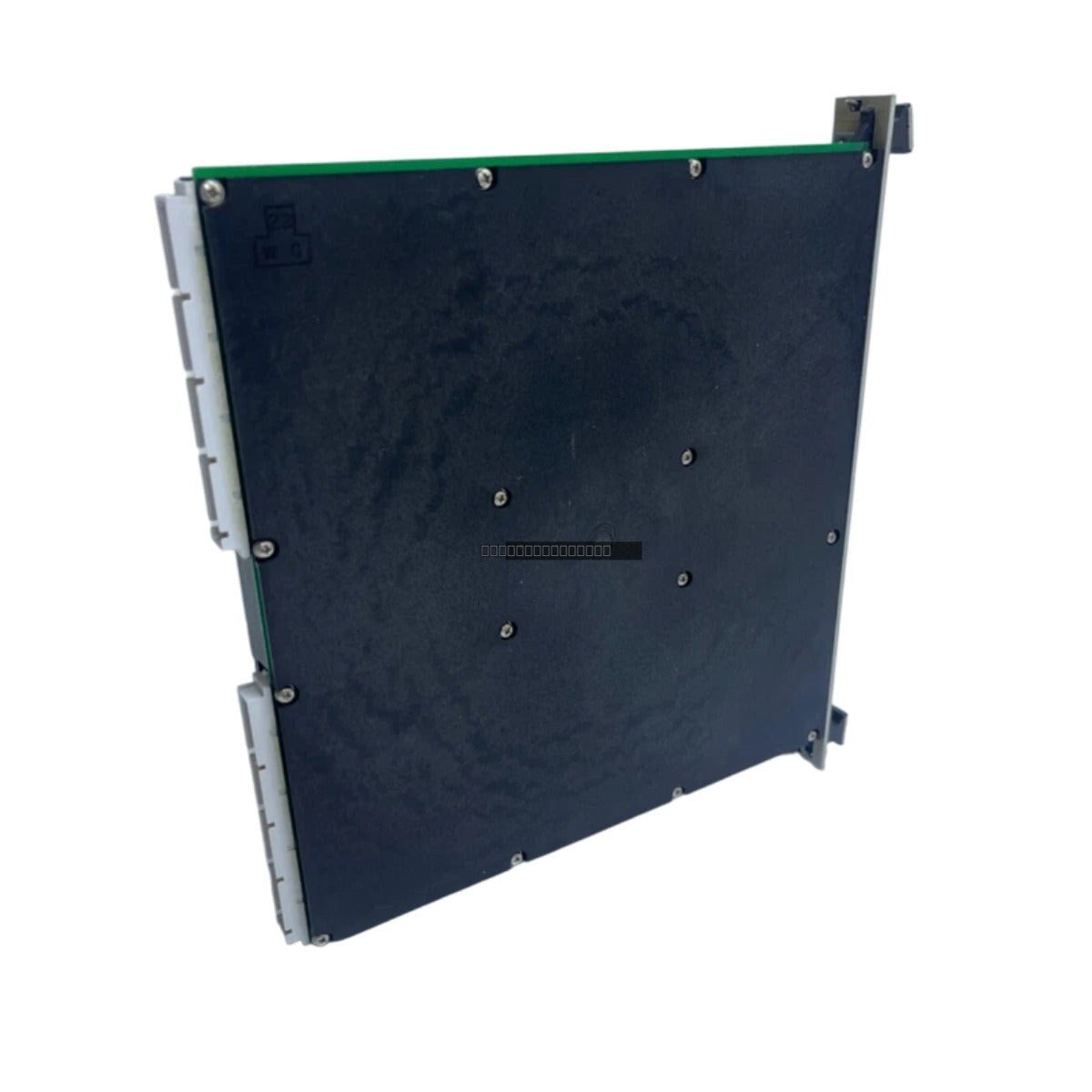

The Woodward 5464-013 is a semi-insulated input driver module designed for integration within the NetCon 5000 control system platform. This module serves as a critical interface component, facilitating signal conditioning between field-level sensors and the system's central processing unit. By providing a stable link for data acquisition, it supports the operational integrity of turbine control systems and power generation infrastructure, even when deployed in environments subject to high levels of electrical interference.
Features
Engineered for the Woodward NetCon 5000 architecture, ensuring seamless backplane compatibility.
Integrated red LED fault indicator for immediate visual diagnostic feedback and reduced maintenance downtime.
Semi-insulated circuit design balancing high-speed signal processing with necessary protection.
High-grade PC board construction optimized for thermal stability within industrial control cabinets.
Designed for panel-mount installation within standard control racks.
Applications
This input driver module is primarily utilized in legacy power generation facilities and complex industrial turbine control systems. It is essential for applications requiring deterministic communication and reliable signal handling within time-critical control loops.
Technical Specifications
Model
5464-013
Brand
Woodward
Series
NetCon 5000
Module Type
Semi-Insulated Input Driver
Fault Indication
Integrated Red LED
Mounting
Panel Mount / Rack Add-On
Operating Temperature
-20 to 65 deg C
Typical Power Consumption
4.0 W
Installation Guidelines
Ensure the control system is powered down before inserting or removing the module from the backplane.
Use appropriate ESD protection measures when handling the PC board to prevent component damage.
Verify that the module is securely seated in the rack to maintain proper backplane communication.
Ensure adequate ventilation within the control cabinet to maintain operating temperatures within the specified -20 to 65 deg C range.
Route signal wiring away from high-voltage cables and significant EMI sources to maintain signal integrity.
FAQ
What is the primary function of the 5464-013 module? The 5464-013 acts as a semi-insulated input driver, conditioning signals from field sensors for use by the Woodward NetCon 5000 controller.
How do I troubleshoot a fault on this module? The module includes an integrated red LED indicator on the front panel, which provides immediate visual confirmation if an internal circuit fault or signal deviation is detected.
Is this module compatible with other Woodward series? The 5464-013 is specifically designed for the NetCon 5000 architecture. Please consult your system documentation to ensure compatibility with your specific controller revision.
