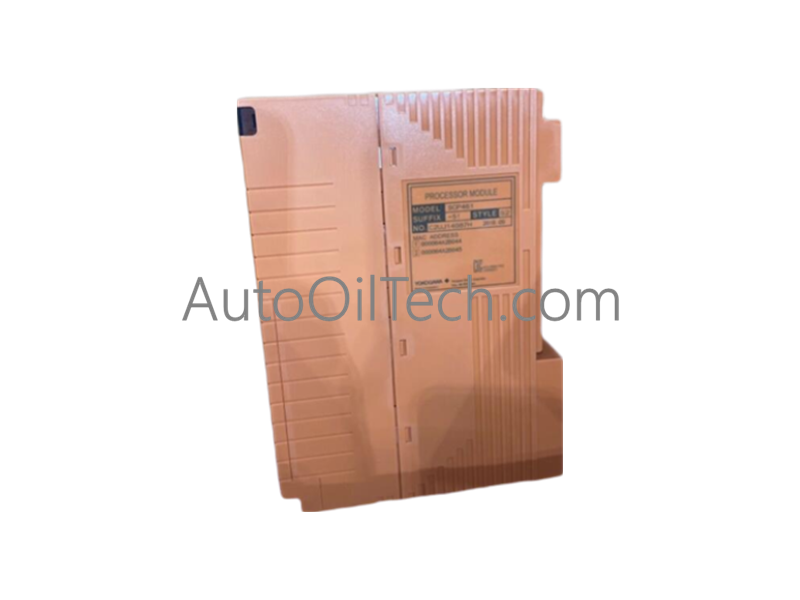

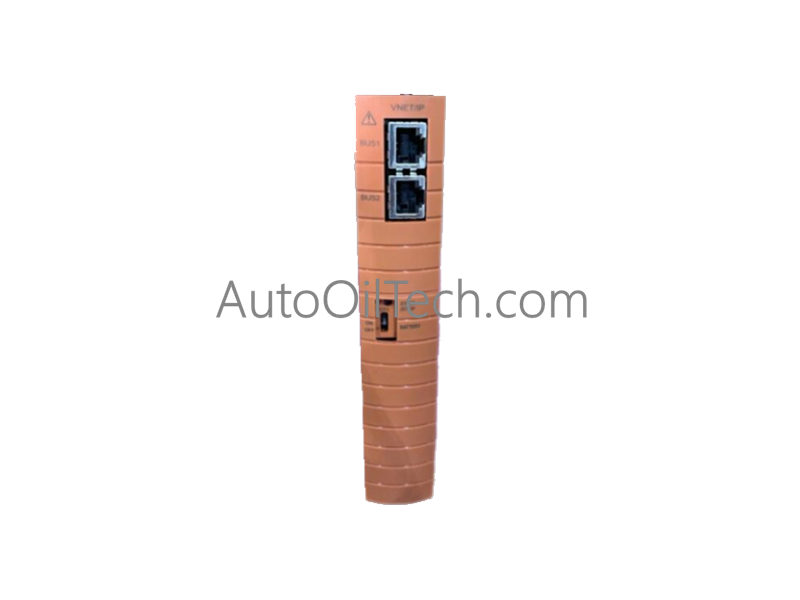

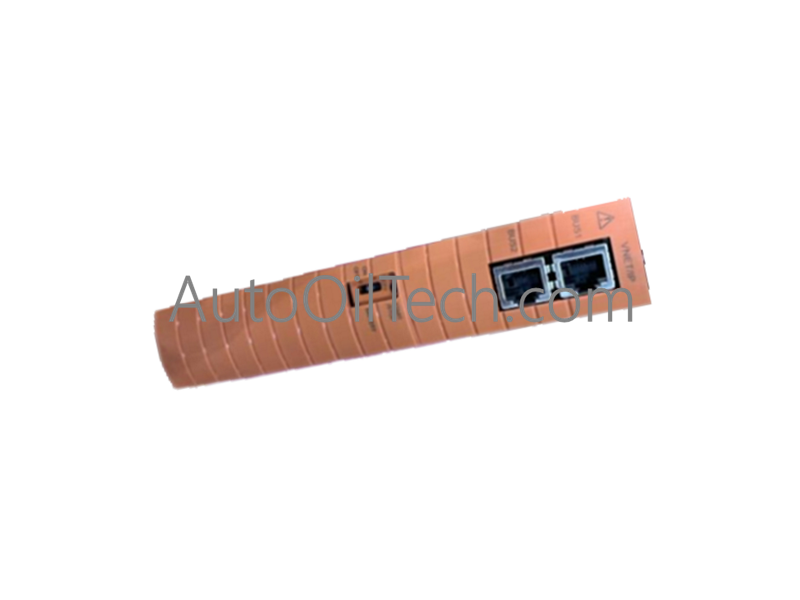

YOKOGAWA SCP461-51 S2 Processor

The Yokogawa SCP461-51 S2, also cataloged as the SCP461-51 S2 Processor Module, operates as a dedicated hardware component for safety control and logic execution within Vnet/IP network architectures.

Suffix Breakdown & Model Matrix

Hardware Specifications

DCS Process Control and Field Connectivity

The SCP461-51 S2 provides the computational backbone for safety control units within the Yokogawa DCS ecosystem. Designed for high-availability environments, the module supports HART protocol integration for field instrumentation, facilitating continuous diagnostics across the loop. To maintain high-fidelity process control, the unit incorporates advanced cold junction compensation (CJC) for integrated thermocouple inputs and provides channel-to-channel isolation, preventing common-mode electrical noise from affecting the safety-critical control loops during operation.

Frequently Asked Questions

Q: How does the dual-redundant power supply configuration function during module failure?

A: The dual-redundant design allows the control unit to maintain operation if one power input path is interrupted; however, the module must be powered down before physical replacement of the unit to ensure the backplane bus remains stable.

Q: Is the firmware on the SCP461-51 S2 field-upgradable?

A: Firmware updates must be performed via the engineering station connected to the Vnet/IP network; ensure that the safety checksums are validated after any flashing procedure to maintain the integrity of the safety control function license.

Field Installation Guidelines

1. Ensure the rack mounting rails are securely grounded to the cabinet chassis before installing the unit to facilitate electromagnetic shielding.
2. Verify the suffix code matches the site power requirements (100-120 VAC, 220-240 VAC, or 24 VDC) prior to connecting the supply lines.
3. For -F variants, ensure clear airflow pathways for the integrated fan unit; do not obstruct ventilation slots to prevent localized thermal degradation.
4. Utilize shielded cabling for all Vnet/IP connections and ensure shield termination at the designated grounding bar to minimize EMI/RFI impact.
5. Confirm seating by checking that the locking mechanisms engage fully into the rack rails, preventing intermittent connections caused by mechanical vibration.
