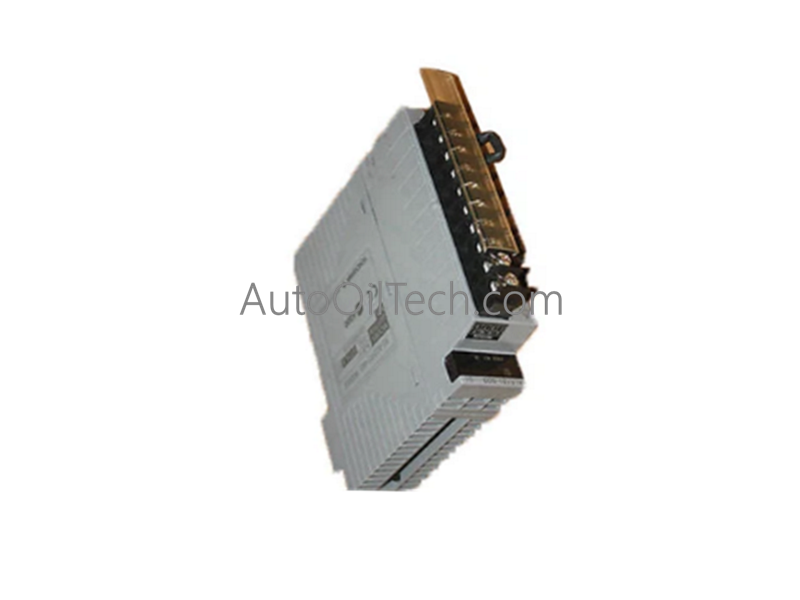

Yokogawa S2EN402-S0001 Interface Modules

Configured for high-speed protocol processing and network interface routing between the Safety Control Unit (SCU) and distributed N-IO nodes, the Yokogawa S2EN402-S0001 (S2EN402-S0001 N-ESB Bus Coupler Module) provides direct physical/electrical execution. The module serves as a 2-port communication gateway within ProSafe-RS Safety Instrumented Systems (SIS) to transmit safety-critical control signals over the native N-ESB network infrastructure.

Hardware Specifications

Yokogawa Process Control and DCS Optimization

• 4-20 mA HART Loop and Field Network Interactivity: While the S2EN402-S0001 drives digital serial frames across the N-ESB backbone, it natively bridges control messages bound for analog I/O structures. The network interface decouples the high-speed Ethernet-based backplane parameters from localized 4-20 mA HART loops, maintaining continuous communication passthrough without distorting analog validation values.
• Channel-to-Channel Isolation Control: The two physical RJ-45 port interfaces are fitted with high-frequency galvanic isolation barriers. This layout isolates common-mode voltage spikes, external ground loops, and transient surges from bridging across separate network nodes, preventing localized line faults from degrading main processor bus logic.

Frequently Asked Questions

Q: What are the installation slot requirements for configuring dual-redundant operation with this module?

A: To establish an active dual-redundant link, a pair of S2EN402-S0001 modules must be paired together. The base units must be seated into an odd-numbered slot and the adjacent even-numbered slot immediately to its right (spanning slots 1 to 8 on the base plate), routing data independently over N-ESB bus 1 and bus 2.

Q: Can the network cables be safely extracted or inserted while the system backplane power is active?

A: Yes, the RJ-45 physical ports support hot-plugging of the Category 5 UTP lines during runtime. In a dual-redundant setup, the paired backup module absorbs the total transmission load instantaneously, maintaining uninterrupted safety communication to the downstream N-IO blocks.
