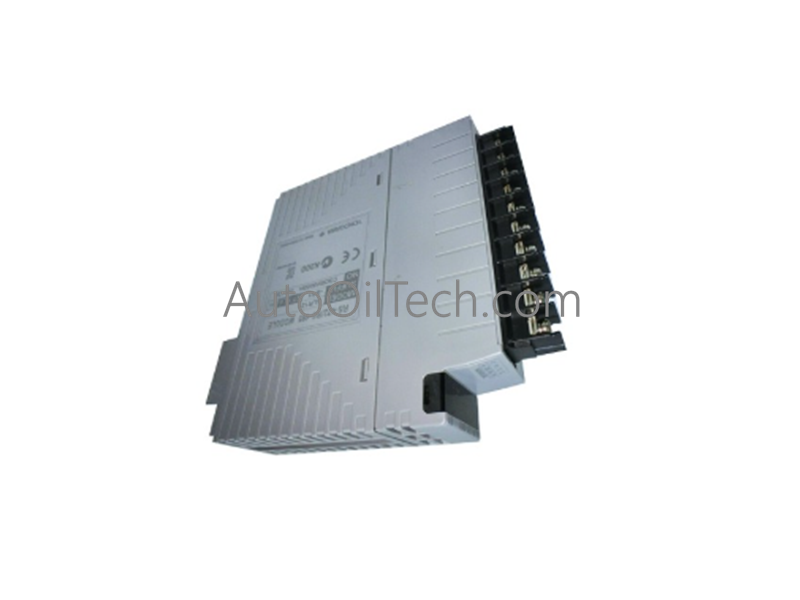

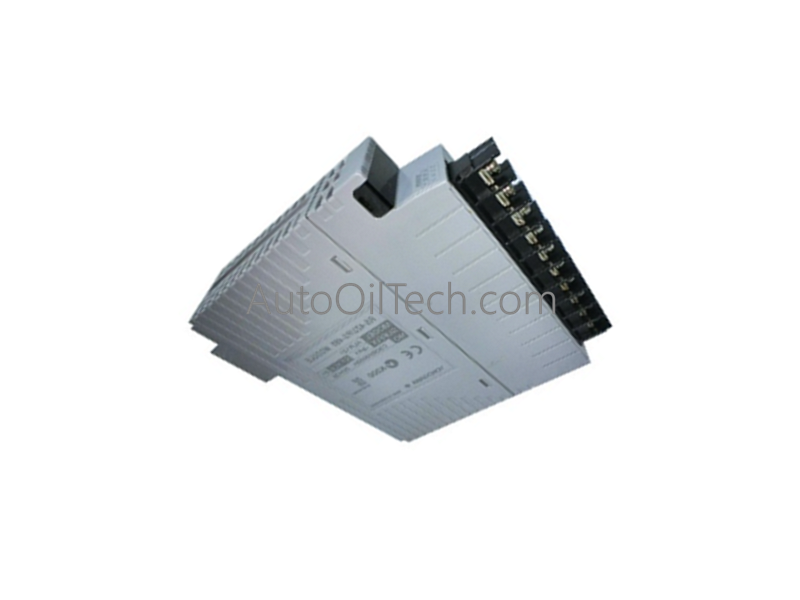

Yokogawa CP330D S3 CPU Processors

Configured for real-time process control and closed-loop logic execution in CENTUM CS DCS platforms, the Yokogawa CP330D S3 (CP330D Processor Module) provides direct physical/electrical execution. It handles real-time loop control, alarm processing, and deterministic system synchronization across Field Control Station (FCS) architectures.

Hardware Specifications

DCS Process Control & Fieldbus Communication Integration

• 4-20 mA HART Loop Protocol Processing: Integrates directly with standard analog field signals, executing high-speed PID control loops while permitting pass-through digital HART diagnostics to asset management software without loop interruption.
• FOUNDATION Fieldbus & Subsystem Connectivity: Communicates deterministically with fieldbus interface cards and I/O nests, delivering high-speed data routing across internal station buses.
• Galvanic & Channel-to-Channel Isolation: Utilizes backplane isolation barriers and redundant channel switching logic to ensure reliable bumpless transfer during primary processor failover.

Frequently Asked Questions

Q: How does the Yokogawa CP330D S3 module handle failover in a dual-redundant configuration?

A: The module executes synchronized state tracking across the redundant FCS backplane, enabling immediate switchover to the standby processor without process interruption upon primary module fault detection.

Q: What environmental thermal limits apply to the CP330D S3 module during continuous operation?

A: The module is specified for continuous operation between 0 and 55 deg C within properly ventilated control station enclosures.

Field Installation Guidelines

• FCS Slot Insertion: Align the module card edges with the designated guide rails in the Field Control Unit (FCU) backplane. Firmly seat the module into the backplane connectors and tighten retaining latches to secure the assembly.
• Grounding & Shielding: Connect all cable shield drain wires directly to the station enclosure ground bus. Ensure a single-point grounding strategy to prevent ground loops from disturbing signal lines.
• Thermal Management: Maintain a minimum of 50 mm unrestricted clearance above and below the FCU card cage to permit natural air convection cooling across the unit heatsink structures.
