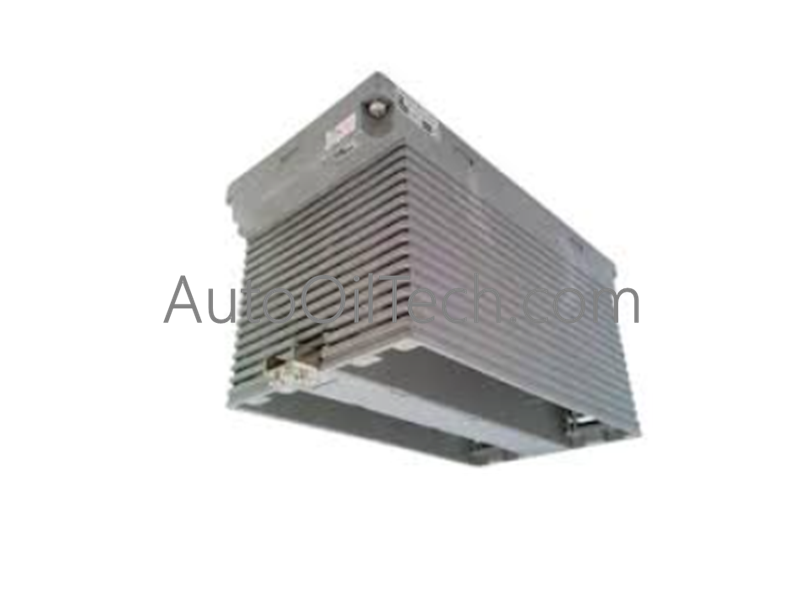

Yokogawa AMN33 S2 Communication Base Rack Module

The Yokogawa AMN33 S2, also cataloged as the AMN33 Communication Module, operates as a dedicated hardware component for multi-signal data acquisition and fieldbus routing within Yokogawa DCS control networks.

Suffix Breakdown & Model Matrix

• AMN33: Base hardware platform designating the multi-input communication rack chassis.
• S2: Style revision code indicating specific internal circuit layout, pin header alignment, and backplane housing compatibility.

Hardware Specifications

Process Control and Channel Isolation Properties

• 4-20 mA HART Loop Protocol Compatibility: Directly conditions 4-20 mA current loop inputs and superimposes HART digital communication across dedicated internal bus paths.
• Channel-to-Channel Isolation: Incorporates individual isolation barriers between input channels to prevent earth loop interferences and transient voltage cross-talk.
• FOUNDATION Fieldbus Connectivity: Supports deterministic signal pass-through between modular sensor terminals and primary controller backplane nodes.

Frequently Asked Questions

Q: How does the AMN33 S2 handle analog-to-digital conversion across mixed sensor inputs?

A: The module uses an internal 16-bit A/D converter running at a sampling speed of 100 samples per second to convert voltage, 4-20 mA current, and RTD inputs.

Q: Can Pt100, Ni120, and Cu50 RTD sensors be configured simultaneously on the same unit?

A: Yes, channels are independently configurable via software parameters to accept specific RTD curves alongside standard voltage and current signals.

Q: Is online hot-swapping supported for the AMN33 S2 module during system operation?

A: Hot-swapping is permitted provided the retaining latches are fully disengaged and proper ESD grounding procedures are followed during removal.

Field Installation Guidelines

1. Align the base rack module housing with the mounting slots on the DIN rail or system rack frame, pushing firmly until the locking mechanisms click into place.
2. Secure top and bottom retaining screws to ensure proper chassis grounding contact and vibration resistance.
3. Route field input signal lines (voltage, 4-20 mA, RTD) in separate grounded wire channels, keeping them at least 300 mm away from high-voltage AC cables.
4. Connect all cable shield drain wires to a single point on the cabinet system ground busbar to eliminate ground potential loops.
