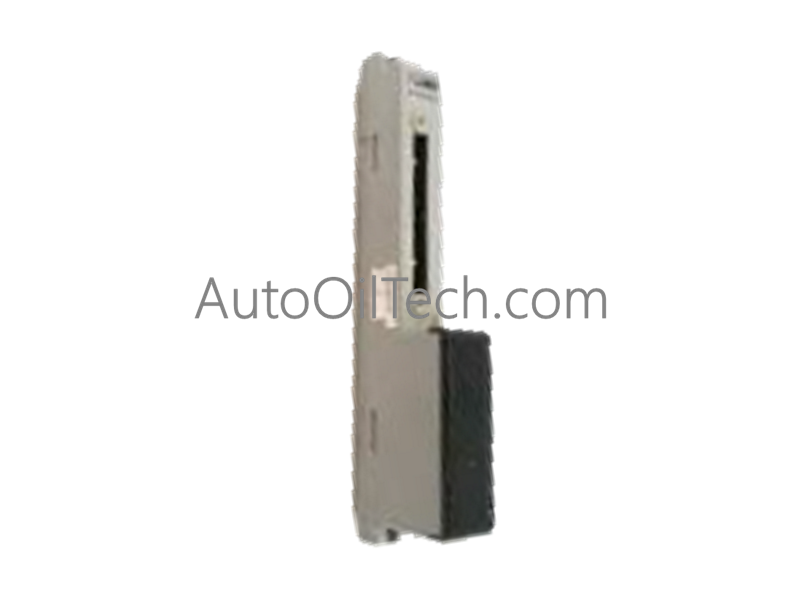

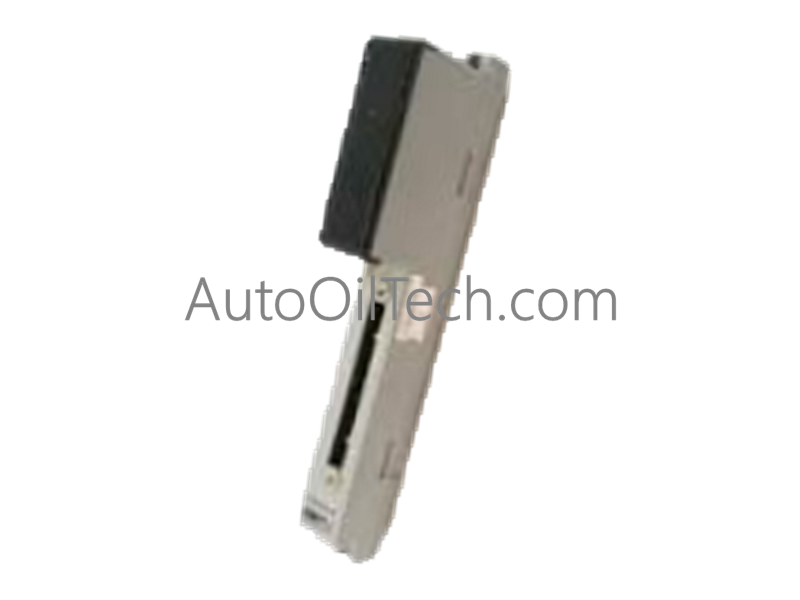

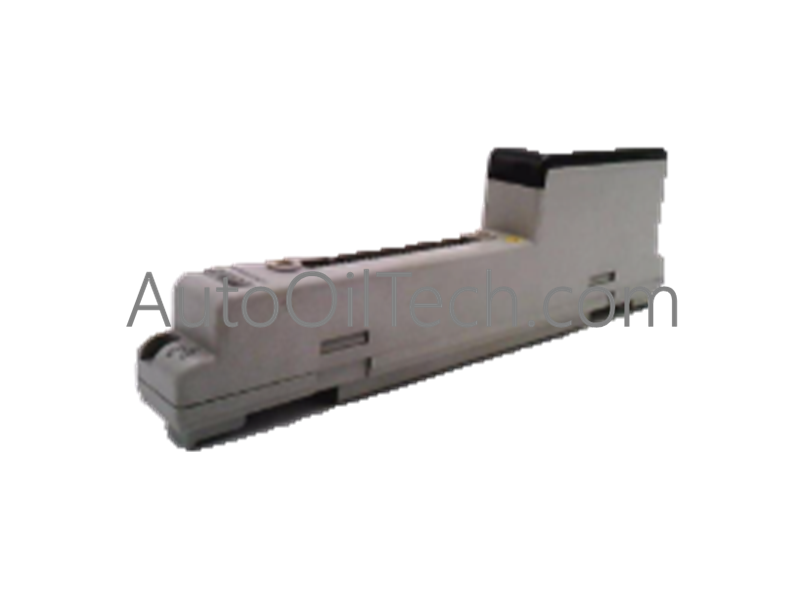

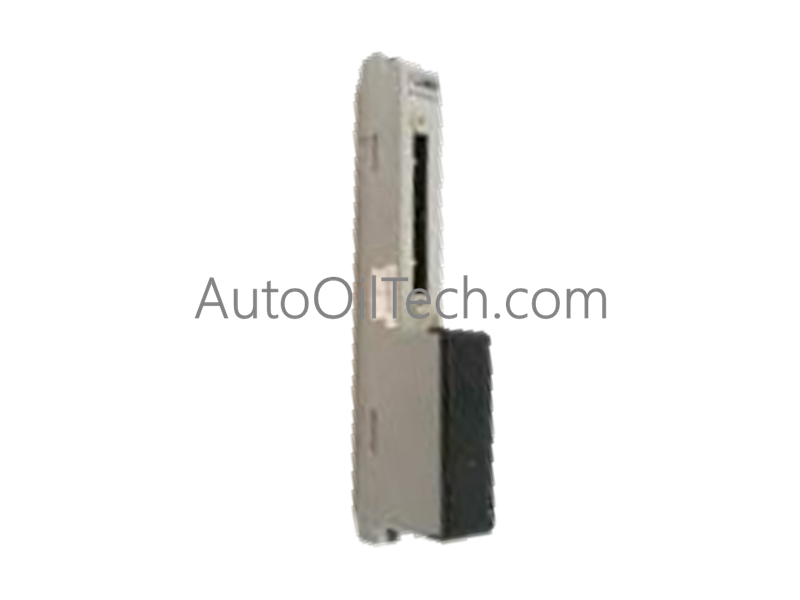

Yokogawa AMN32 S1 I/O Nest Module

The YOKOGAWA AMN32 S1, also cataloged as the AMN32 Connector I/O Nest Module, operates as a dedicated hardware component for 32-point signal distribution and terminal interface connection within CENTUM CS 3000 R3 platforms.

Suffix Breakdown & Model Matrix

• AMN32: Base designation for the high-density 32-point connector I/O nest hardware framework.
• S1: Style revision identifier specifying backplane connector pin layouts and housing dimensions.

Hardware Specifications

Process Control and Channel Isolation Properties

• Channel-to-Channel Isolation: Provides 500 VAC galvanic isolation across individual signal channels to prevent cross-talk and ground loop currents.
• 4-20 mA HART Loop Compatibility: Supports direct interface paths for 4-20 mA current loops and digital signal pass-through across Vnet communication networks.
• Integrated Self-Diagnostics: Features built-in hardware diagnostic testing that continuously monitors line integrity and power supply tolerances at 100 ms update cycles.

Frequently Asked Questions

Q: What is the operating voltage tolerance for the 24 VDC power supply input?

A: The module accepts a continuous operating supply voltage range between 20.4 VDC and 28.8 VDC.

Q: What level of galvanic isolation is provided between adjacent channels on the AMN32 S1?

A: The internal isolation circuitry provides 500 VAC galvanic breakdown protection between individual channels.

Q: Does the AMN32 S1 support hot-swapping inside a CENTUM CS 3000 R3 cabinet?

A: Yes, online replacement is supported provided backplane locking latches are properly disengaged and standard anti-static procedures are observed.

Field Installation Guidelines

1. Mount the nest module vertically onto the cabinet DIN rail or backplane slot until the retention locking clips engage fully.
2. Verify that input power levels fall strictly within the 20.4 to 28.8 VDC operating range before energizing the unit.
3. Keep field signal cables physically separated from AC power lines by a minimum distance of 300 mm to avoid electromagnetic interference.
4. Fasten all field wiring securely to the screw terminal block and ensure cable drain shields terminate at a single system earth ground bar.
