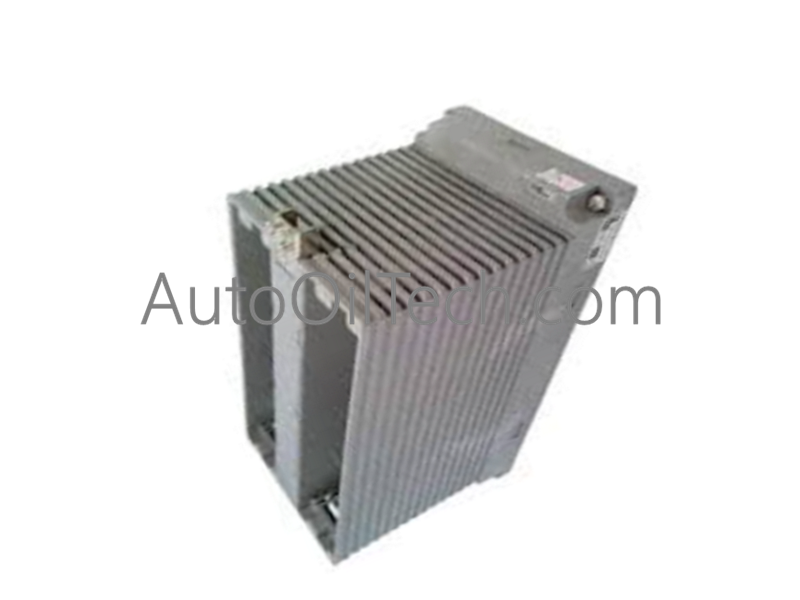

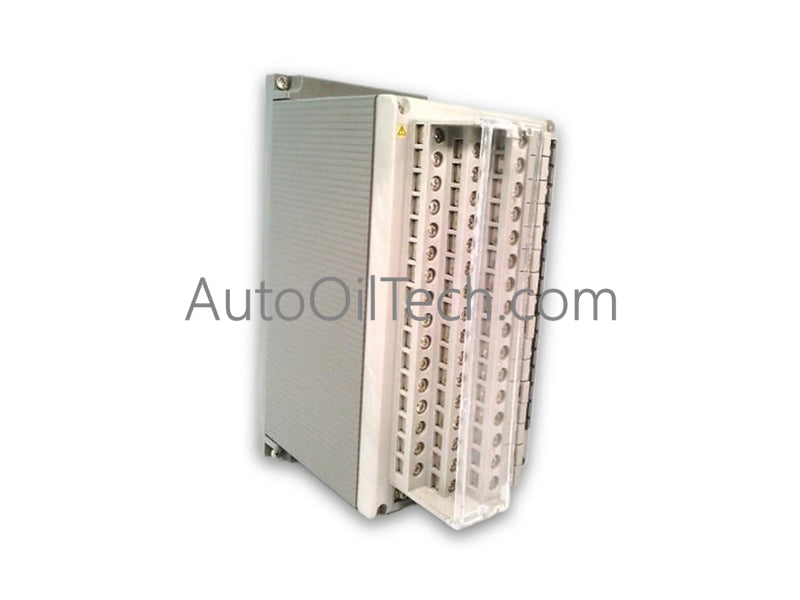

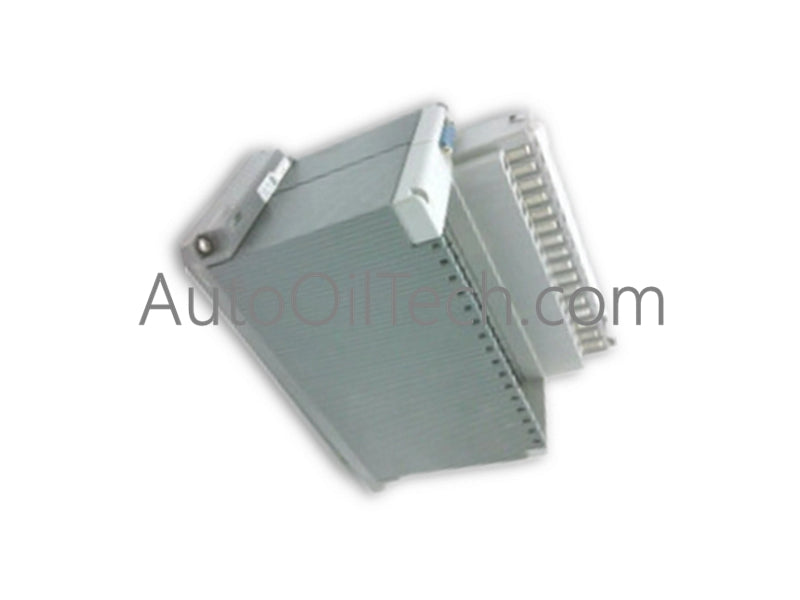

YOKOGAWA AMN11-S1 Analog I/O Rack

The YOKOGAWA AMN11-S1 serves as the primary AMN11 Nest utilized to execute multichannel field wiring termination and bus signal distribution across CENTUM DCS platforms.

Suffix Breakdown & Model Matrix

• AMN11: Base designation for the analog I/O module rack assembly.
• S1: Hardware revision identifier specifying backplane wiring lay and card edge retention dimensions.

Hardware Specifications

Signal Conditioning and Channel Isolation Properties

• Channel-to-Channel Isolation Lines: Backplane physical traces incorporate localized shielding barriers to prevent noise coupling across adjacent analog channels.
• 4-20 mA HART Pass-Through: Engineered to support high-frequency HART digital signal superposition over standard analog loop lines without attenuation.
• Backplane Power Distribution: Heavy copper power bus planes ensure low-resistance 24 VDC delivery across all 16 slot connectors.

Frequently Asked Questions

Q: How does the AMN11-S1 handle internal power distribution for field transmitters?

A: The rack routes a centralized 24 VDC supply bus through internal power planes directly to each slot connector, providing power to connected analog cards.

Q: Are special tools required to insert or remove I/O modules from the 16 slots?

A: No, cards slide into the slot guide rails manually and lock into place using top and bottom thumbscrews to ensure proper backplane pin mating.

Q: Can an individual slot be left empty without interrupting communication across the backplane?

A: Yes, empty slots do not break the continuity of the internal backplane bus, allowing flexible module placement.

Field Installation Guidelines

1. Position the rack assembly horizontally inside a standard industrial cabinet enclosure and secure it using all four mounting hole points.
2. Connect the primary system earth ground wire to the rack ground stud using a low-impedance conductor before applying loop power.
3. Verify that backplane pin headers are free of dust or debris before inserting analog modules into any of the 16 slots.
4. Keep field sensor wiring isolated from motor drives and high-voltage AC cables by running them in separate grounded metal wireways.
