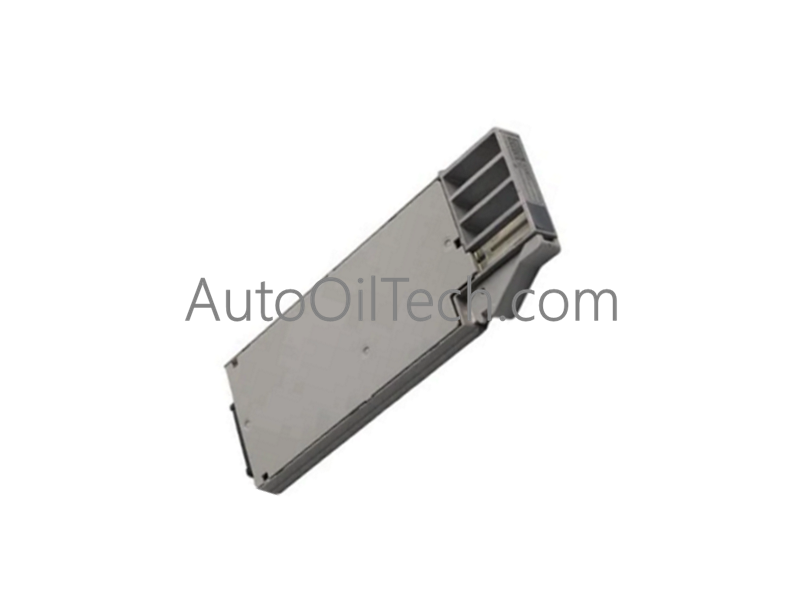

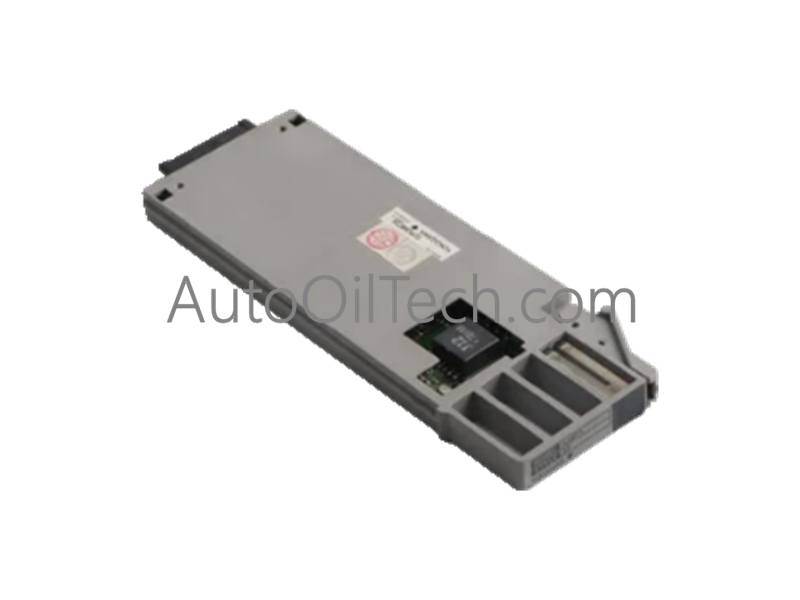

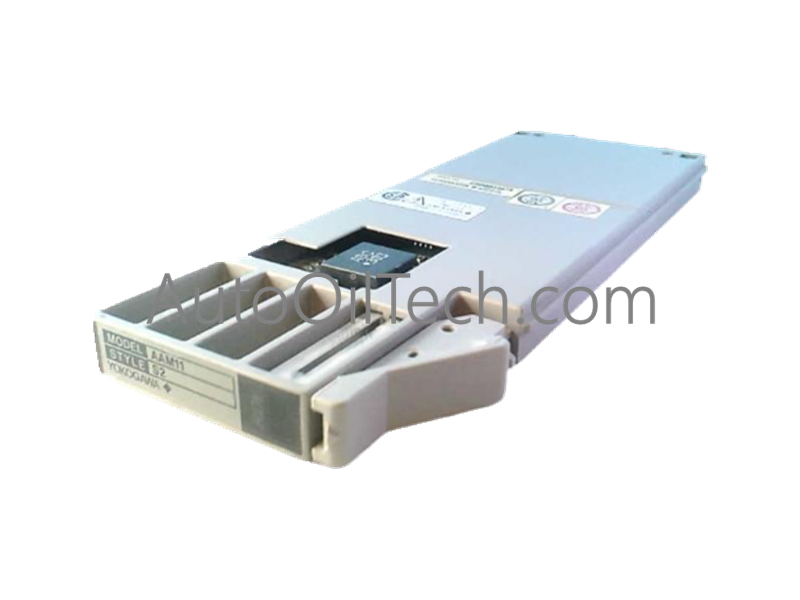

Configured for current and voltage analog signal conversion in distributed control system platforms, the Yokogawa AAM11/S2 (AAM11/S2 Input Module) provides direct physical/electrical execution.
Suffix Breakdown & Model Matrix
S2: Style S2 standard version configuration designed for current and voltage analog input processing.
Hardware Specifications
Parameter
Specification
Model
AAM11/S2
Brand
Yokogawa
Origin
Japan
Weight
1.54 lbs
Dimensions
Standard Yokogawa control card physical format
Operating Temp
0 deg C to 50 deg C
Power Consumption
Standard backplane power rail distribution
Input Signal Type
Current and Voltage Analog Input
Module Type
Input Module
Channel-to-Channel Isolation and DCS Integration
The AAM11/S2 incorporates robust circuit isolation and signal conditioning to preserve measurement accuracy across industrial control networks. Key design attributes include:
Channel-to-channel isolation architecture designed to mitigate ground loops and common-mode noise interference across multi-point analog sensor loops.
Integrated cold junction compensation (CJC) circuitry and precision signal conditioning optimized for high-stability current and voltage measurements.
Deterministic backplane communication interface ensuring synchronized data transmission to the central control processor.
Frequently Asked Questions
Q: Does the AAM11/S2 module support live hot-swapping under power?
A: No. Power must be isolated from the specific rack slot prior to module extraction or insertion to prevent backplane pin damage and transient current surges.
Q: What specific analog signal types are processed by this hardware component?
A: The hardware is engineered to receive and process standard current and voltage analog input signals within industrial control loops.
Field Installation Guidelines
Secure the module firmly into the designated Yokogawa rack slot, ensuring physical retention latches are fully engaged to withstand industrial vibration.
Terminate all field sensor wiring onto the designated terminal blocks, maintaining proper shielding and single-point grounding to prevent electromagnetic interference.
Verify that environmental conditions remain within normal operating parameters before energizing the control rack power supply.
