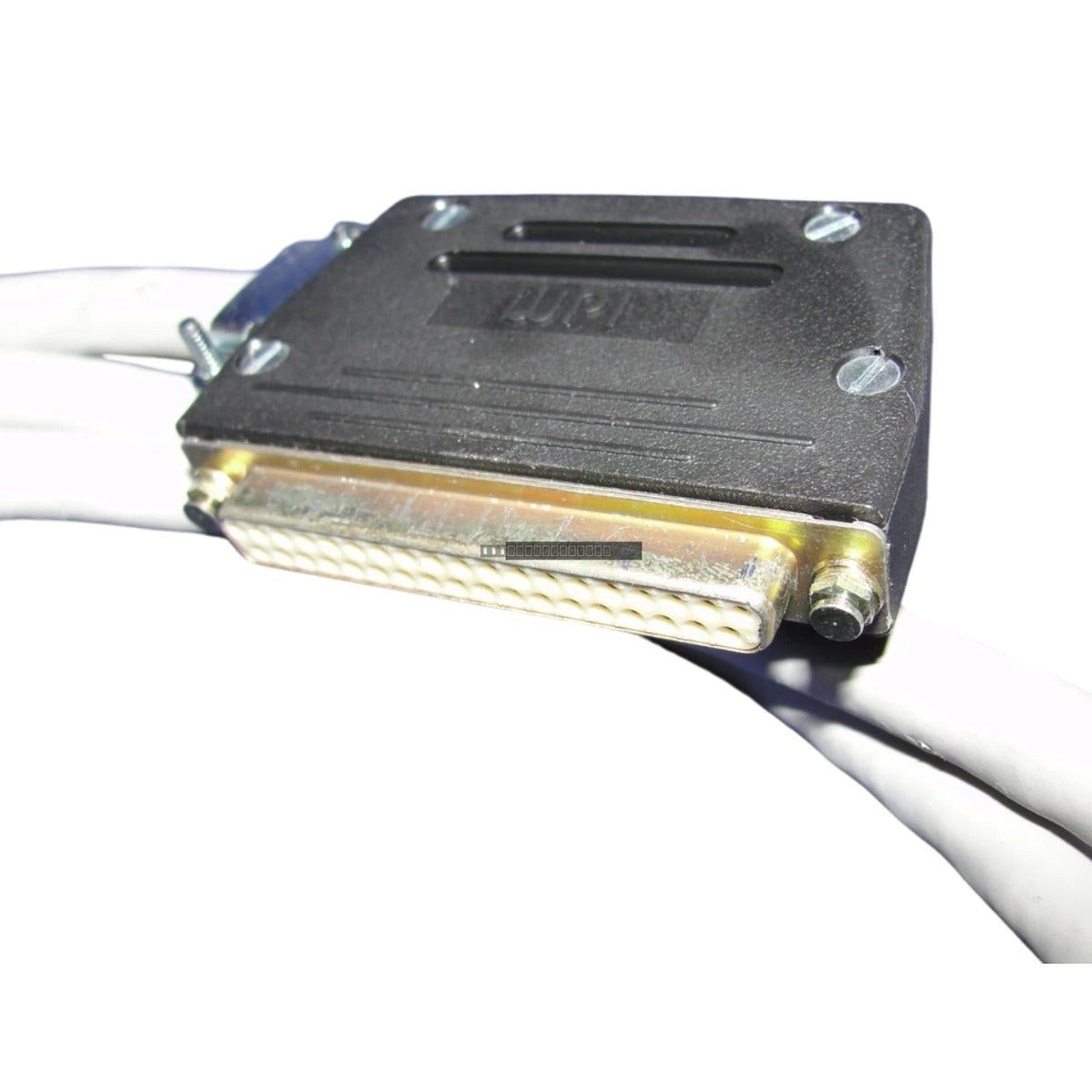

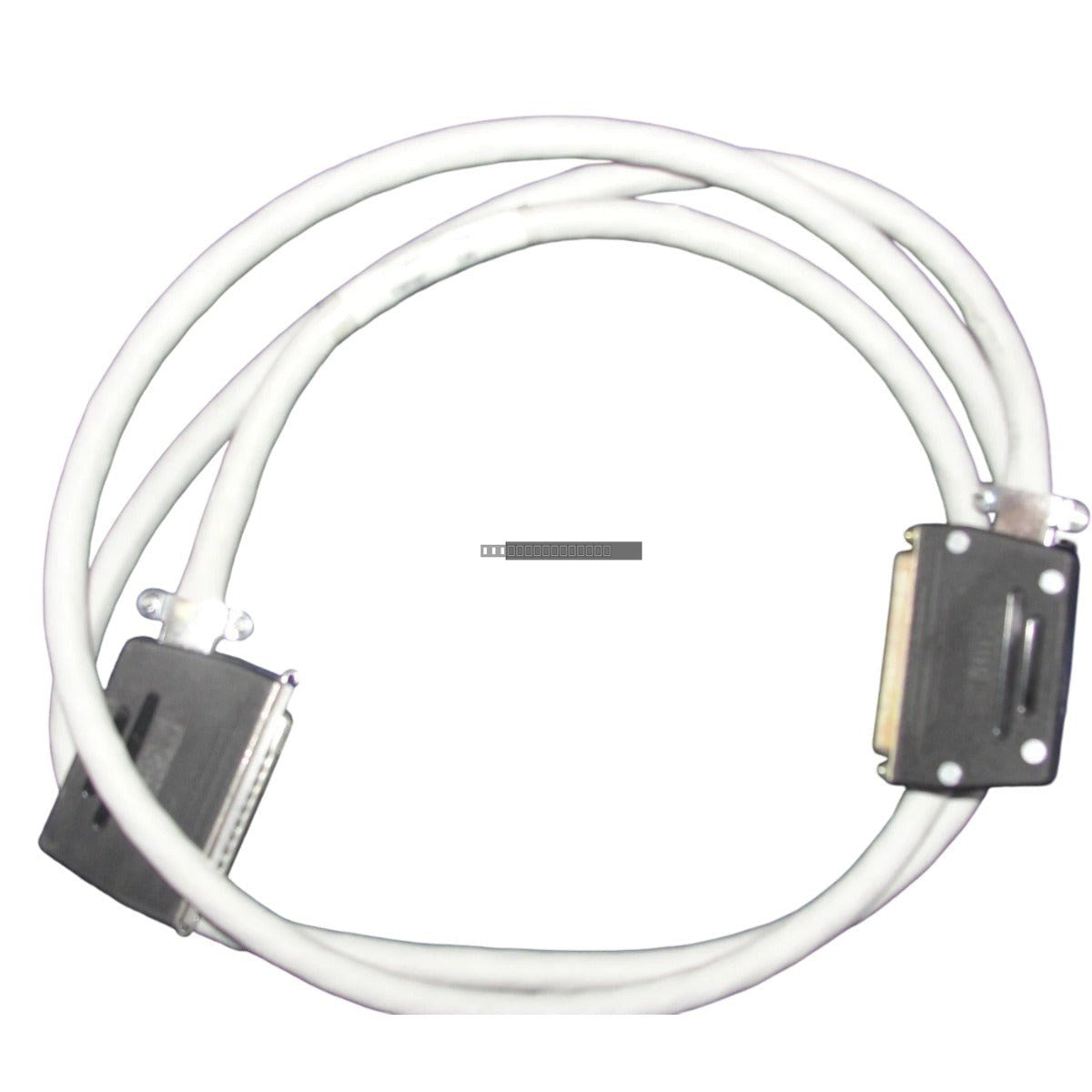

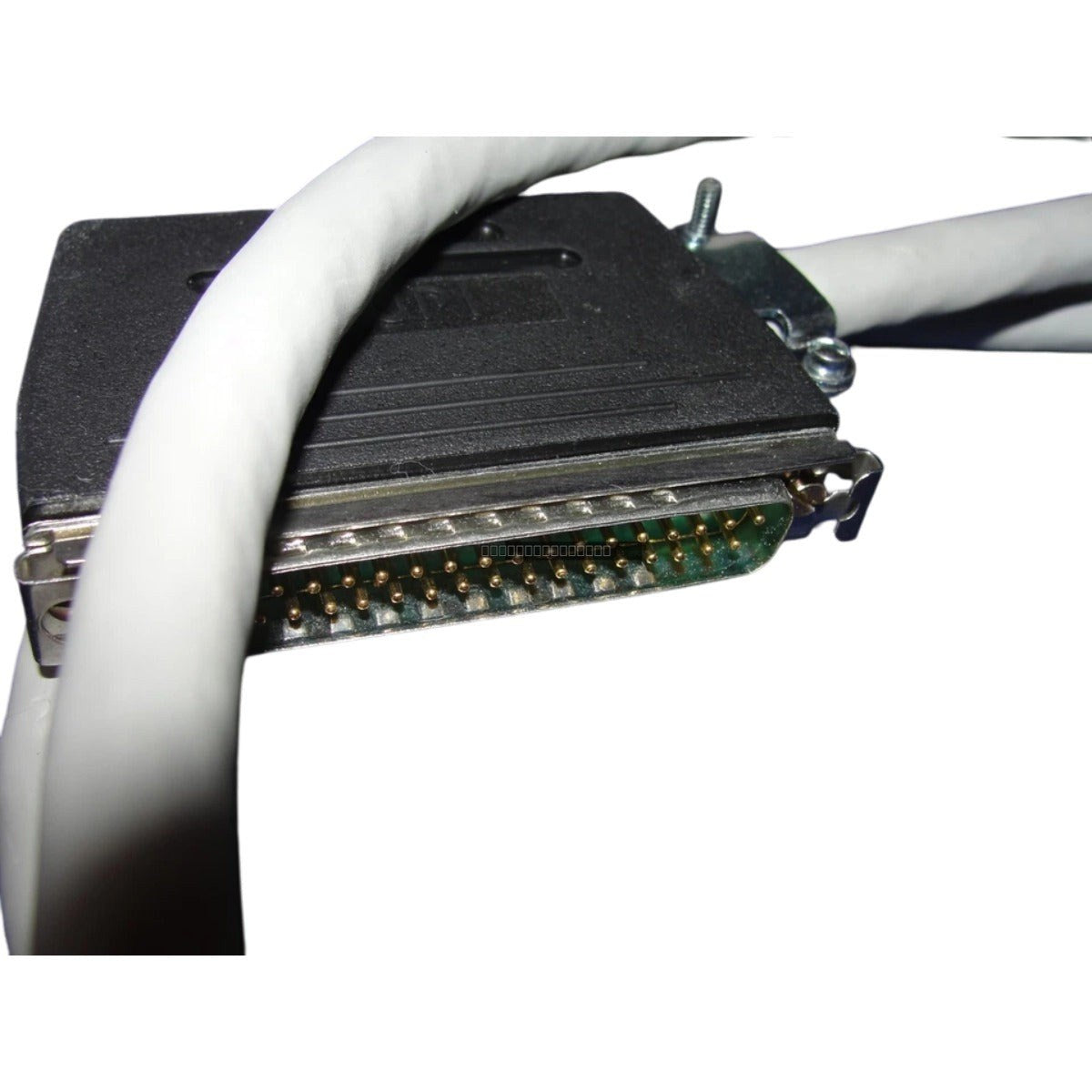

Woodward 5417-038 Netcon Analog Cable

Description

The Woodward 5417-038 is a 6-foot (1.83 m) Netcon low-density analog cable engineered for reliable signal transmission in industrial control environments. This cable assembly is specifically designed to interface analog signals between controller backplanes and field termination modules, ensuring high-fidelity data transfer for critical applications such as steam and gas turbine governors and fuel valve control loops. Its robust construction is tailored to mitigate signal noise and electromagnetic interference, which is vital for maintaining stable operation in power generation and petrochemical facilities.

Features

• Signal Integrity: Utilizes high-grade copper conductors with comprehensive braided shielding to minimize electromagnetic interference and signal degradation.
• Industrial Durability: Designed for high-vibration environments with secure mechanical locking connectors to ensure consistent electrical continuity.
• Optimized Length: The 6-foot configuration is ideal for intra-cabinet or short-distance inter-cabinet routing, reducing the potential for parasitic capacitance.
• Wide Thermal Range: Rated for operation in demanding environments ranging from -40 to 85 deg C.

Applications

This cable is a standard component in Woodward Netcon control systems. It is widely deployed in:

• Gas and Steam Turbine Control Systems
• Governor and Fuel Valve Modulation Loops
• Industrial Data Acquisition and Field Termination Assemblies
• Power Plant and Refinery Control Infrastructure

Installation Guidelines

• Handling: Ensure the cable is routed away from high-voltage power lines to prevent induced noise on the analog signal loops.
• Mounting: Verify that mechanical locking connectors are fully seated and engaged to prevent intermittent signal loss due to vibration.
• Cable Management: Use appropriate strain relief during installation to avoid tension on the connector pins.
• Safety: Always isolate control power before disconnecting or connecting signal cables to avoid potential electrical faults or damage to controller I/O ports.

Technical Specifications

FAQ

What is the primary function of the 5417-038 cable?

The 5417-038 is designed to transmit sensitive analog signals within Woodward Netcon control architectures, ensuring low-impedance connections between controllers and field instrumentation.

Is this cable suitable for high-vibration areas?

Yes, the cable features high-vibration resistant connectors with mechanical locking mechanisms designed specifically for the harsh operating conditions found in turbine rooms.

What is the recommended operating temperature for this cable?

The cable is rated for a wide operating temperature range of -40 to 85 deg C, making it suitable for most industrial climate-controlled and non-climate-controlled environments.
