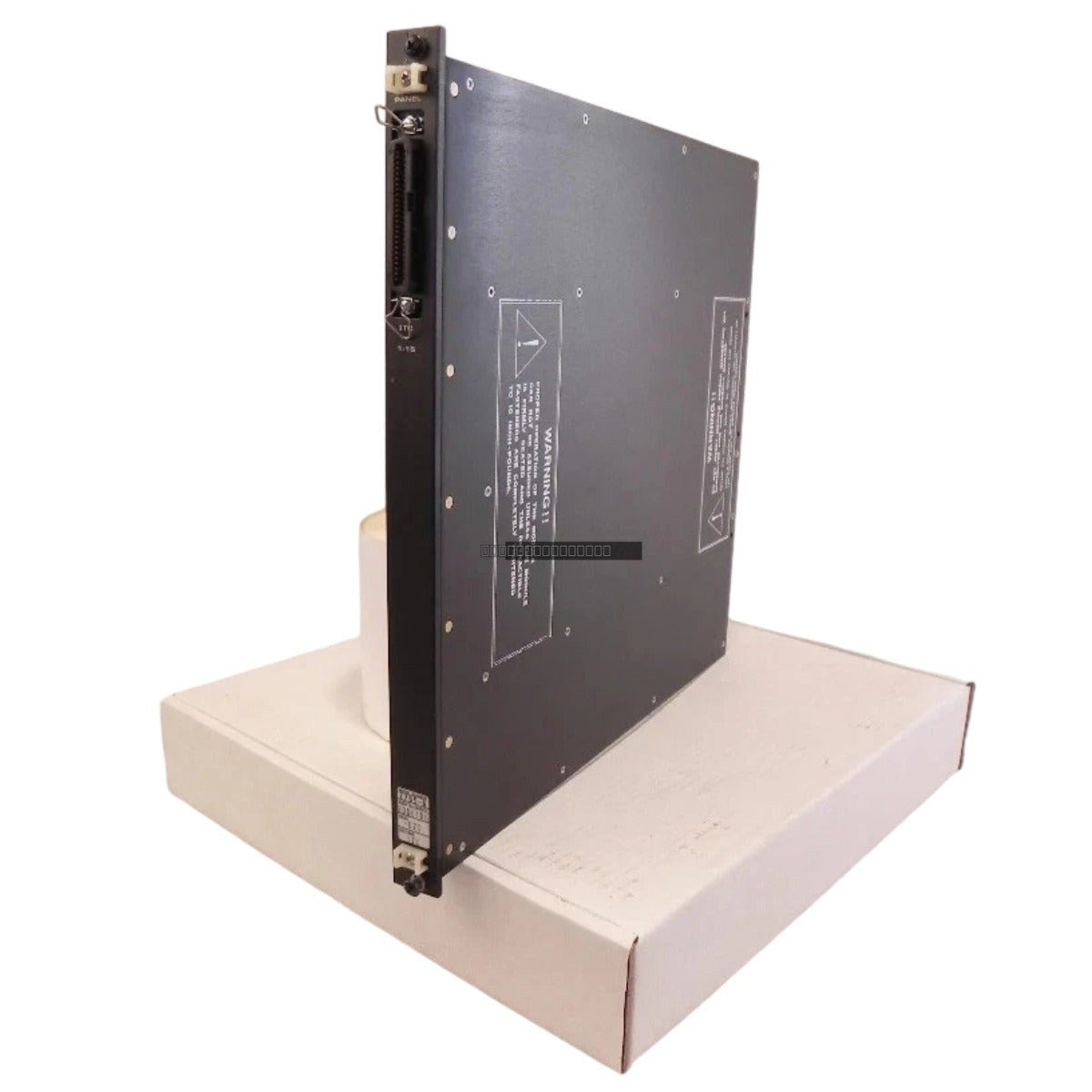

Triconex 2755-020 Digital Output Assembly

Description

The Triconex 2755-020 is a high-density digital output module engineered for safety-critical industrial control systems. Utilizing proven Triple Modular Redundant (TMR) architecture, this assembly provides fault-tolerant signal switching essential for environments where system integrity and continuous operation are non-negotiable. It is specifically designed to manage safety-instrumented devices in demanding sectors, including chemical processing, power generation, and offshore oil and gas production.

Features

• TMR Architecture: Implements triple modular redundancy to ensure high availability and eliminate single points of failure.
• High-Density Output: Features 16 independent output channels for efficient field device management.
• Galvanic Isolation: Integrated optical isolation on each channel protects internal logic from field-side electrical transients and interference.
• Real-Time Diagnostics: Continuous monitoring of output circuits to detect and report open-load or short-circuit conditions immediately.
• Hot-Swappable Design: Engineered for seamless integration with the Triconex fault-tolerant backplane, supporting online module replacement without system shutdown.

Applications

This module is typically deployed in Safety Instrumented Systems (SIS) requiring high-reliability switching for emergency shutdown valves, alarm actuators, and critical process interlocks. Its robust construction makes it suitable for heavy-duty industrial automation tasks where downtime must be minimized.

Technical Specifications

Installation Guidelines

• Handling: This is a static-sensitive electronic module. Use appropriate ESD grounding procedures during installation and maintenance.
• Backplane Seating: Ensure the module is fully seated and locked into the Triconex backplane to maintain proper electrical contact.
• Power Management: While the module supports online replacement, ensure that field power is properly managed according to site-specific safety protocols during maintenance.
• Wiring: Route field signal wiring away from high-power AC lines or high-EMI sources to maintain signal integrity.
• Environment: Ensure the control cabinet provides adequate ventilation to maintain the ambient operating temperature within the specified 0 to 60 degC range.

FAQ

Q: Does the 2755-020 support hot-swapping?
A: Yes, this module is designed for online replacement within the Triconex fault-tolerant backplane, allowing for maintenance without requiring a full system shutdown.

Q: What is the primary purpose of the TMR architecture in this module?
A: The Triple Modular Redundant architecture ensures that the system can continue to operate safely even if an internal component fails, significantly reducing the risk of nuisance trips and enhancing overall system reliability.
