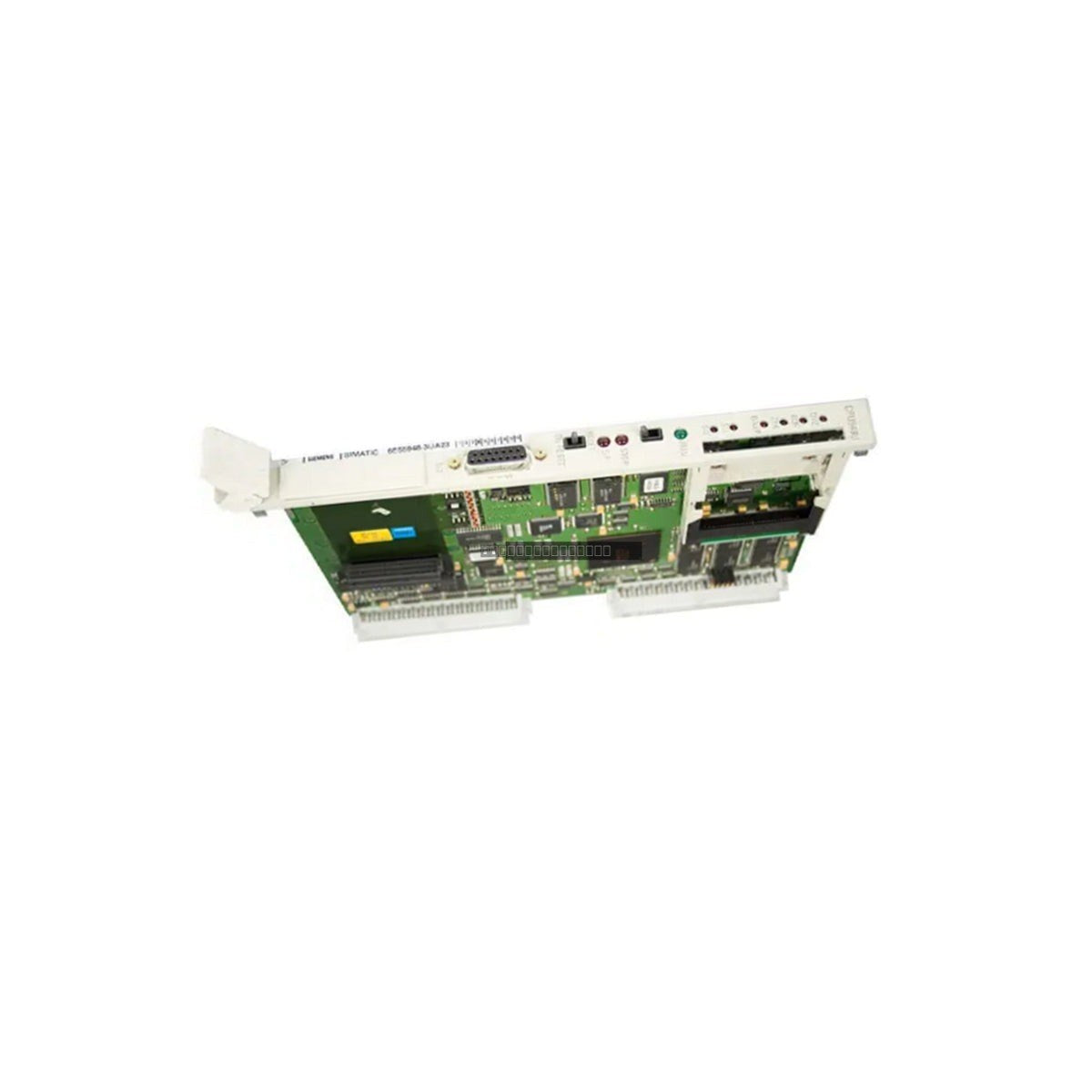

The Siemens 6ES5948-3UA23 is a robust central processing unit engineered for the high-performance Simatic S5-155U automation environment. Designed to manage demanding industrial control tasks, this module provides the computational power necessary for complex logic, math-intensive operations, and high-speed data handling. It is frequently deployed in critical infrastructure sectors, including power generation, oil and gas refining, and large-scale manufacturing, where consistent, deterministic execution is required to maintain operational uptime and safety.
Features
High-Performance Processing: Optimized for rapid execution of complex algorithms and boolean logic within the S5-155U architecture.
Memory Capacity: Features 1664 Kbytes of integrated memory to support extensive user program code, system data blocks, and memory register management.
Deterministic Control: Supports high-speed hardware interrupts for immediate response to critical process events.
System Integration: Interfaces directly with Simatic S5-155U backplanes for high-speed communication with local and remote I/O racks.
Legacy Compatibility: Serves as a direct replacement or upgrade for the legacy 6ES5948-3UA21 processor.
Applications
This CPU is designed for heavy-duty industrial automation applications, specifically those requiring high-speed multi-loop control and interlock management. It is ideal for environments where system reliability is paramount, such as thermal power plants, petrochemical processing units, and mining extraction systems.
Technical Specifications
Model
6ES5948-3UA23
Product Series
Siemens Simatic S5-155U
Memory
1664 Kbytes
Power Consumption
18 W (typical)
Operating Temperature
0 to 55 deg C
Compatibility
Simatic S5-155U Rack Systems
Installation Guidelines
Power Down: Always disconnect power from the S5-155U rack before installing or removing the CPU module to prevent electrical damage.
ESD Protection: Use a grounded wrist strap when handling the module to prevent electrostatic discharge damage to internal components.
Seating: Ensure the module is fully inserted and properly aligned with the backplane connectors before tightening the mounting screws.
Environment: Ensure the cabinet provides adequate ventilation to maintain operating temperatures below 55 deg C.
Grounding: Verify that the rack chassis is properly grounded to minimize EMI influence on the processor signals.
FAQ
Q: Is this module compatible with older S5-155U racks? A: Yes, the 6ES5948-3UA23 is designed to function within the Simatic S5-155U rack system and is a compatible replacement for the 6ES5948-3UA21.
Q: What is the primary memory capacity of this CPU? A: This unit is equipped with 1664 Kbytes of integrated memory.
